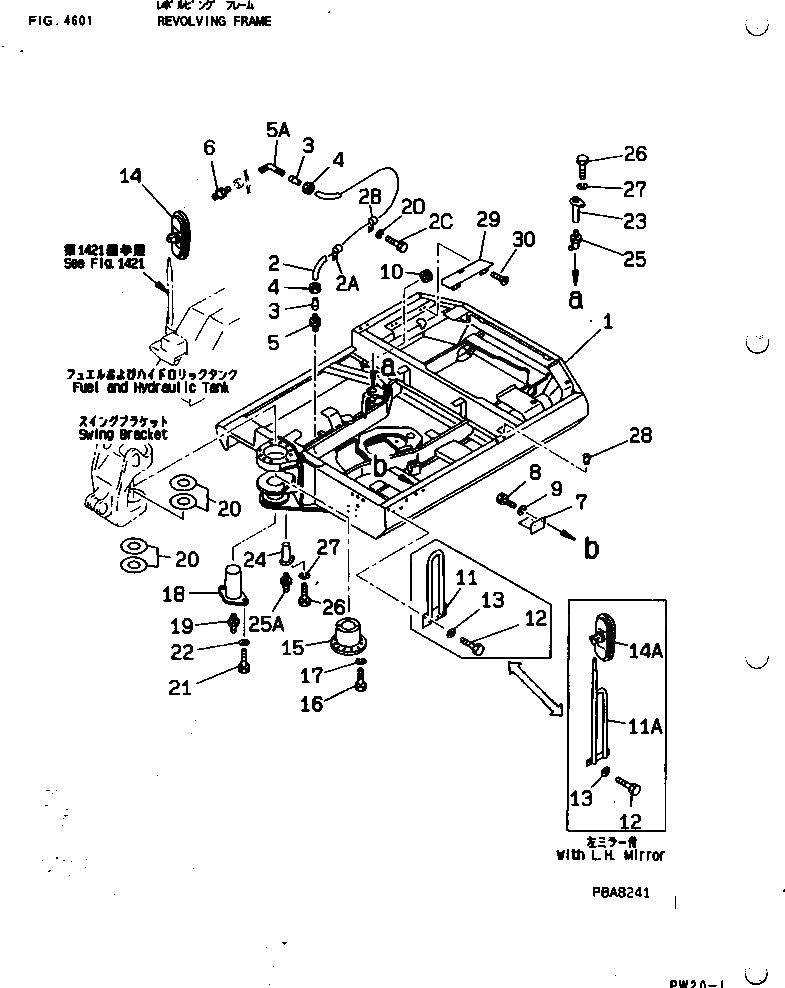

Запчасти Komatsu PW20-1 ОСНОВНАЯ РАМА СИСТЕМА УПРАВЛЕНИЯ¤ ОСНОВНАЯ РАМА И ШАССИ

1

21E-46-11113

FRAME,REVOLVING (FOR JAPAN)

1

21E-46-11111

FRAME,REVOLVING (FOR JAPAN)

1

21E-46-11412

,REVOLVING (EXCEPT JAPAN)

1

21E-46-11410

,REVOLVING (EXCEPT JAPAN)

2

20T-54-26760

TUBE

3

07831-00411

SLEEVE

4

07832-00410

NUT

5

20R-46-11160

CONNECTOR

6

07020-00675

FITTING,GREASE

7

21E-46-11130

BRACKET

8

01010-51225

BOLT

9

01602-21236

WASHER,SPRING

10

08037-03614

GROMMET

11

21E-54-11341

BRACKET,(WITHOUT CAB)

11

21E-54-11340

BRACKET,(WITHOUT CAB)

11

21E-54-11710

BRACKET,(L.H.) (WITHOUT CAB)

11A

07049-01012

PLUG,(WITH CAB)

12

01010-50820

BOLT,(WITHOUT CAB)

12

01010-50820

BOLT,(WITHOUT CAB)

13

01602-20825

WASHER,SPRING (WITHOUT CAB)

13

01602-20825

WASHER,SPRING (WITHOUT CAB)

14

01643-30823

WASHER,(WITHOUT CAB)

14

01643-30823

WASHER,(WITHOUT CAB)

15

08174-13116

MIRROR,(R.H.)

15A

08174-13116

MIRROR,(L.H.)

16

20S-70-21440

SHAFT

17

01010-51235

BOLT

18

01602-21236

WASHER,SPRING

19

21E-70-11211

PIN

20

07020-00000

FITTING,GREASE

21

20S-70-21460

SPACER, 0.5MM

21

20S-70-21470

SPACER, 1.0MM

22

01010-51635

BOLT

23

01643-31645

WASHER

24

21E-70-11190

PIN

25

20S-70-21330

PIN

26

07020-00675

FITTING,GREASE

27

01010-51225

BOLT

28

01602-21236

WASHER,SPRING

29

07049-01012

PLUG

30

21E-54-12120

COVER

31

01225-40310

SCREW
