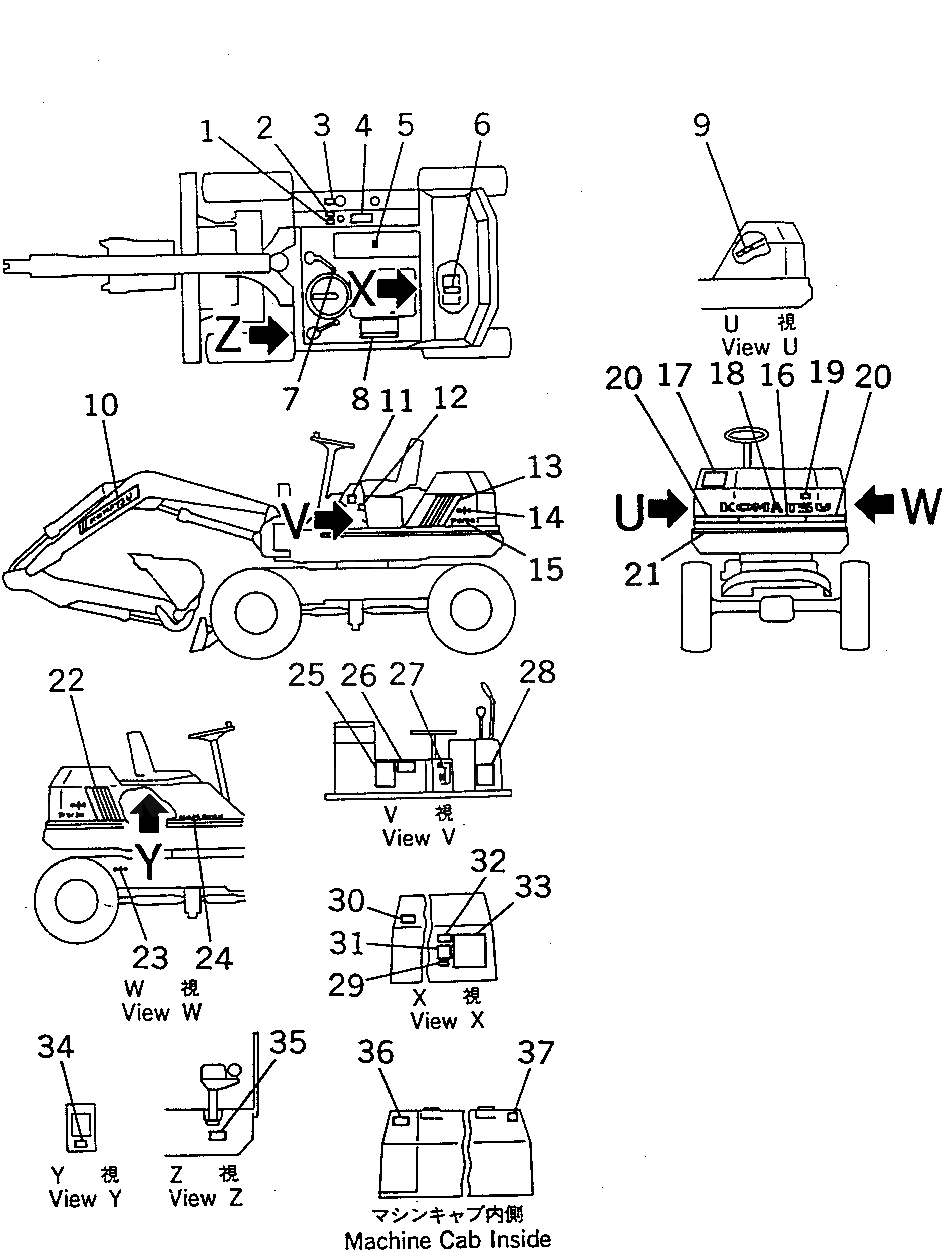

Запчасти Komatsu PW20-1 МАРКИРОВКА (АНГЛ.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09669-00003

PLATE, CAUTION

2

09653-03000

PLATE, SAFETY

3

09669-00002

PLATE, CAUTION

4

21F-98-11160

PLATE, OPERATING

5

09683-30060

PLATE, OPERATING

6

20S-98-12220

PLATE, INSTRUCTION,AIR CLEANER

7

21F-98-12220

PLATE, OPERATING

7

21E-98-11290

PLATE, OPERATING

8

21E-98-11131

PLATE, OPERATING

9

20T-98-21240

PLATE, OPERATING

10

20S-98-21151

PLATE, MARK

11

21F-98-11360

PLATE, CAUTION

12

09131-03000

PLATE, SAFETY

13

21F-98-11170

LINE, STRIPE

13

20S-98-21180

PLATE, STRIPE

14

09694-50160

PLATE, MARK

15

21E-98-11110

PLATE, MARK

16

21F-98-11190

LINE, STRIPE

16

20S-98-21360

PLATE, STRIPE

16

21F-98-11410

LINE, STRIPE,(FOR VANDALISM PROTECTION)

17

20T-98-22130

PLATE, SAFETY

18

09690-51000

PLATE, MARK

19

09667-03000

PLATE, SAFETY

20

21F-98-11210

LINE, STRIPE

20

20S-98-21370

PLATE, STRIPE

21

20S-98-21410

PLATE, STRIPE

22

21F-98-11180

LINE, STRIPE

22

20S-98-21190

PLATE, STRIPE

23

21K-00-22170

PLATE, MARK

24

09690-40315

PLATE, MARK

25

21F-98-11230

PLATE, CAUTION

26

21F-98-11370

PLATE, CAUTION

27

21E-98-11380

PLATE, OPERATING

28

21F-98-11270

PLATE, CAUTION

29

362-98-12230

PLATE, CAUTION

30

21F-98-11240

PLATE, CAUTION

31

21F-98-11250

PLATE, CAUTION

32

09173-03000

PLATE, SAFETY

33

21F-98-11150

CHART, OIL

34

103-98-21351

PLATE, CAUTION

34

103-98-21350

PLATE, CAUTION

35

09601-00835

PLATE, NAME

35

04418-13060

SCREW

36

20S-98-12230

PLATE, CAUTION

37

09668-03000

PLATE, SAFETY
