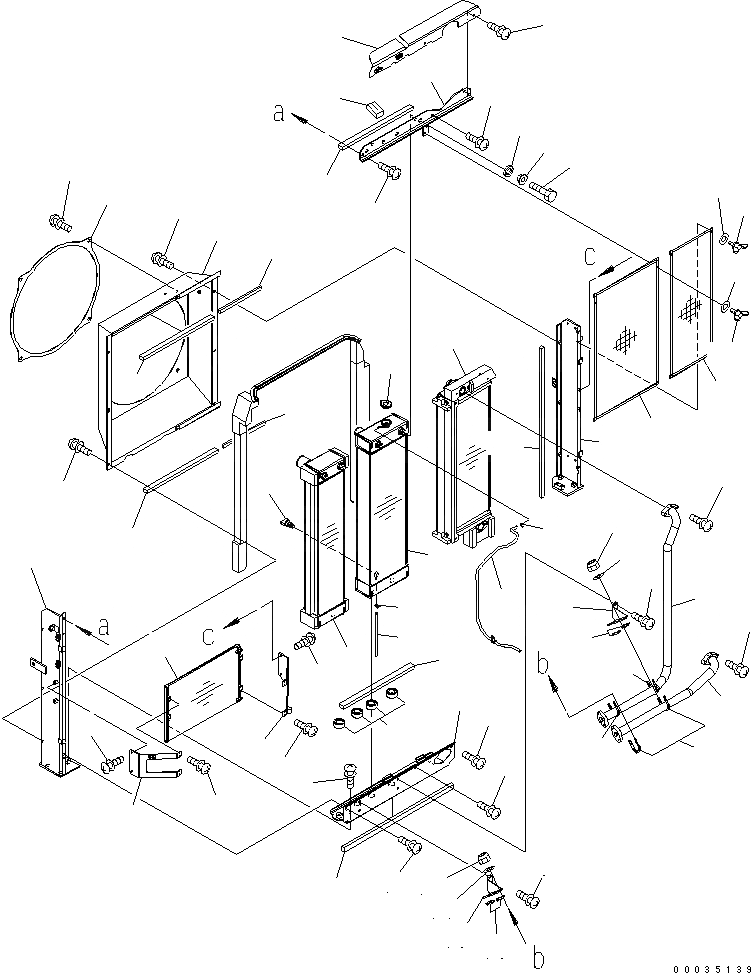

Запчасти Komatsu PW180-7K ОХЛАЖД-Е (РАДИАТОР ВНУТР. ЧАСТИ) СИСТЕМА ОХЛАЖДЕНИЯ

|1

20J-03-11101

COOLER ASSEMBLY

1

203-03-41410

HOSE

2

205-03-62660

PLUG

3

206-03-43340

CLIP

4

208-979-7520

CONDENSER ASSEMBLY

5

01010-81025

BOLT

6

01024-80616

BOLT

7

01024-81020

BOLT

8

01024-81025

BOLT

9

01024-81225

BOLT

10

01024-81245

BOLT

11

01434-10616

BOLT¤ WING

12

01597-01009

NUT

13

01643-30623

WASHER

14

01643-31032

WASHER

15

07283-34354

CLIP

16

07283-54353

SEAT

17

20J-03-11110

RADIATOR ASSEMBLY

18

20J-03-11160

WASHER

19

20J-03-11170

COLLAR

20

20J-03-11181

FRAME,L.H.

21

20J-03-11191

FRAME,R.H.

22

20J-03-11211

FRAME,BASE

23

20J-03-11220

FRAME,TOP

24

20J-03-11231

PLATE

25

20J-03-11240

CUSHION

26

20J-03-11250

SHEET

27

20J-03-11260

SHEET

28

20J-03-11270

SHEET

29

20J-03-11280

SHEET

30

20J-03-11290

SHEET

31

20J-03-11310

SHEET

32

20J-03-11330

OIL COOLER ASSEMBLY

33

20J-03-11460

NET (WELDED)

34

20J-03-11470

NET (WELDED)

35

20J-03-11480

COVER

36

20J-03-11490

PLATE

37

20J-03-11511

PIPE,INLET

38

20J-03-11521

PIPE,OUTLET

39

20J-03-11530

BRACKET

40

20J-03-11540

BRACKET

41

20J-03-11550

AFTER COOLER

42

20J-03-11560

HOSE

43

20J-03-11810

BRACKET

44

20Y-03-11330

CLIP

45

20Y-03-22110

CAP
