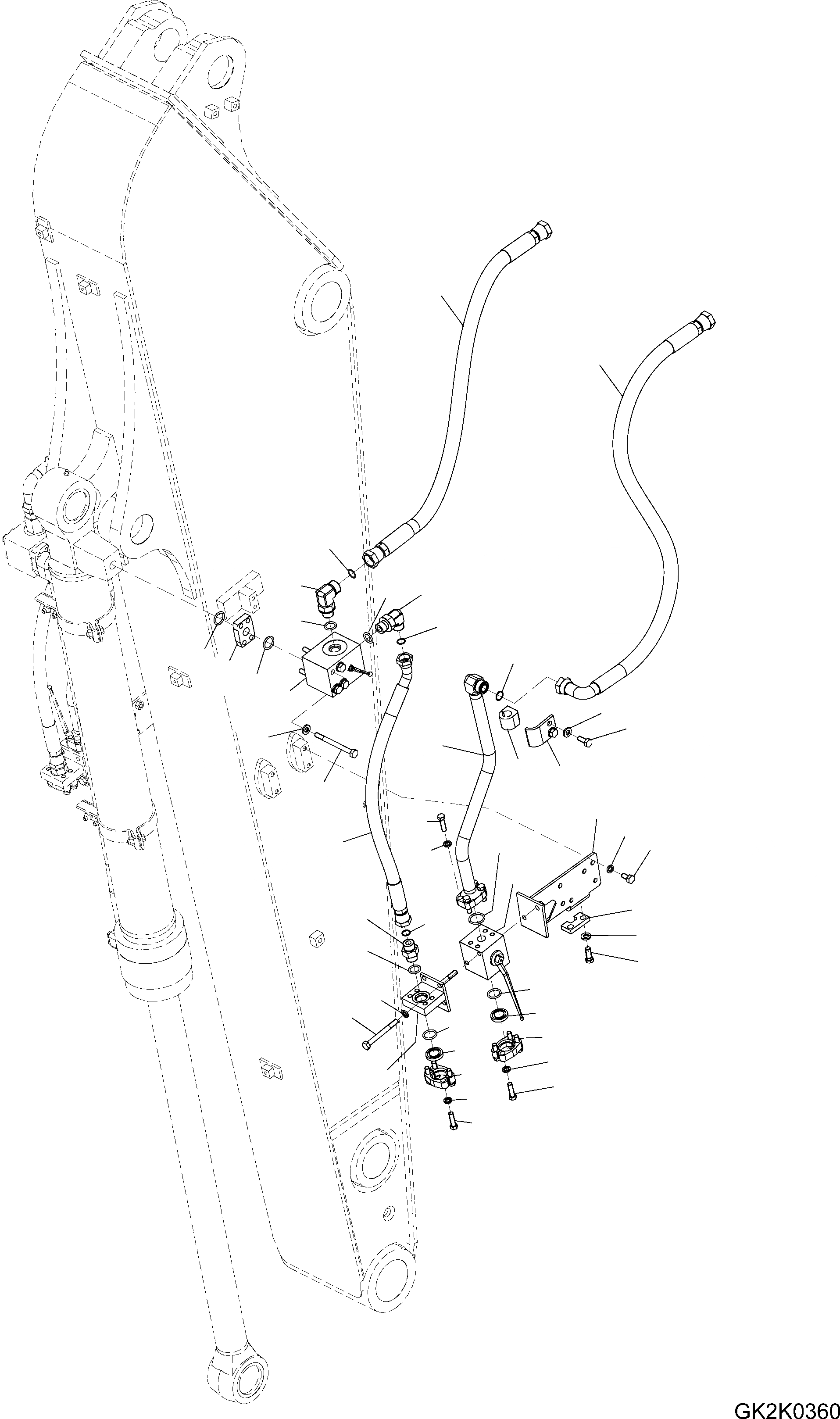

Запчасти Komatsu PW180-7E0 ГИДРОЛИНИЯ - РУКОЯТЬ (.9M) (LHS) T РАБОЧЕЕ ОБОРУДОВАНИЕ

1

20J-70-11620

SPACER

2

07000-13030

O-RING

3

20K-970-3121

VALVE, LHS

4

01011-81015

BOLT

5

01643-31032

WASHER

6

07002-12434

O-RING

7

02782-10628

ELBOW

8

02896-11018

O-RING

9

02777-20614

HOSE

10

20J-70-H1180

BRACKET, WITHOUT AUTO GREASE

11

01010-81020

BOLT

12

01643-51032

WASHER

13

20G-70-33780

BRACKET

14

20G-70-33890

VALVE, LHS

15

01010-81095

BOLT

16

01643-51032

WASHER

17

07378-10600

HEAD

18

07000-13025

O-RING

19

07371-30640

FLANGE

20

07372-21035

BOLT

21

01643-51032

WASHER

22

20J-70-11591

TUBE

23

07000-13030

O-RING

24

07372-21035

BOLT

25

01643-51032

WASHER

26

02896-11018

O-RING

27

21K-62-35270

CUSHION

28

02778-20616

HOSE

29

203-70-53391

PLATE

30

01010-81025

BOLT

31

01643-31032

WASHER

32

02781-00522

UNION

33

07002-12434

O-RING

34

02896-11015

O-RING

35

02779-00507

HOSE

36

02782-10522

ELBOW

37

20J-S95-H140

BRACKET, WITHOUT AUTO GREASE

37

20J-S95-H540

BRACKET, WITH AUTO GREASE

38

01016-51030

BOLT

39

01643-31032

WASHER
