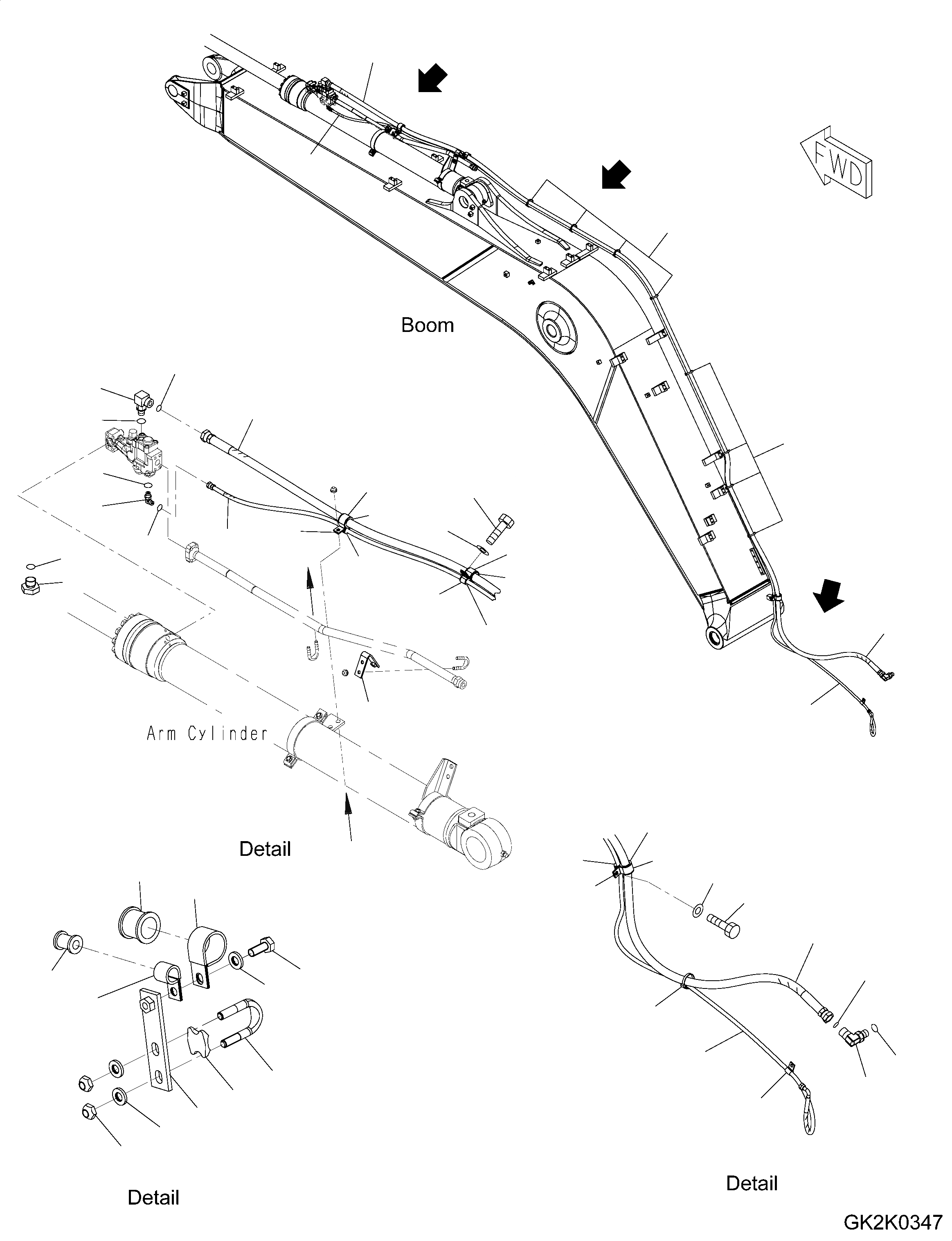

Запчасти Komatsu PW180-7E0 ЦИЛИНДР РУКОЯТИ(КЛАПАН БЕЗОПАСНОСТИ ТРУБЫ) (ONE-ЧАСТИ СТРЕЛА) T РАБОЧЕЕ ОБОРУДОВАНИЕ

1

206-62-73440

ELBOW

2

02896-11018

O-RING, (FOR FACE SEAL)

3

07002-12034

O-RING

4

11Y-62-12160

ELBOW

5

02896-11008

O-RING, (FOR FACE SEAL)

6

07002-11423

O-RING

7

02762-00662

HOSE

8

02763-00267

HOSE

9

08034-20834

BAND, (BLACK)

10

04434-53411

CLIP

11

07095-20627

CUSHION, HOSE

12

04434-51710

CLIP

13

07095-20211

CUSHION, HOSE

14

21K-62-74391

BRACKET

15

04434-53411

CLIP

16

07095-20627

CUSHION, HOSE

17

04434-51710

CLIP

18

07095-20211

CUSHION, HOSE

19

01010-81025

BOLT

20

01643-31032

WASHER

21

04434-53411

CLIP

22

01010-81025

BOLT

23

01643-31032

WASHER

24

04434-51210

CLIP

25

04434-51710

CLIP

26

07095-20627

CUSHION, HOSE

27

07095-20211

CUSHION, HOSE

28

02896-11018

O-RING, (FOR FACE SEAL)

29

02782-10628

ELBOW, (WITH SEAL)

30

07002-12434

O-RING

31

07040-11409

PLUG

32

07002-11423

O-RING

33

20J-70-12470

BRACKET

34

07283-32746

CLIP

35

07283-52737

SEAT

36

01643-31032

WASHER

37

01597-01009

NUT

38

04434-51710

CLIP

39

07095-20211

CUSHION, HOSE

40

04434-53411

CLIP

41

07095-20627

CUSHION, HOSE

42

01010-81025

BOLT

43

01643-31032

WASHER
