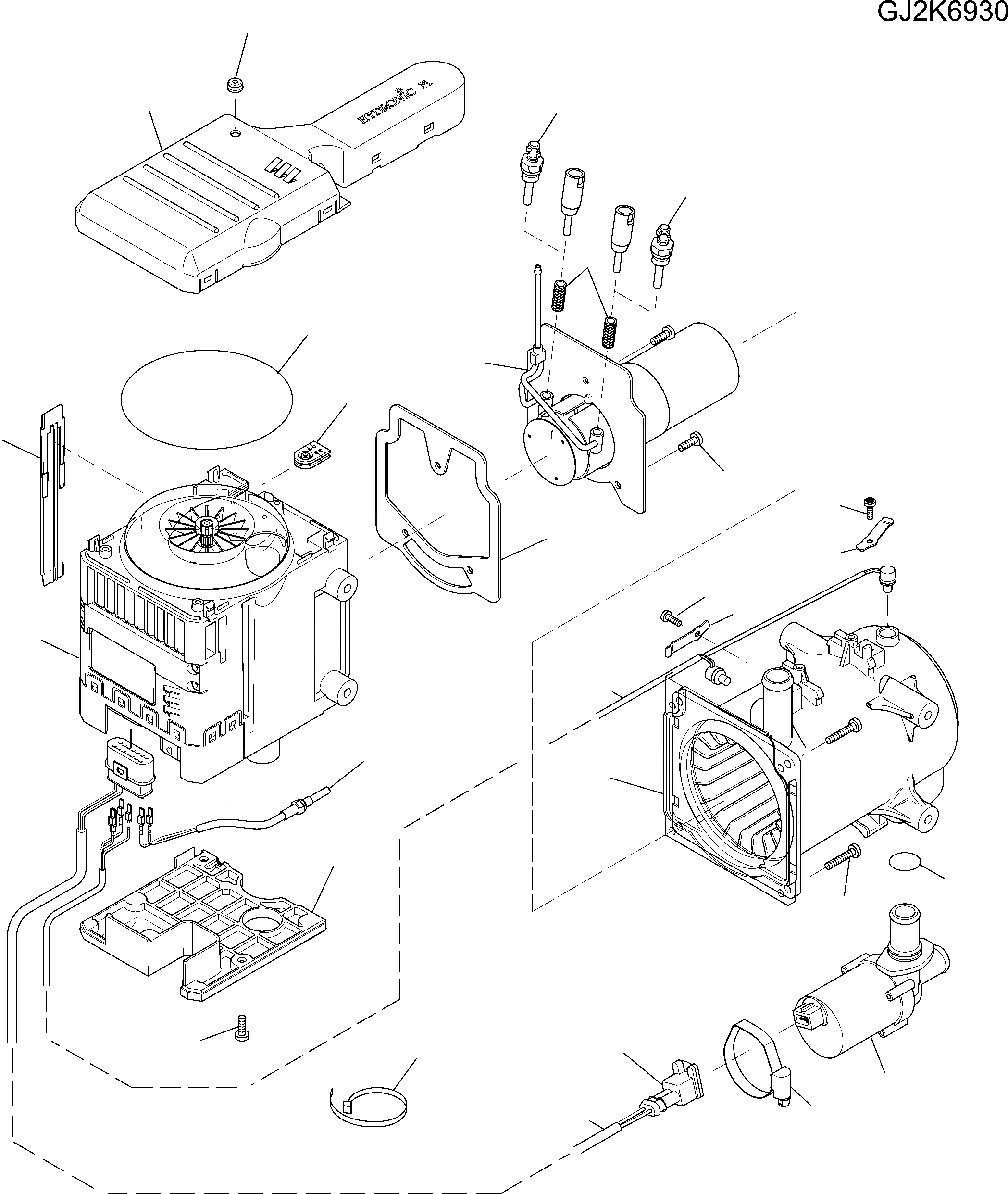

Запчасти Komatsu PW180-7E0 DIESEL ОБОГРЕВАТЕЛЬ. - ОБОГРЕВАТЕЛЬ. ASSEMBLY K OPERATORS ОБСТАНОВКА И СИСТЕМА УПРАВЛЕНИЯ

|$1

20E-04-H0P00

HEATER ASSEMBLY

1

20E-04-H0P01

CONTROLLER

2

20E-04-H0P11

COVER

3

20E-04-H0P14

O-RING

4

20E-04-H0P15

SLEEVE

5

20E-04-H0P05

SENSOR, FLAME

6

20E-04-H0P06

PLUG, GLOW

7

20E-04-H0P07

WIRING HARNESS

8

20E-04-H0P08

SENSOR, TEMPERATURE

9

20E-04-H0P09

COVER, BOTTOM

10

20E-04-H0P10

COVER, TOP

11

20E-04-H0P02

BURNER

12

20E-04-H0P12

SEAL

13

20E-04-H0P13

O-RING

14

20E-04-H0P03

CASING

15

20E-04-H0P04

PUMP, WATER

16

20E-04-H0P16

SLEEVE

17

20E-04-H0P17

SPRING, PRESSURE

18

20E-04-H0P18

LINING PLUG

19

20E-04-H0P19

CLIP

20

20E-04-H0P20

SCREW

21

20E-04-H0P21

SCREW

22

20E-04-H0P22

SCREW

23

20E-04-H0P23

BAND
