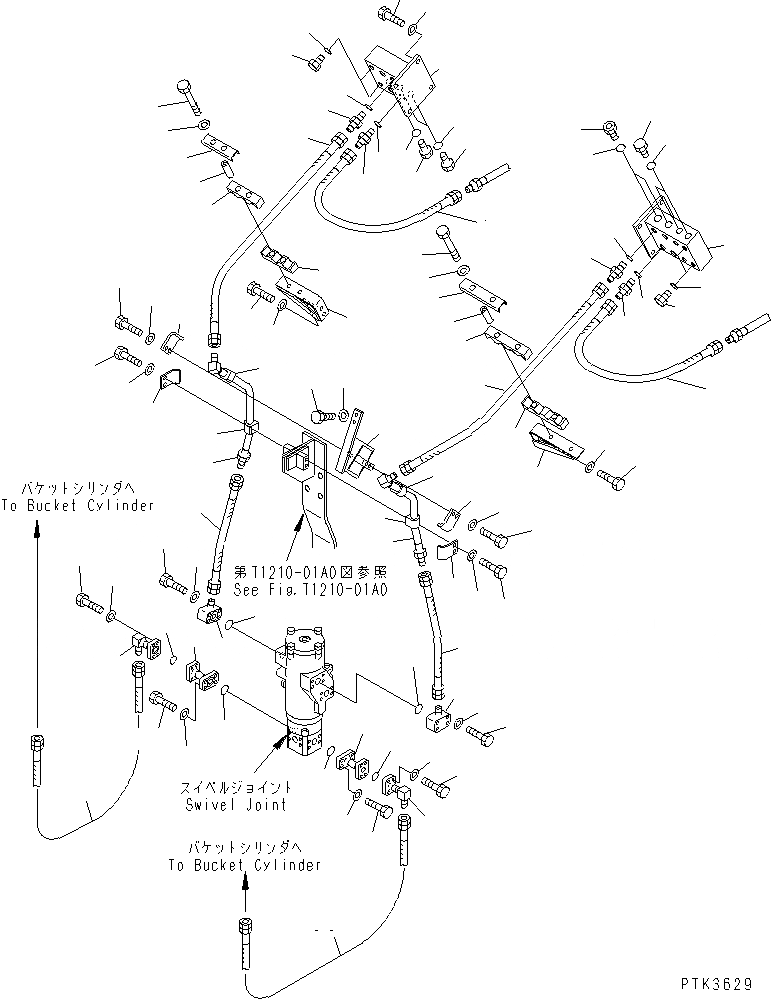

Запчасти Komatsu PW170ES-6K ГИДРОЛИНИЯ (ЦИЛИНДР КОВША) (ДЛЯ ВРАЩАЮЩ. РУКОЯТИ) T РАБОЧЕЕ ОБОРУДОВАНИЕ

1

07096-20509

HOSE

2

20G-966-K780

BLOCK,(R.H.)

3

20G-966-K590

BLOCK,(L.H.)

4

01010-81245

BOLT

5

01643-31232

WASHER

6

07002-12434

O-RING

7

07230-20522

UNION

8

07040-12412

PLUG

9

07002-12034

O-RING

10

07040-12012

PLUG

11

203-943-K120

HOSE

12

20G-966-K390

HOSE

13

20G-966-K640

TUBE ASSEMBLY

14

07096-20503

HOSE

15

20G-62-K2140

ELBOW

16

07000-13030

O-RING

17

07372-21055

BOLT

18

01643-51032

WASHER

19

20G-966-K620

TUBE ASSEMBLY

20

20G-966-K360

HOSE

21

203-70-53391

PLATE

22

203-62-58810

CUSHION

23

01010-81025

BOLT

24

01643-31032

WASHER

25

203-70-53391

PLATE

26

203-62-58810

CUSHION

27

01010-81025

BOLT

28

01643-31032

WASHER

29

20G-966-K760

BRACKET,L.H.

30

20G-966-K680

CLAMP

31

20G-966-K670

SPACER

32

20G-966-K720

CLAMP

33

01010-81080

BOLT

34

01643-31032

WASHER

35

01010-81230

BOLT

36

01643-31232

WASHER

37

20G-966-K750

BRACKET,R.H.

38

20G-966-K690

CLAMP

39

20G-966-K670

SPACER

40

20G-966-K730

CLAMP

41

01010-81080

BOLT

42

01643-31032

WASHER

43

01010-81230

BOLT

44

01643-31232

WASHER

45

20G-966-K810

BRACKET

46

01010-81025

BOLT

47

01643-31032

WASHER

48

20G-966-K520

TUBE ASSEMBLY

49

07000-13030

O-RING

50

20G-966-K510

TUBE ASSEMBLY

51

07000-13025

O-RING

52

01010-80830

BOLT

53

01643-50823

WASHER

54

07372-21030

BOLT

55

01643-51032

WASHER

56

07096-20510

HOSE
