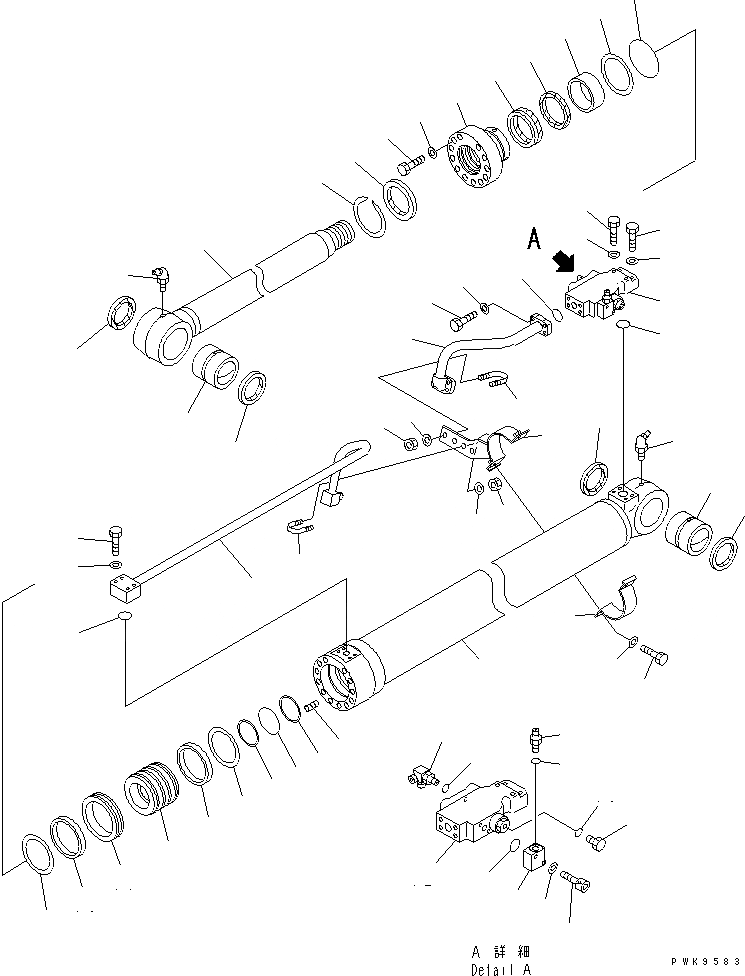

Запчасти Komatsu PW170ES-6K ЦИЛИНДР СТРЕЛЫ(ЛЕВ.)(№K-) T РАБОЧЕЕ ОБОРУДОВАНИЕ

G1

20G-63-K2800

CYLINDER ASSEMBLY,BOOM

|1

21P-63-03200

CYLINDER ASSEMBLY

1

21P-63-52140

CYLINDER

2

21P-63-52120

ROD,PISTON

3

707-27-11920

HEAD

4

707-36-11770

PISTON

5

01310-01216

SCREW

6

07000-15070

O-RING

7

707-35-90360

RING

8

01010-81675

BOLT

9

01643-51645

WASHER

10

144-63-94170

SEAL,DUST

11

07179-13089

RING,SNAP

12

707-51-75030

PACKING,ROD

13

707-51-75630

RING,BUFFER

14

07000-15100

O-RING

15

707-35-91130

RING,BACK-UP

16

707-52-90500

BUSHING

17

707-44-11180

RING,PISTON

18

707-39-11110

RING,WEAR

19

707-44-11911

RING

20

707-76-70610

BUSHING

21

07145-00070

SEAL,DUST

22

707-76-70230

BUSHING

23

07020-00675

FITTING,GREASE

24

707-88-97750

BAND

25

21P-63-K2121

BAND

26

01010-81025

BOLT

27

01643-31032

WASHER

28

21P-62-K2562

TUBE

29

07000-13025

O-RING

30

01010-80850

BOLT

31

01643-50823

WASHER

32

21P-62-K2541

TUBE

33

07000-13030

O-RING

34

07372-21035

BOLT

35

01643-51032

WASHER

36

07283-22236

CLIP

37

01599-01011

NUT

38

01643-31032

WASHER

39

07283-22738

CLIP

40

01599-01011

NUT

41

01643-31032

WASHER

42

702-21-08021

PILOT VALVE ASSEMBLY

43

07000-13030

O-RING

44

07372-21055

BOLT

45

01643-51032

WASHER

46

07372-21060

BOLT

47

01643-51032

WASHER

48

07040-11409

PLUG

49

07002-01423

O-RING

50

20E-62-K2981

TEE

51

07002-12034

O-RING

52

20G-60-K3210

FLANGE

53

07000-02021

O-RING

54

01252-70635

BOLT

55

01641-20608

WASHER

56

07230-20210

UNION

57

07002-01423

O-RING
