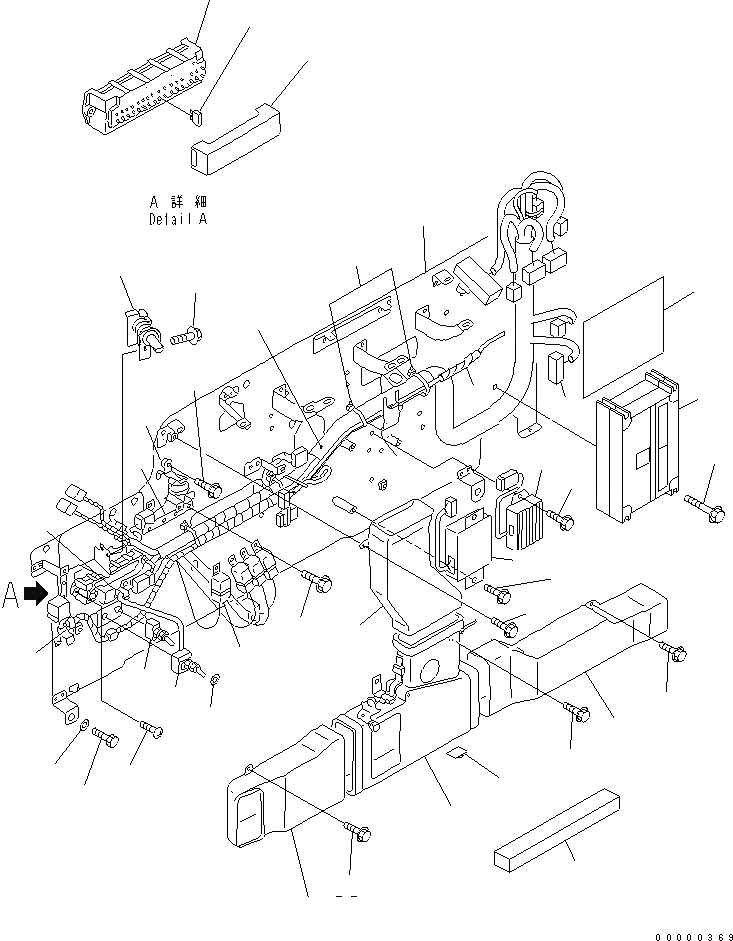

Запчасти Komatsu PW170ES-6K КАБИНА (ОСНОВ.) K КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

207-06-61510

BASE

2

20E-06-K1330

BRACKET

3

01641-21223

WASHER

4

569-06-61960

RELAY

5

01435-00610

BOLT

6

20G-06-K1515

WIRING HARNESS

|6

20G-06-K1514

WIRING HARNESS

|6

20G-06-K1513

WIRING HARNESS

|6

20G-06-K1512

WIRING HARNESS

7

20Y-06-24130

SWITCH,SWING REDUNDANCY

8

283-06-16110

BOX,FUSE

9

195-Z11-2290

COVER,FUSE

10

283-06-16190

FUSE, 10A

|10

205-06-73180

FUSE, 15A

|10

22W-06-13160

FUSE, 20A

|10

201-06-61240

FUSE, 30A

11

203-06-56520

SWITCH,PUMP REDUNDANCY

12

20Y-06-21460

CLIP

13

20Y-06-23960

CLIP

14

01023-10625

SCREW

15

20Y-979-2130

BOX ASSEMBLY

16

01435-01016

BOLT

17

20Y-979-2221

DUCT

18

01435-00610

BOLT

19

20Y-979-2231

DUCT

20

01435-00610

BOLT

21

20Y-979-2242

DUCT

22

01435-00610

BOLT

23

20Y-06-17220

RESISTOR

24

01435-00820

BOLT

25

203-06-56230

BUZZER ASSEMBLY

26

01435-00610

BOLT

27

7834-24-3005

CONTROLLER

|27

7834-24-3003

CONTROLLER

|27

7834-24-3002

CONTROLLER

|27

7834-24-3001

CONTROLLER

|27

7834-24-3000

CONTROLLER

28

01435-00880

BOLT

29

20Y-06-23640

CONTROLLER

30

01435-20630

BOLT

|30

01435-00630

BOLT

31

20Y-06-24220

SHEET

32

08051-00801

CLIP

33

20Y-06-23521

LOCK

34

01435-00820

BOLT

35

08017-30701

CONDUIT

36

01010-81020

BOLT

37

01643-31032

WASHER

38

20G-06-K2390

SWITCH

|38

20G-06-K2270

CONNECTOR

|38

20G-06-K2210

CONNECTOR

39

20E-54-K4580

SHEET
