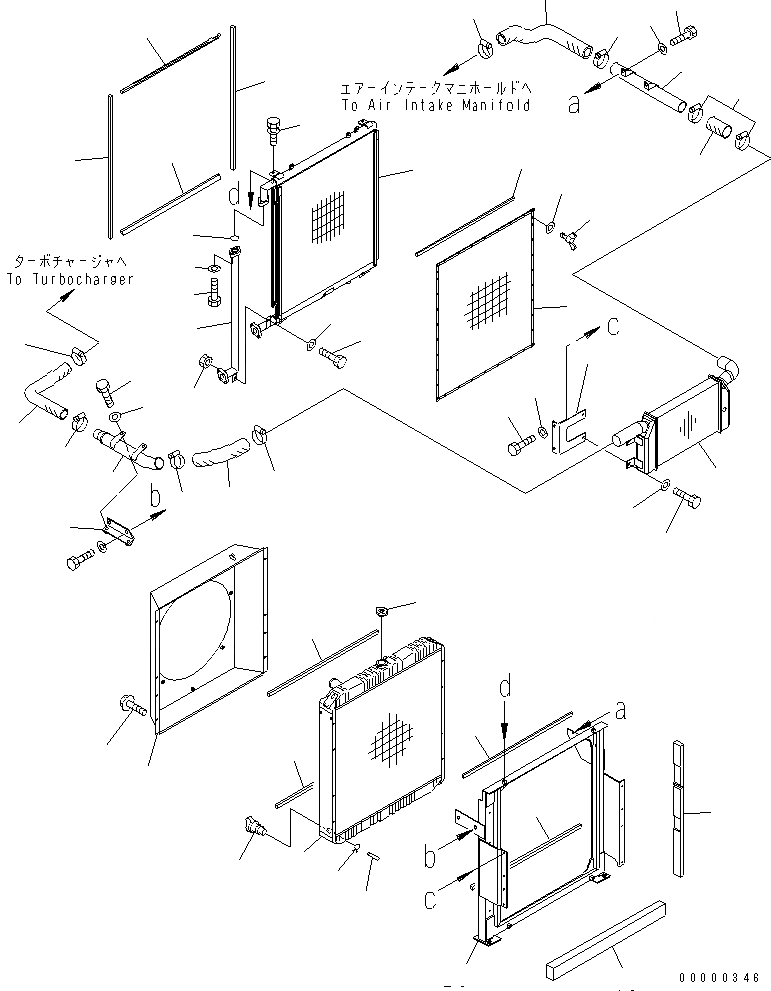

Запчасти Komatsu PW170ES-6K ОХЛАЖД-Е (РАДИАТОР) (ЖЕСТК. МАСЛООХЛАДИТЕЛЬ)(№K-) C СИСТЕМА ОХЛАЖДЕНИЯ

1

01010-81220

BOLT

2

01010-81225

BOLT

3

01643-31232

WASHER

4

07289-00055

CLAMP

5

07289-00070

CLAMP

6

20G-01-K3130

HOSE

7

20G-01-K3140

HOSE

8

20G-01-K3150

HOSE

9

20G-01-K3161

TUBE

10

20G-01-K3170

TUBE

11

20G-01-K3210

BRACKET

|12

20G-03-K1101

OIL COOLER ASSEMBLY

12

01010-81020

BOLT

13

01010-81025

BOLT

14

01010-81040

BOLT

15

01024-81030

BOLT

15A

01643-81032

WASHER

16

01434-10616

BOLT, WING

17

01435-20816

BOLT

18

01580-11008

NUT

19

01643-30823

WASHER

20

01643-31032

WASHER

21

07000-13035

O-RING

22

203-03-41411

HOSE

23

205-03-62660

PLUG

24

205-03-71280

CAP ASSEMBLY

25

20G-03-K1380

SHROUD

26

20G-03-K1530

BRACKET

27

20G-03-K1540

COOLER

28

20G-03-K1551

FRAME

29

20G-03-K1560

TUBE

30

20G-03-K1610

SHEET

31

20G-03-K1620

RADIATOR ASSEMBLY

32

20G-03-K1630

SHEET

33

20Y-03-11330

CLIP

34

20Y-03-31140

NET

35

20Y-03-31290

SEAL

36

20Y-03-31310

SEAL

37

22U-03-21740

SHEET

38

6738-61-4110

AFTER COOLER ASSEMBLY

39

6738-11-4720

HOSE

40

20G-03-K1170

SHEET

41

20G-03-K1450

SHEET
