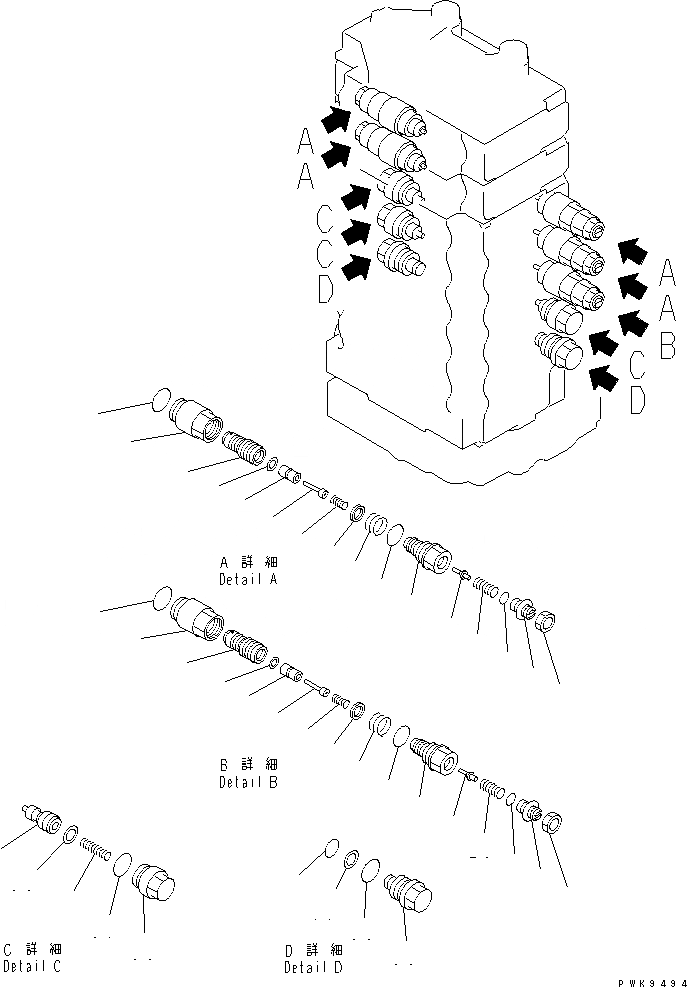

Запчасти Komatsu PW170ES-6K ОСНОВН. КЛАПАН (ВНУТР. ЧАСТИ) (8/) H ГИДРАВЛИКА

|1

723-38-15600

VALVE ASSEMBLY

|1

723-38-15302

VALVE ASSEMBLY

|1

709-70-74302

VALVE ASSEMBLY,SUCTION AND SAFETY

1

SLEEVE

2

SLEEVE

3

POPPET

4

PISTON

5

PLUG

6

POPPET

7

SCREW

8

SPRING

9

SPRING

10

SPRING

11

SEAL

12

SEAL

13

709-25-11390

O-RING

14

O-RING

15

O-RING

16

NUT

|17

709-70-74402

VALVE ASSEMBLY,SUCTION AND SAFETY

17

SLEEVE

18

SLEEVE

19

POPPET

20

PISTON

21

PLUG

22

POPPET

23

SCREW

24

SPRING

25

SPRING

26

SPRING

27

SEAL

28

SEAL

29

709-25-11390

O-RING

30

O-RING

31

O-RING

32

NUT

|33

723-40-85100

VALVE ASSEMBLY,SUCTION

33

SLEEVE

34

VALVE

35

SPRING

36

SEAL

37

709-25-11390

O-RING

38

709-74-91510

PLUG

39

709-25-11390

O-RING

40

07000-11009

O-RING

41

07001-01009

RING
