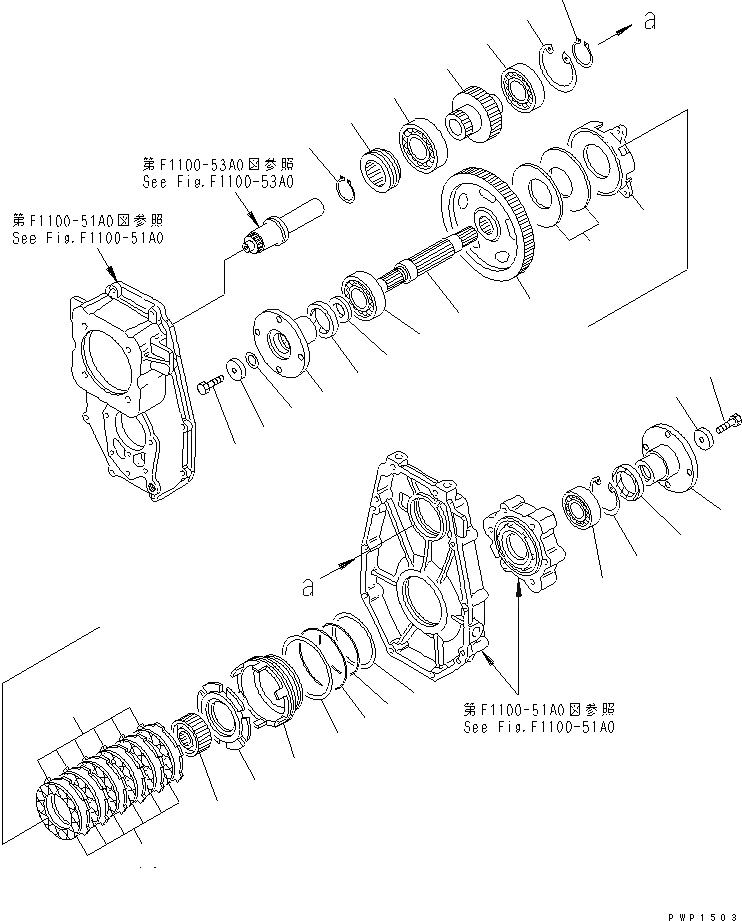

Запчасти Komatsu PW170ES-6K-KA ТРАНСМИССИЯ (ВНУТР. ЧАСТИ) (/) СИЛОВАЯ ПЕРЕДАЧА

|1

20G-14-K1200

TRANSMISSION ASS'Y

|1

20G-14-K3102

TRANSMISSION ASS'Y

|1

20G-14-K3101

TRANSMISSION ASS'Y

1

20E-14-K1330

RING,SNAP

2

20E-14-K1350

RING,SNAP

3

20E-14-K1360

BEARING

4

20E-14-K1880

SUPPORT

5

20E-14-K1830

SPRING,DISK

6

20E-14-K1470

RING,BACK-UP

|6

20E-14-K1471

RING,BACK-UP

7

20E-14-K1450

O-RING

8

20E-14-K1290

O-RING

9

20E-14-K1480

RING,BACK-UP

10

20E-14-K1380

BEARING

11

20E-14-K1920

PISTON,BRAKE

12

20E-14-K1890

PLATE,PRESSURE

13

20E-14-K1760

HUB,BRAKE

14

20E-14-K1620

BOLT

15

20E-14-K1630

WASHER

16

20E-14-K1860

FLANGE

17

20E-14-K1590

SEAL,OIL

18

20E-14-K1340

RING,SNAP

19

20E-14-K1680

DISC,BRAKE

20

20E-14-K1690

PLATE

21

20E-14-K1650

SHIM¤ 0.05MM

|21

20E-14-K1660

SHIM¤ 0.10MM

|21

20E-14-K1670

SHIM¤ 0.20MM

22

20E-14-K1780

WASHER,THRUST

23

20E-14-K1390

BEARING

24

SHAFT,OUTPUT

25

20E-14-K1720

GEAR

26

COLLAR

27

20G-14-K3140

RING

28

BEARING

29

GEAR
