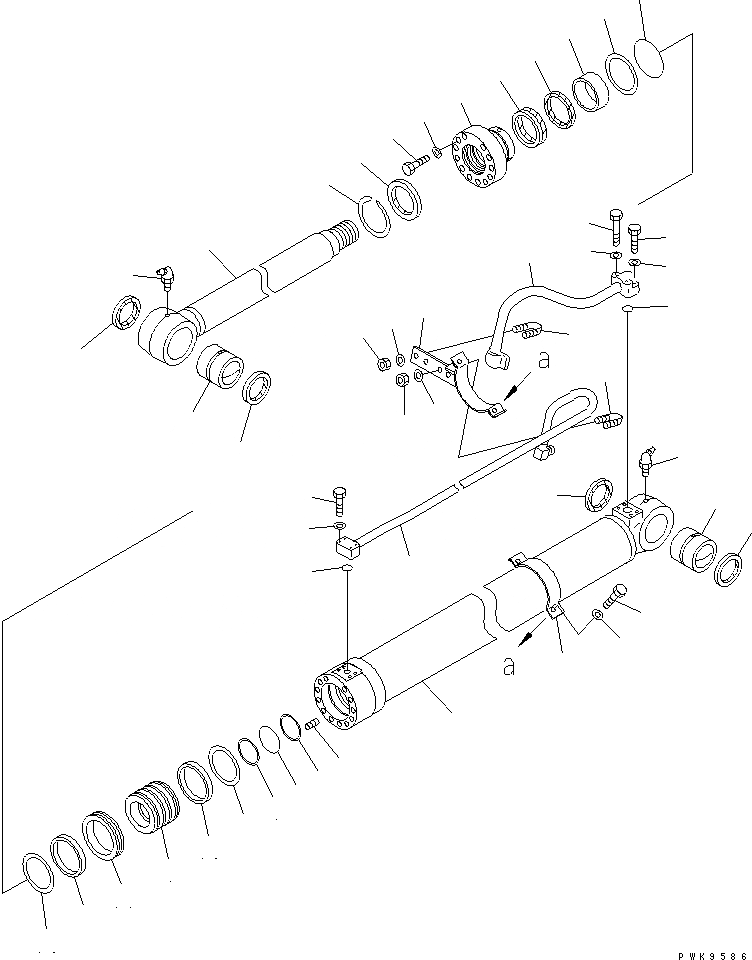

Запчасти Komatsu PW170ES-6K-KA ЦИЛИНДР СТРЕЛЫ(ЛЕВ.) (KA СПЕЦ-Я.)(№K-K999) РАБОЧЕЕ ОБОРУДОВАНИЕ

G1

21P-63-K1603

CYLINDER ASS'Y,BOOM

|G1

21P-63-K1602

CYLINDER ASS'Y,BOOM

|1

21P-63-03200

CYLINDER ASS'Y

|1

21P-63-03100

CYLINDER ASS'Y

1

21P-63-52140

CYLINDER

2

21P-63-52120

ROD,PISTON

3

707-27-11920

HEAD

4

707-36-11770

PISTON

5

01310-01216

SCREW

6

07000-15070

O-RING

7

707-35-90360

RING

8

01010-81675

BOLT

9

01643-51645

WASHER

10

144-63-94170

SEAL,DUST

11

07179-13089

RING,SNAP

12

707-51-75030

PACKING,ROD

13

707-51-75630

RING,BUFFER

14

07000-15100

O-RING

15

707-35-91130

RING,BACK-UP

16

707-52-90500

BUSHING

17

707-44-11180

RING,PISTON

18

707-39-11110

RING,WEAR

19

707-44-11911

RING

20

707-76-70610

BUSHING

|20

707-76-70330

BUSHING

21

07145-00070

SEAL,DUST

22

707-76-70230

BUSHING

23

07020-00675

FITTING,GREASE

24

707-88-97750

BAND

25

707-88-95840

BRACKET

26

01010-81025

BOLT

27

01643-31032

WASHER

28

21P-62-K3060

TUBE

29

07000-13025

O-RING

30

01010-80850

BOLT

31

01643-50823

WASHER

32

21K-63-54180

TUBE

33

07000-13030

O-RING

34

07372-21045

BOLT

35

07372-21060

BOLT

36

01643-51032

WASHER

37

07283-22236

CLIP

38

01599-01011

NUT

39

01643-31032

WASHER

40

07283-22738

CLIP

41

01599-01011

NUT

42

01643-31032

WASHER
