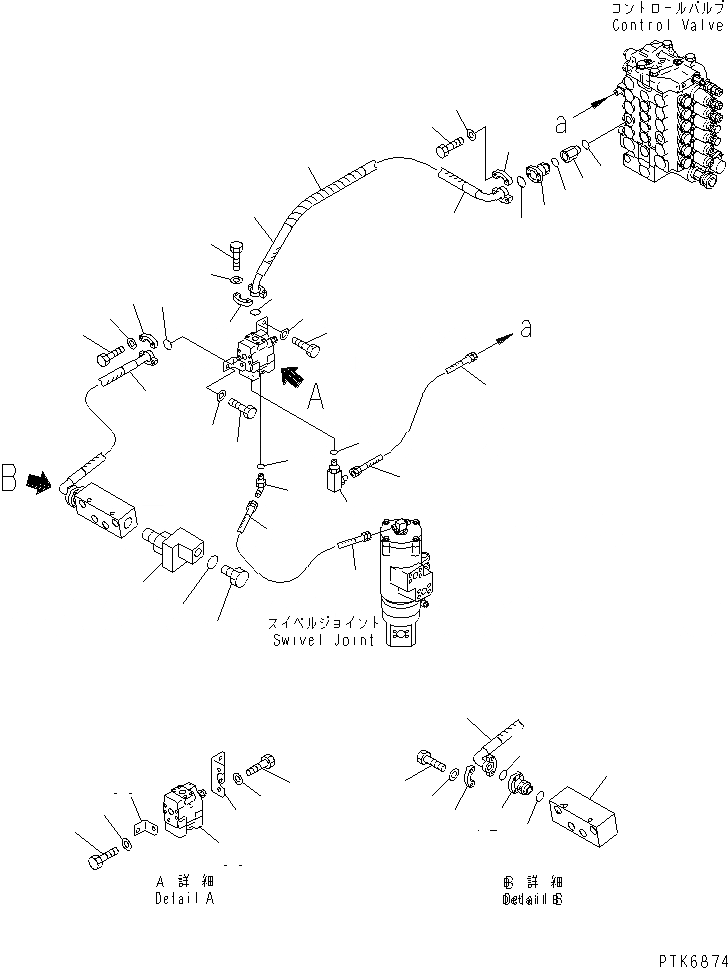

Запчасти Komatsu PW170ES-6K-KA ПРЕДОТВРАЩ. СМЕЩЕНИЯ (ОСНОВНАЯ РАМА)(KA СПЕЦ-Я.)(№K-K999) ГИДРАВЛИКА

1

21P-62-K2961

HOSE

|1

21P-62-K2960

HOSE

2

203-62-58650

COVER

3

20G-62-K6130

ADAPTER

4

21K-62-34310

FLANGE

5

07002-12434

O-RING

6

07000-13025

O-RING

7

07371-30640

FLANGE,SPLIT

8

07000-13032

O-RING

9

07371-31049

FLANGE,SPLIT

10

07372-21035

BOLT

11

01643-51032

WASHER

12

20G-62-K8770

SPACER

13

07000-13025

O-RING

14

21P-62-K4580

HOSE

15

07000-13025

O-RING

16

07371-30640

FLANGE,SPLIT

17

07372-21035

BOLT

18

01010-51080

BOLT

19

01643-51032

WASHER

20

07102-20211

HOSE

21

07235-10212

ELBOW

|21

201-62-64320

ELBOW

22

07002-01423

O-RING

|22

07002-11423

O-RING

23

07102-20409

HOSE

24

07235-10422

ELBOW

25

07002-02034

O-RING

|25

07002-12034

O-RING

26

21P-62-K2311

BLOCK

27

20Y-62-15660

ADAPTER

28

07040-12012

PLUG

29

07002-12034

O-RING

30

702-21-04220

VALVE ASS'Y

31

01010-81020

BOLT

32

01643-31032

WASHER

33

21P-62-K3110

PLATE

34

21P-62-K3120

PLATE

35

01010-81220

BOLT

36

01643-31232

WASHER
