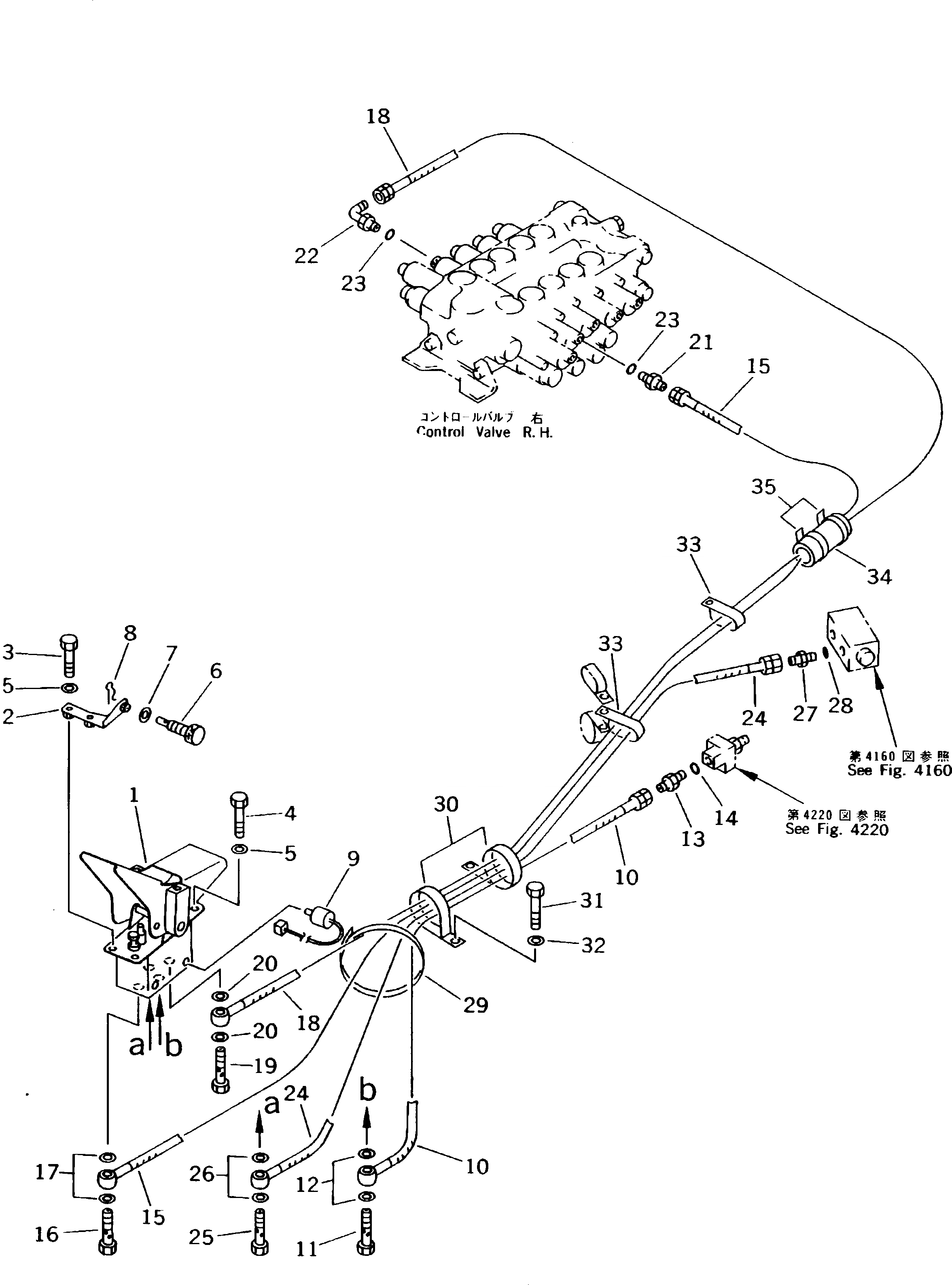

Запчасти Komatsu PW170-5K ГИДРОЛИНИЯ (2-Я СТРЕЛА ЛИНИЯ КЛАПАНА PPC) СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

1

20G-60-K1462

PPC VALVE ASS'Y,(SEE FIG.6240)

|1

20Y-62-K3950

SEAL KIT,(SEE FIG.6240)

|1

20Y-62-K3960

FILTER KIT,(SEE FIG.6240)

|1

20Y-62-K3970

GUIDE AND PUSHER,(SEE FIG.6240)

2

20G-54-K1672

BRACKET

3

01010-50840

BOLT

4

01010-50820

BOLT

5

01643-30823

WASHER

6

20G-54-K1691

SCREW,MECHANICAL LOCK

7

01641-21223

WASHER

8

04052-01253

PIN,SNAP

9

203-06-56121

SWITCH

10

20G-62-K2780

HOSE

11

20Y-970-K180

BOLT

12

20G-62-K2510

WASHER

13

07230-20210

UNION

14

07002-01423

O-RING

15

20G-62-K2831

HOSE

16

20Y-970-K180

BOLT

17

20G-62-K2510

WASHER

18

20G-62-K2850

HOSE

19

20Y-970-K180

BOLT

20

20G-62-K2510

WASHER

21

07230-20210

UNION

22

07235-10210

ELBOW

23

07002-01423

O-RING

24

20G-62-K2811

HOSE

25

20Y-970-K180

BOLT

26

20G-62-K2510

WASHER

27

07230-20210

UNION

28

07002-01423

O-RING

29

08034-00823

BAND

30

203-62-58470

CLIP

31

01010-51020

BOLT

32

01643-31032

WASHER

33

203-62-58480

CLIP

34

203-62-41150

COVER

35

08034-00823

BAND
