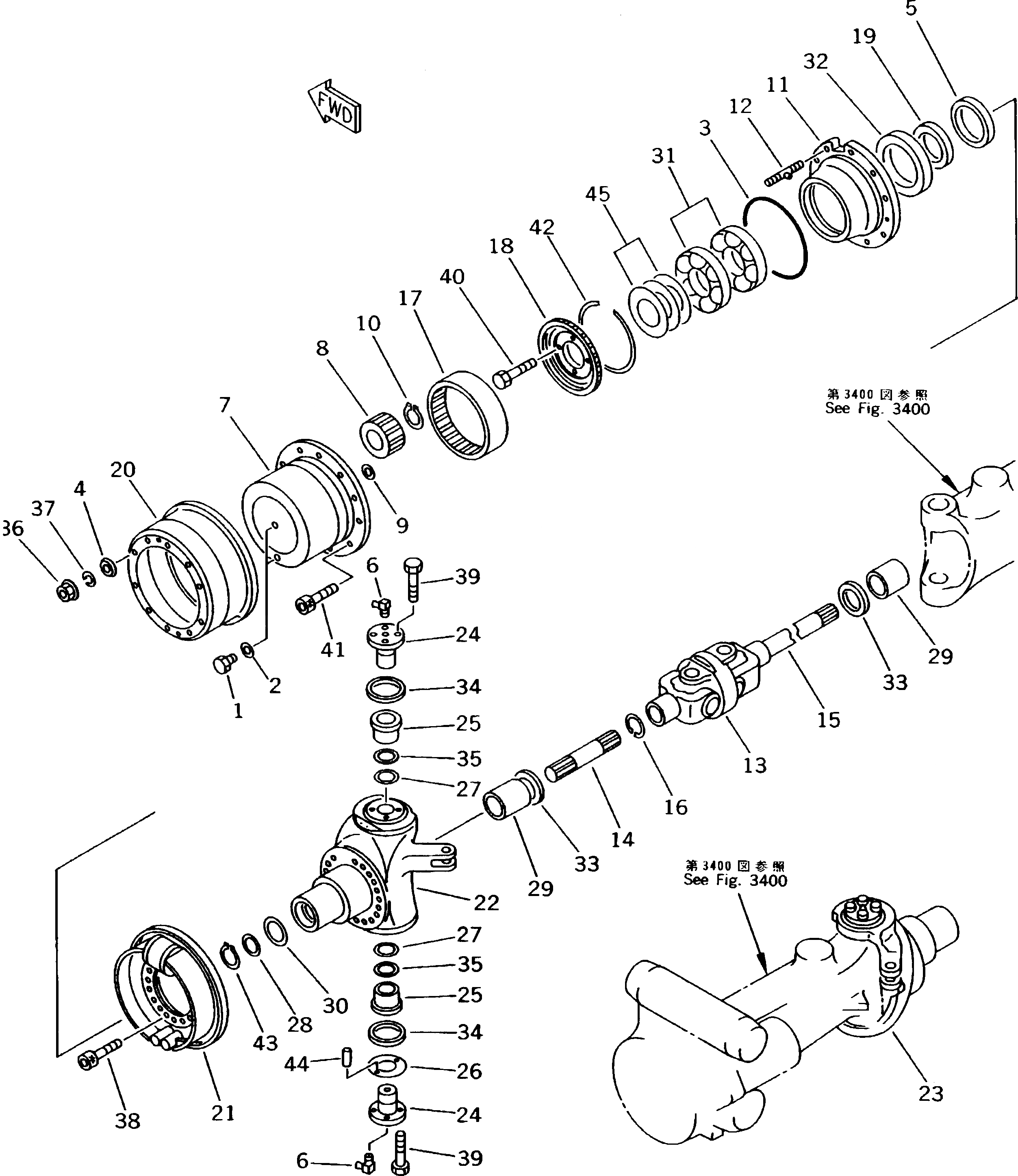

Запчасти Komatsu PW170-5K ПЕРЕДНИЙ МОСТ (/) ШАССИ¤ ТРАНСМИССИЯ¤ МОСТ¤ КОЛЕСА И ВОЗД. СИСТЕМА

|1

20G-23-K1100

AXLE ASS'Y,FRONT

1

20G-14-K1810

PLUG

2

20G-14-K1820

RING,SEAL

3

20G-22-K1260

O-RING,SEAL

4

20G-22-K1130

RING

5

20G-22-K1350

RING

6

20G-23-K1190

FITTING,GRESE

7

20G-22-K1370

BEAM ASS'Y

8

20G-22-K1760

SPUR GEAR SET

9

20G-22-K1770

WASHER

10

20G-22-K1780

RING,SNAP

11

20G-22-K1380

HUB ASS'Y

12

20G-22-K1790

PIN

|13

20G-23-K1210

PROPELLER SHAFT A.

13

20G-23-K1610

JOINT

14

20G-23-K1620

SHAFT,SHORT

15

20G-23-K1630

SHAFT,LONG

16

20G-23-K1640

RING,SNAP

17

20G-22-K1410

WHEEL,HOLLOW

18

20G-22-K1420

GEAR,SPUR

19

20G-22-K1480

RING

20

20G-22-K1440

DRUM,BRAKE

21

20G-22-K1450

BRAKE ASS'Y

22

20G-23-K1220

KNUCKLE,L.H.

23

20G-23-K1230

KNUCKLE,R.H.

24

20G-23-K1240

PIN

25

20G-23-K1250

BUSHING

26

20G-23-K1260

RING

27

20G-23-K1270

PINION

28

20G-23-K1280

RING

29

20G-23-K1290

BUSHING

30

20G-23-K1310

WASHER

31

20G-22-K1460

BEARING,ROLLER

32

20G-22-K1470

RING,SEAL

33

20G-23-K1320

RING,SEAL

34

20G-23-K1330

RING,SEAL

35

20G-23-K1340

RING,SEAL

36

20G-22-K1110

NUT,WHEEL

37

20G-22-K1120

WASHER,LOCK

38

20G-22-K1940

BOLT

39

20G-23-K1350

BOLT

40

20G-22-K1520

BOLT

41

20G-23-K1360

GEAR

42

20G-22-K1540

RING,SNAP

43

20G-22-K1780

RING,SNAP

44

20G-23-K1370

PIN,LOCK

45

20G-22-K1550

SHIM

|45

20G-22-K1560

SHIM

|45

20G-22-K1570

SHIM
