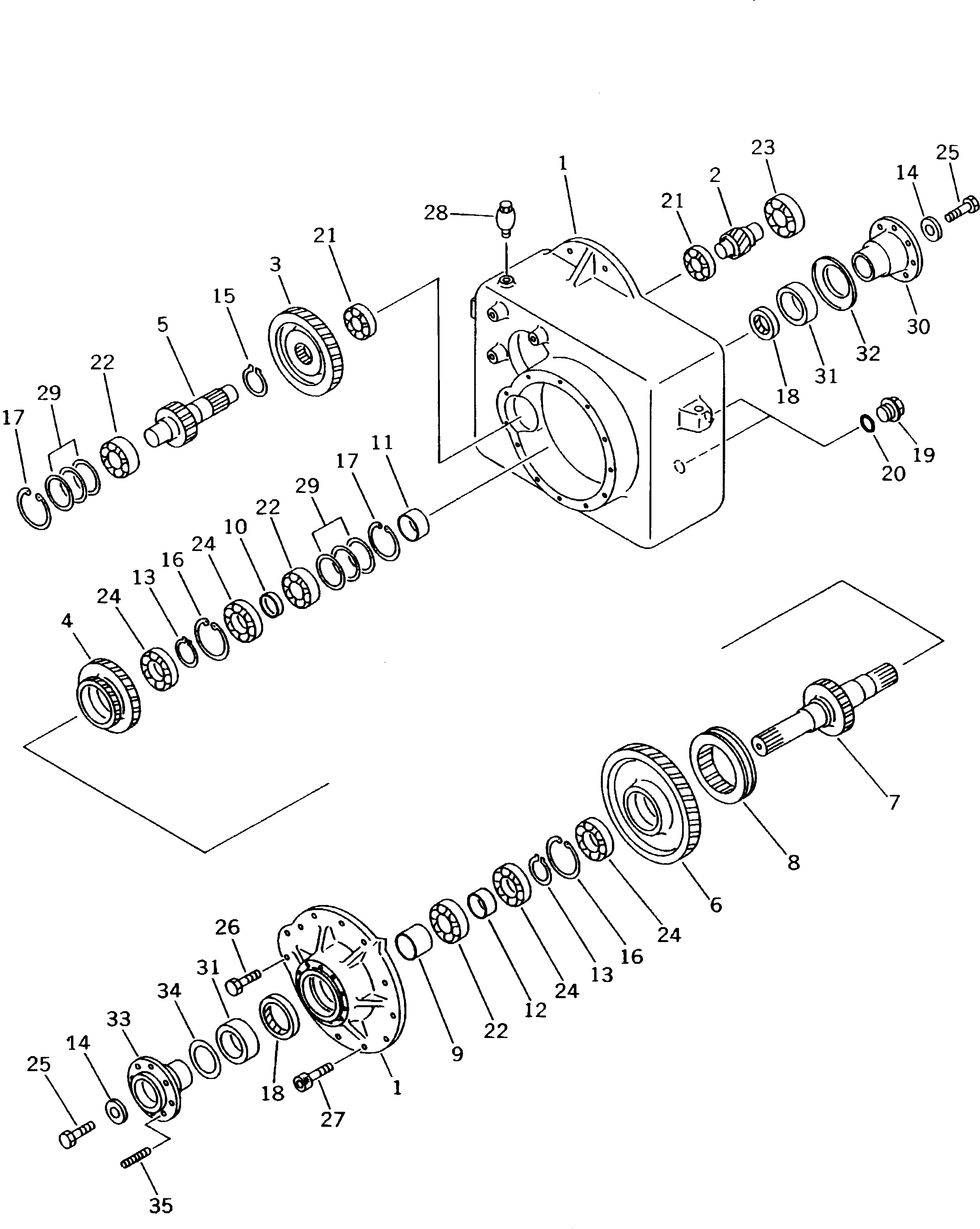

Запчасти Komatsu PW170-5K КОРПУС ТРАНСМИССИИ (/) ШАССИ¤ ТРАНСМИССИЯ¤ МОСТ¤ КОЛЕСА И ВОЗД. СИСТЕМА

|1

20G-14-K2000

TRANSMISSION ASS'Y

|1

20G-14-K1000

TRANSMISSION ASS'Y

|1

20G-14-K1310

TRANSMISSION ASS'Y

1

CASE

2

20G-14-K1610

SHAFT

3

20G-14-K1620

GEAR,SPUR

4

20G-14-K1630

GEAR,SPUR

5

20G-14-K1640

SHAFT

6

20G-14-K1650

GEAR,SPUR (NOT SHOWN)

7

20G-14-K1660

SHAFT

8

20G-14-K1670

RING

9

20G-14-K1690

BUSHING

10

20G-14-K1710

DISC

11

20G-14-K1720

RING

12

20G-14-K1730

BUSHING

13

20G-14-K1740

RING

14

20G-14-K1750

DISC

15

20G-14-K1760

RING,SNAP

16

20G-14-K1770

RING,SNAP

17

20G-14-K1780

RING,SNAP

18

20G-14-K1790

RING,SEAL (NOT SHOWN)

19

20G-14-K1810

PLUG

20

20G-14-K1820

RING,SEAL

21

20G-14-K1830

BEARING,ROLLER

22

20G-14-K1840

BEARING,ROLLER

23

20G-14-K1850

BEARING,ROLLER

24

20G-14-K1860

BEARING,ROLLER

25

20G-14-K1870

BOLT

26

20G-14-K1880

BOLT

27

20G-14-K1890

BOLT

28

20G-14-K1910

VALVE

29

20G-14-K1920

SHIM

|29

20G-14-K1930

SHIM

|29

20G-14-K1940

SHIM

|29

20G-14-K1950

SHIM

30

20G-14-K2260

FLANGE

31

20G-14-K2270

RING

32

20G-14-K2280

BONNET

33

20G-14-K2290

FLANGE

34

20G-14-K2320

SHIM

35

20G-14-K2330

STUD
