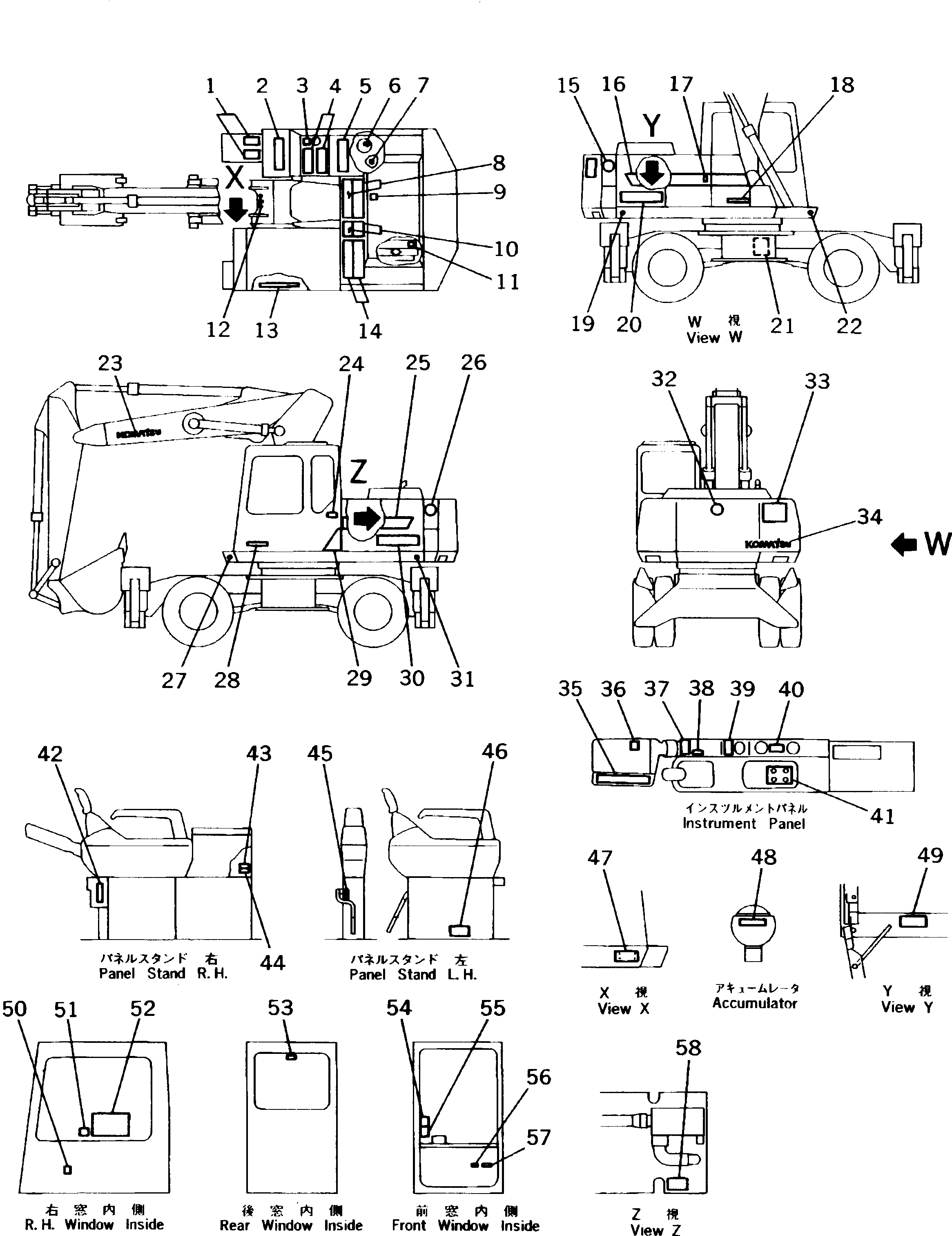

Запчасти Komatsu PW170-5K МАРКИРОВКА (ПОРТУГАЛ.)(№K-.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

203-00-51170

SEAT,NONSKID

2

205-54-76511

SEAT,NONSKID

3

20Y-00-K1150

PLATE¤ CAUTION,FUEL

4

154-54-23260

SEAT,NONSKID

5

205-54-76511

SEAT,NONSKID

6

20Y-00-K1380

PLATE¤ CAUTION,HYDRAULIC TANK CAP

7

20Y-00-K1171

PLATE¤ SAFETY,HYDRAULIC TANK

8

21T-54-11620

SEAT,NONSKID

9

20G-00-K1430

PLATE¤ CAUTION,REPAIR/ENGINE/RADIATOR

10

203-00-51170

SEAT,NONSKID

11

20Y-00-K1391

PLATE¤ SAFETY,RADIATOR CAP

12

207-00-31630

PLATE¤ MARK,SYMBOL

13

20Y-00-K1580

SEAT,NONSKID

14

21T-54-11620

SEAT,NONSKID

15

20G-00-K1510

PLATE,MAXIMUM SPEED

16

203-00-K1190

PLATE¤ MARK,LINE

17

203-00-31120

PLATE¤ INSTRUCTION,HYDRAULIC OIL LEVEL

18

09690-C0315

PLATE¤ MARK,KOMATSU

19

20G-46-K1680

REFLECTOR,REFLEX

|19

01220-30512

SCREW

20

20G-00-K1342

PLATE¤ MARK,PW170

21

20G-00-K1320

CHART¤ OIL

22

20G-46-K1680

REFLECTOR,REFLEX

|22

01220-30512

SCREW

23

09690-B0630

PLATE¤ MARK,KOMATSU

24

20Y-00-K1750

PLATE¤ MARK,PEMC

25

203-00-K1180

PLATE¤ MARK,LINE

26

20G-00-K1630

PLATE,MAXIMUM SPEED

27

20G-46-K1680

REFLECTOR,REFLEX

|27

01220-30512

SCREW

28

09690-B0315

PLATE¤ MARK,KOMATSU

29

20Y-00-K1930

PLATE¤ MARK,LINE

30

20G-00-K1342

PLATE¤ MARK,PW170

31

20G-46-K1680

REFLECTOR,REFLEX

|31

01220-30512

SCREW

32

20G-00-K1630

PLATE,MAXIMUM SPEED

33

20Y-00-K1650

PLATE¤ CAUTION,KEEP OUT OF TURNING AREA

34

20G-00-K1571

PLATE¤ MARK,KOMATSU

35

20G-00-K1131

DECAL,MONITOR PANEL

36

203-00-56550

PLATE,TRAVEL SPEED HI-LO LESS

37

20Y-00-K1132

PLATE¤ OPERATING,SWING PARKING BRAKE

38

20G-00-K1410

PLATE¤ OPERATING,PARKING BRAKE

39

20Y-00-K1140

PLATE¤ OPERATING,FUEL CONTROL

40

20G-00-K1581

PLATE¤ OPERATING,TRANSMISSION HI-LO

41

20G-00-K1380

PLATE¤ OPERATING,OUTRIGGER (WITH OUTRIGGER)

|41

20G-00-K1390

PLATE¤ OPERATING,DOZER (OUTRIGGER LESS)

42

20G-00-K1460

PLATE¤ OPERATING,SWING LOCK

43

20Y-00-K1420

PLATE¤ OPERATING,T.V.C. PROLIX

44

20Y-00-K1430

PLATE¤ OPERATING,SWING PRLIX

45

09685-00002

PLATE¤ OPERATING,LOCK LEVER

46

20G-00-K1540

PLATE¤ OPERATING,STEERING CONTROL

47

418-00-K1160

PLATE¤ NAME,(LIMITED SUPPLY)

|47

205-00-72430

RIVET

48

20Y-00-K1830

PLATE,ACCUMULATOR

49

20G-00-K1360

PLATE¤ CAUTION,AIR TANK

50

20G-00-K1450

PLATE¤ OPERATING,SERVICE BRAKE

51

20G-00-K1620

PLATE¤ OPERATING,BUCKET/CAB CONTACT

52

20G-00-K1240

PLATE¤ CAUTION,WARNING

53

205-00-K1251

PLATE¤ CAUTION,AUTO LOCK

54

09696-10078

PLATE,SOUND PRESSURE LEVEL

55

09696-00108

PLATE,SOUND POWER LEVEL

56

20G-00-K1470

PLATE,BRAKE PEDAL

57

20G-00-K1480

PLATE,TRAVEL PEDAL

58

20Y-00-K1860

PLATE¤ INSTRUCTION,AIR CLEANER

59

205-00-K1230

PLATE,ENGINE (NOT SHOWN)
