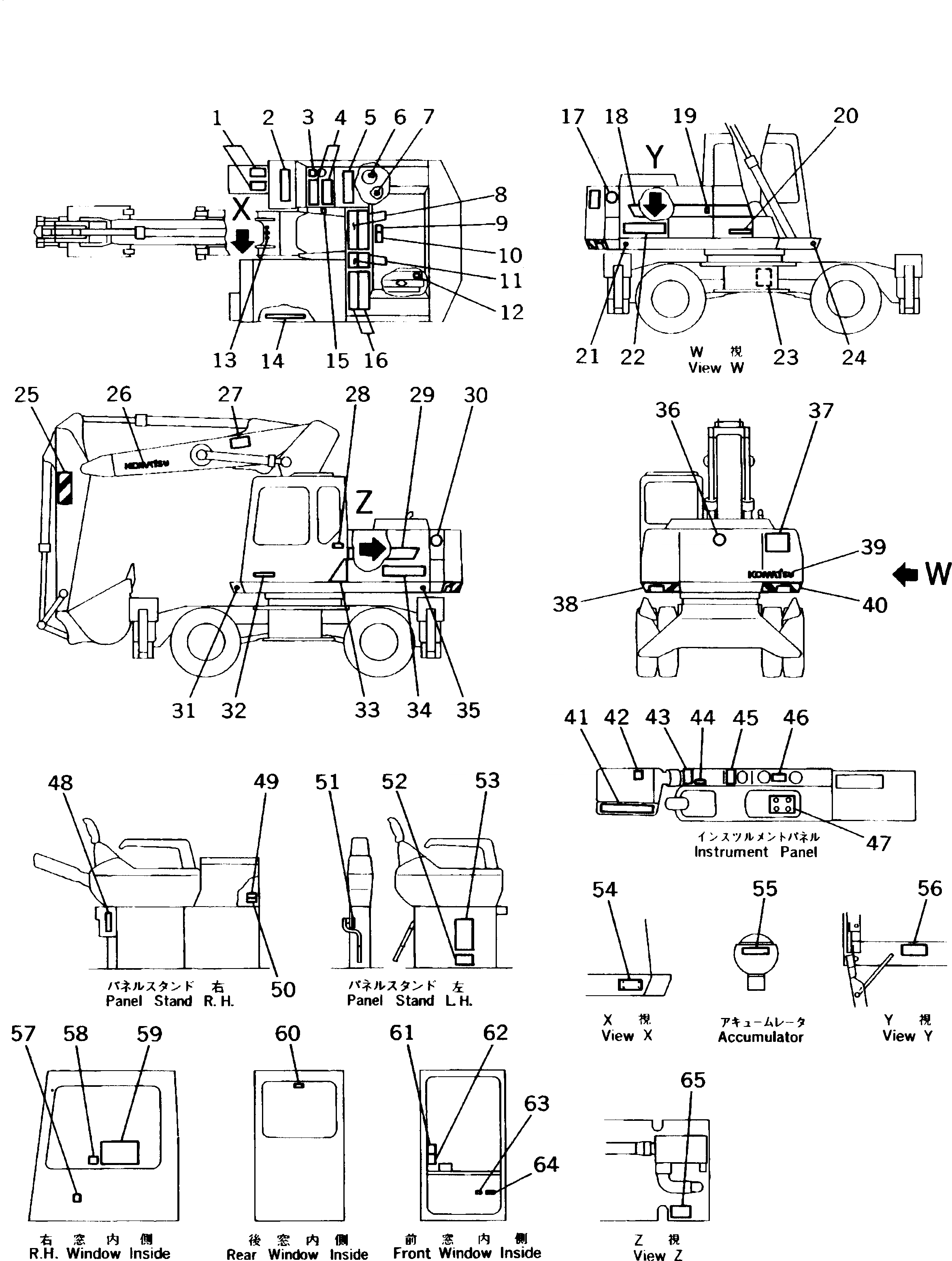

Запчасти Komatsu PW170-5K МАРКИРОВКА (СПЕЦ-Я TBG)(№K-.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

203-00-51170

SEAT,NONSKID

2

205-54-76511

SEAT,NONSKID

3

20Y-00-K1150

PLATE¤ CAUTION,FUEL

4

154-54-23260

SEAT,NONSKID

5

205-54-76511

SEAT,NONSKID

6

20Y-00-K1380

PLATE¤ CAUTION,HYDRAULIC TANK CAP

7

20Y-00-K1171

PLATE¤ SAFETY,HYDRAULIC TANK

8

21T-54-11620

SEAT,NONSKID

9

20G-00-K1430

PLATE¤ CAUTION,REPAIR/ENGINE/RADIATOR

10

205-00-66130

PLATE¤ SAFETY

11

203-00-51170

SEAT,NONSKID

12

20Y-00-K1391

PLATE¤ SAFETY,RADIATOR CAP

13

207-00-31630

PLATE¤ MARK,SYMBOL

14

20Y-00-K1580

SEAT,NONSKID

15

09685-00003

PLATE¤ OPERATING,LOCK BOOM

16

21T-54-11620

SEAT,NONSKID

17

20G-00-K1510

PLATE,MAXIMUM SPEED

18

203-00-K1190

PLATE¤ MARK,LINE

19

203-00-31120

PLATE¤ INSTRUCTION,HYDRAULIC OIL LEVEL

20

09690-C0315

PLATE¤ MARK,KOMATSU

21

20G-46-K1680

REFLECTOR,REFLEX

|21

01220-30512

SCREW

22

20G-00-K1342

PLATE¤ MARK,PW170

23

20G-00-K1320

CHART¤ OIL

24

20G-46-K1680

REFLECTOR,REFLEX

|24

01220-30512

SCREW

25

20G-00-K1170

PLATE¤ CAUTION,L.H. BOOM

|25

20G-00-K1160

PLATE¤ CAUTION,R.H. BOOM

26

09690-B0630

PLATE¤ MARK,KOMATSU

27

205-00-K1160

PLATE¤ SAFETY,SWING AREA

28

20Y-00-K1750

PLATE¤ MARK,PEMC

29

203-00-K1180

PLATE¤ MARK,LINE

30

20G-00-K1510

PLATE,MAXIMUM SPEED

31

20G-46-K1680

REFLECTOR,REFLEX

|31

01220-30512

SCREW

32

09690-B0315

PLATE¤ MARK,KOMATSU

33

20Y-00-K1930

PLATE¤ MARK,LINE

34

20G-00-K1342

PLATE¤ MARK,PW170

35

20G-46-K1680

REFLECTOR,REFLEX

|35

01220-30512

SCREW

36

20G-00-K1510

PLATE,MAXIMUM SPEED

37

20Y-00-K1650

PLATE¤ CAUTION,KEEP OUT OF TURNING AREA

38

20G-00-K1520

PLATE¤ CAUTION,L.H.

39

20G-00-K1571

PLATE¤ MARK,KOMATSU

40

20G-00-K1530

PLATE¤ CAUTION,R.H.

41

20G-00-K1131

DECAL,MONITOR PANEL

42

203-00-56550

PLATE,TRAVEL SPEED HI-LO LESS

43

20Y-00-K1132

PLATE¤ OPERATING,SWING PARKING BRAKE

44

20G-00-K1410

PLATE¤ OPERATING,PARKING BRAKE

45

20Y-00-K1140

PLATE¤ OPERATING,FUEL CONTROL

46

20G-00-K1581

PLATE¤ OPERATING,TRANSMISSION HI-LO

47

20G-00-K1380

PLATE¤ OPERATING,OUTRIGGER (WITH OUTRIGGER)

|47

20G-00-K1390

PLATE¤ OPERATING,DOZER (OUTRIGGER LESS)

48

20G-00-K1460

PLATE¤ OPERATING,SWING LOCK

49

20Y-00-K1420

PLATE¤ OPERATING,T.V.C. PROLIX

50

20Y-00-K1430

PLATE¤ OPERATING,SWING PRLIX

51

09685-00002

PLATE¤ OPERATING,LOCK LEVER

52

20G-00-K1540

PLATE¤ OPERATING,STEERING CONTROL

53

20Y-00-K1790

PLATE,LOCK LEVER

54

418-00-K1160

PLATE¤ NAME,(LIMITED SUPPLY)

|54

205-00-72430

RIVET

55

20Y-00-K1830

PLATE,ACCUMULATOR

56

20G-00-K1360

PLATE¤ CAUTION,AIR TANK

57

20G-00-K1450

PLATE¤ OPERATING,SERVICE BRAKE

58

20G-00-K1620

PLATE¤ OPERATING,BUCKET/CAB CONTACT

59

20G-00-K1240

PLATE¤ CAUTION,WARNING

60

205-00-K1251

PLATE¤ CAUTION,AUTO LOCK

61

09696-10078

PLATE,SOUND PRESSURE LEVEL

62

09696-00108

PLATE,SOUND POWER LEVEL

63

20G-00-K1470

PLATE,BRAKE PEDAL

64

20G-00-K1480

PLATE,TRAVEL PEDAL

65

20Y-00-K1860

PLATE¤ INSTRUCTION,AIR CLEANER

66

205-00-K1230

PLATE,ENGINE (NOT SHOWN)
