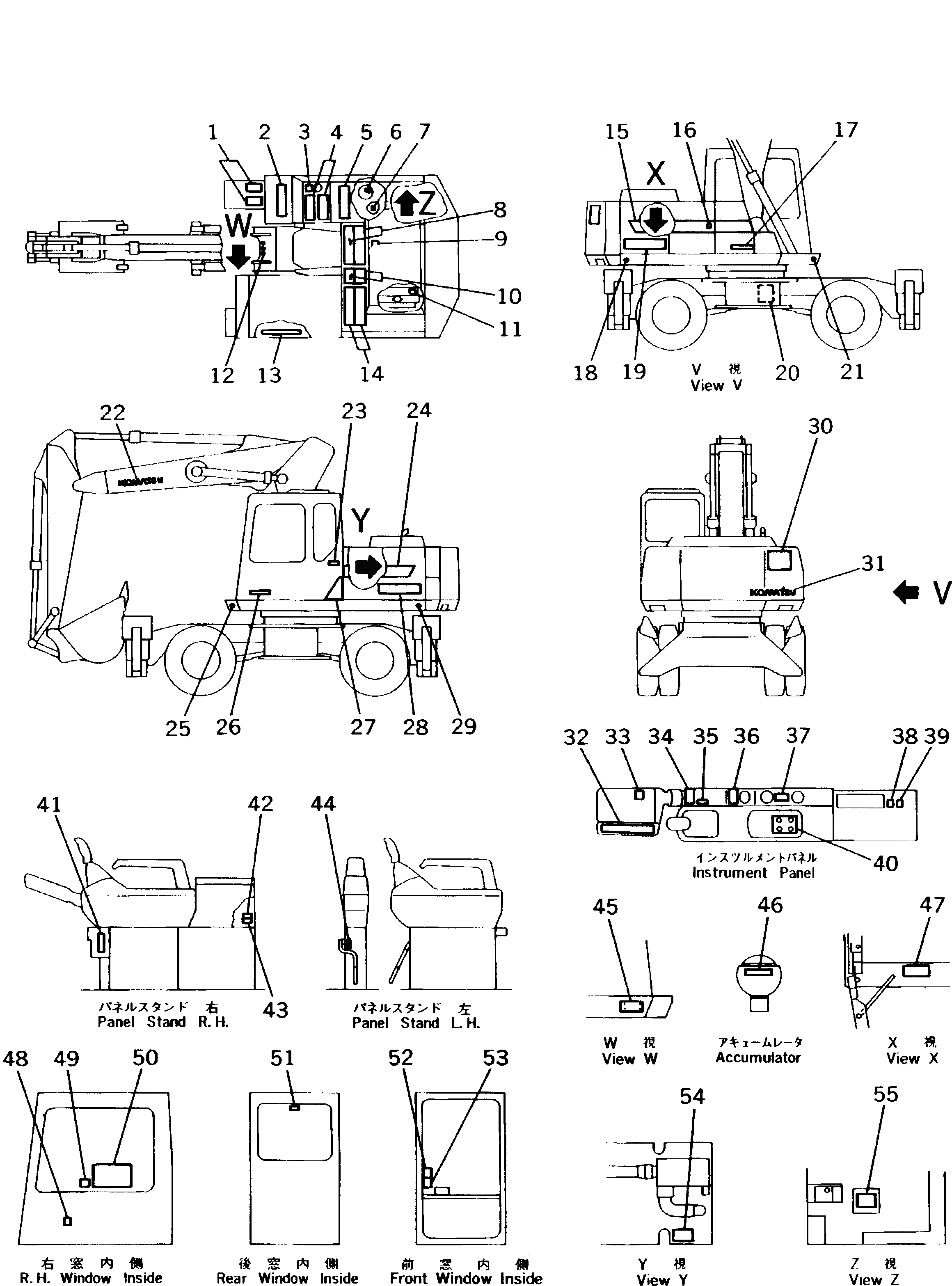

Запчасти Komatsu PW170-5K МАРКИРОВКА (АНГЛ.)(№K-.) МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

203-00-51170

SEAT,NONSKID

2

205-54-76511

SEAT,NONSKID

3

09652-30121

PLATE¤ CAUTION,FUEL

4

154-54-23260

SEAT,NONSKID

5

205-54-76511

SEAT,NONSKID

6

20X-98-19130

PLATE¤ CAUTION,HYDRAULIC TANK CAP

7

09653-03000

PLATE¤ SAFETY,HYDRAULIC TANK

8

21T-54-11620

SEAT,NONSKID

9

20G-00-K1420

PLATE¤ CAUTION,REPAIR/ENGINE/RADIATOR

10

203-00-51170

SEAT,NONSKID

11

09968-03000

PLATE¤ SAFETY,RADIATOR CAP

12

207-00-31630

PLATE¤ MARK,SYMBOL

13

20Y-00-K1580

SEAT,NONSKID

14

21T-54-11620

SEAT,NONSKID

15

203-00-K1190

PLATE¤ MARK,LINE

16

203-00-31120

PLATE¤ INSTRUCTION,HYDRAULIC OIL LEVEL

17

09690-C0315

PLATE¤ MARK,KOMATSU

18

20G-46-K1680

REFLECTOR,REFLEX

|18

01220-30512

SCREW

19

20G-00-K1342

PLATE¤ MARK,PW170

20

20G-00-K1311

CHART¤ OIL

21

20G-46-K1680

REFLECTOR,REFLEX

|21

01220-30512

SCREW

22

09690-B0630

PLATE¤ MARK,KOMATSU

23

20Y-00-K1750

PLATE¤ MARK,PEMC

24

203-00-K1180

PLATE¤ MARK,LINE

25

20G-46-K1680

REFLECTOR,REFLEX

|25

01220-30512

SCREW

26

09690-B0315

PLATE¤ MARK,KOMATSU

27

20Y-00-K1930

PLATE¤ MARK,LINE

28

20G-00-K1342

PLATE¤ MARK,PW170

29

20G-46-K1680

REFLECTOR,REFLEX

|29

01220-30512

SCREW

30

20Y-00-K1530

PLATE¤ CAUTION,KEEP OUT OF TURNING AREA

31

20G-00-K1571

PLATE¤ MARK,KOMATSU

32

20G-00-K1131

DECAL,MONITOR PANEL

33

203-00-56550

PLATE,TRAVEL SPEED HI-LO LESS

34

20Y-00-K1132

PLATE¤ OPERATING,SWING PARKING BRAKE

35

20G-00-K1410

PLATE¤ OPERATING,PARKING BRAKE

36

20Y-00-K1140

PLATE¤ OPERATING,FUEL CONTROL

37

20G-00-K1581

PLATE¤ OPERATING,TRANSMISSION HI-LO

38

203-00-K1220

PLATE¤ MARK,BEACON

39

203-00-K1230

PLATE¤ MARK,HEATED SEAT

40

20G-00-K1380

PLATE¤ OPERATING,OUTRIGGER (WITH OUTRIGGER)

|40

20G-00-K1390

PLATE¤ OPERATING,DOZER (OUTRIGGER LESS)

41

20G-00-K1460

PLATE¤ OPERATING,SWING LOCK

42

203-00-56280

PLATE¤ OPERATING,T.V.C. PROLIX

43

203-00-56290

PLATE¤ OPERATING,SWING PRILIX

44

09685-00002

PLATE¤ OPERATING,LOCK LEVER

45

205-00-K1110

PLATE¤ NAME,(LIMITED SUPPLY)

|45

205-00-72430

RIVET

46

205-00-71441

PLATE¤ SAFETY,ACCUMULATOR

47

20G-00-K1350

PLATE¤ CAUTION,AIR TANK

48

20G-00-K1450

PLATE¤ OPERATING,SERVICE BRAKE

49

20G-00-K1620

PLATE¤ OPERATING,BUCKET/CAB CONTACT

50

20G-00-K1231

PLATE¤ CAUTION,WARNING

51

205-00-K1260

PLATE¤ CAUTION,AUTO LOCK

52

09696-10078

PLATE,SOUND PRESSURE LEVEL

53

09696-00108

PLATE,SOUND POWER LEVEL

54

09637-30661

PLATE¤ INSTRUCTION,AIR CLEANER

55

208-00-11840

PLATE¤ CAUTION,CHARGE PUMP BYPASS

56

205-00-K1230

PLATE,ENGINE (NOT SHOWN)
