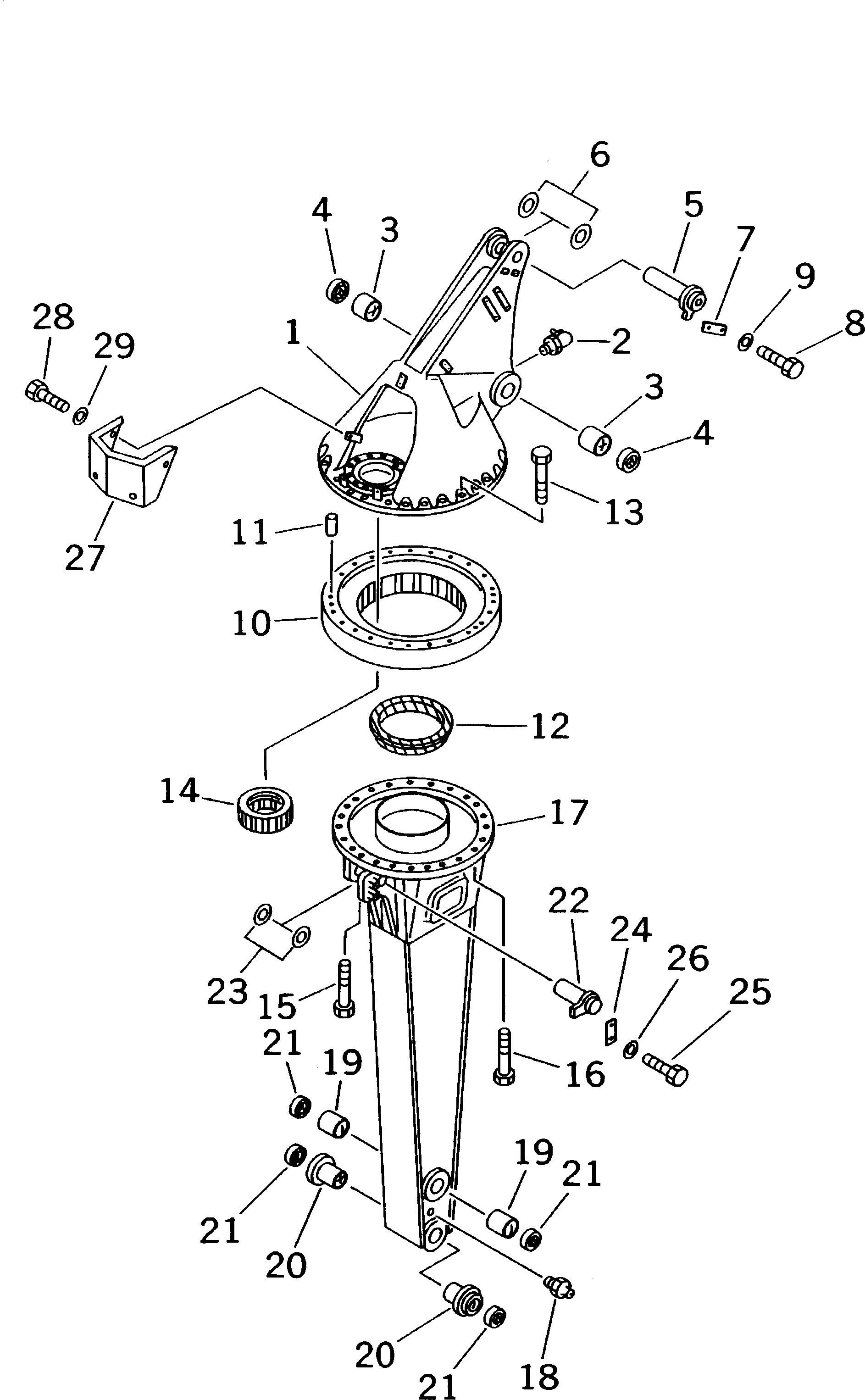

Запчасти Komatsu PW170-5K РУКОЯТЬ (ДЛЯ ВРАЩАЮЩ. РУКОЯТИ) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

20G-966-K100

ARM ASS'Y,ROTATING

1

20G-966-K120

ARM ASS'Y,UPPER

2

07020-00900

FITTING,GREASE

3

21K-70-32120

BUSHING

4

07145-00080

SEAL,DUST

5

21K-70-22120

PIN

6

21K-70-22150

SPACER¤ 1.0MM

7

205-70-66580

PLATE

8

01010-51230

BOLT

9

01643-31232

WASHER

10

205-966-7111

CIRCLE,SWING

11

04020-01842

PIN

12

205-966-7260

SEAL

13

01011-52210

BOLT

14

205-966-7520

PINION

15

01011-52210

BOLT

16

01011-52210

BOLT

17

20G-966-K140

ARM ASS'Y,LOWER

18

07020-00000

FITTING,GREASE

19

21K-70-12170

BUSHING

20

21K-70-22130

BUSHING

21

21K-70-12180

SEAL

22

21K-70-12151

PIN

23

203-70-24170

SPACER¤ 1.0MM

24

205-70-66580

PLATE

25

01010-51230

BOLT

26

01643-31232

WASHER

27

20G-966-K790

COVER

28

01010-51225

BOLT

29

01643-31232

WASHER
