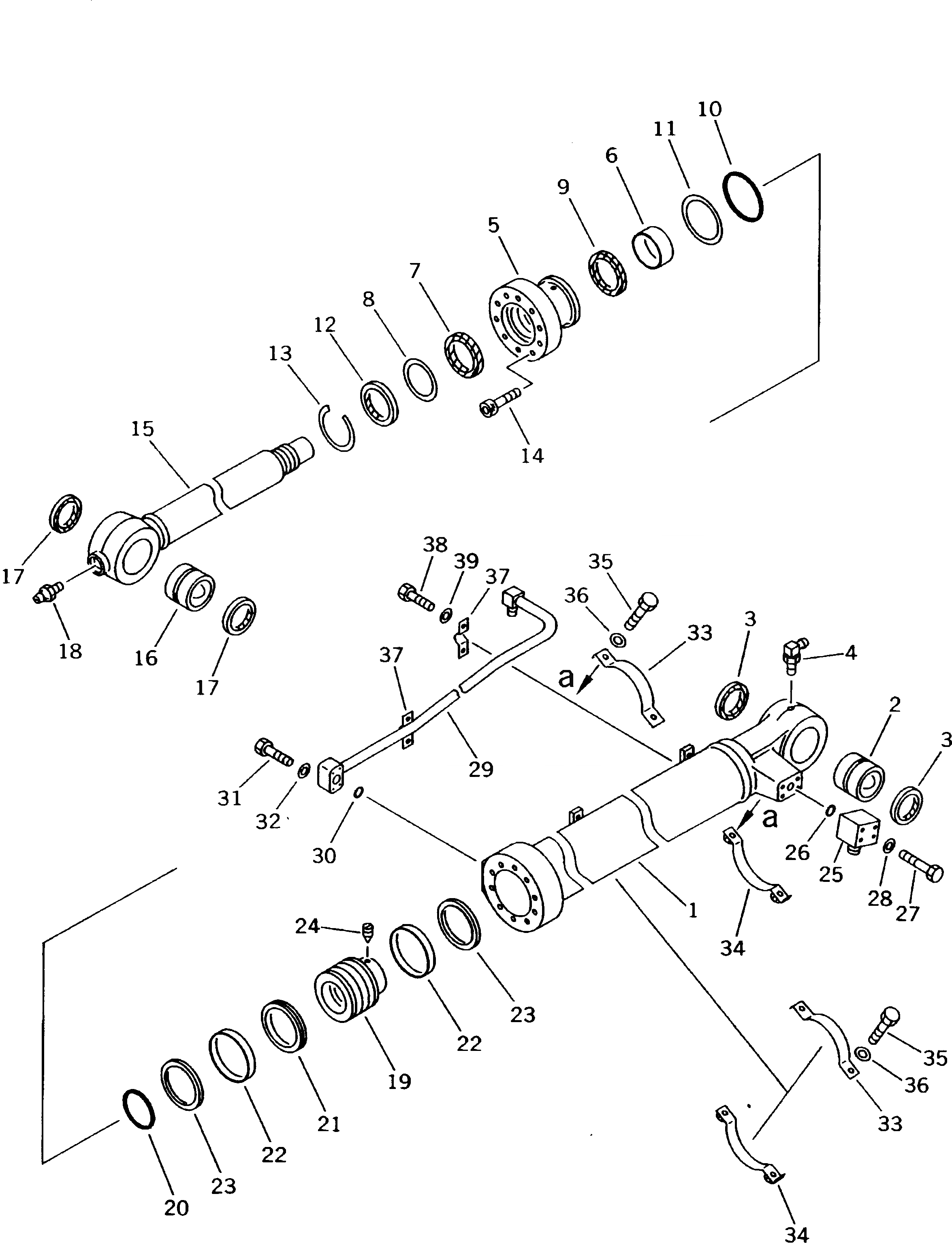

Запчасти Komatsu PW170-5K ЦИЛИНДР КОВША РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

21P-63-K1820

CYLINDER ASS'Y,BUCKET

1

21P-63-K1830

CYLINDER

2

707-76-70230

BUSHING

3

07145-00070

SEAL,DUST

4

21P-63-K1860

FITTING,GREASE

5

21P-63-K1850

HEAD,CYLINDER

6

707-52-90500

BUSHING

7

707-51-75030

PACKING,ROD

8

203-63-K2350

RING,BACK-UP

9

707-51-75630

RING,BUFFER

10

21P-63-K1670

O-RING

11

21P-63-K1660

RING,BACK-UP

12

144-63-94170

SEAL,DUST

13

203-63-K2090

RING,SNAP

14

203-63-K2120

BOLT

15

21P-63-K1840

ROD,PISTON

16

707-76-70370

BUSHING

17

21K-70-12180

SEAL,DUST

18

21P-63-K1870

FITTING,GREASE

19

21P-63-K1680

PISTON

20

21P-63-K1690

O-RING

21

707-44-11180

RING,PISTON

22

707-39-11110

RING,WEAR

23

707-44-11911

RING

24

203-63-K2370

FITTING,SET

25

21P-63-K2170

ELBOW

26

07000-13030

O-RING

27

21P-63-K2180

BOLT

28

203-63-K2220

WASHER

29

21P-63-K2140

TUBE

30

07000-13025

O-RING

31

203-63-K2240

BOLT

32

203-63-K2440

WASHER

33

21P-63-K2150

BRACKET

34

21P-63-K2160

BAND

35

203-63-K2210

BOLT

36

203-63-K2230

WASHER

37

21P-63-K2290

CLAMP

38

21P-63-K2260

BOLT

39

203-63-K2230

WASHER
