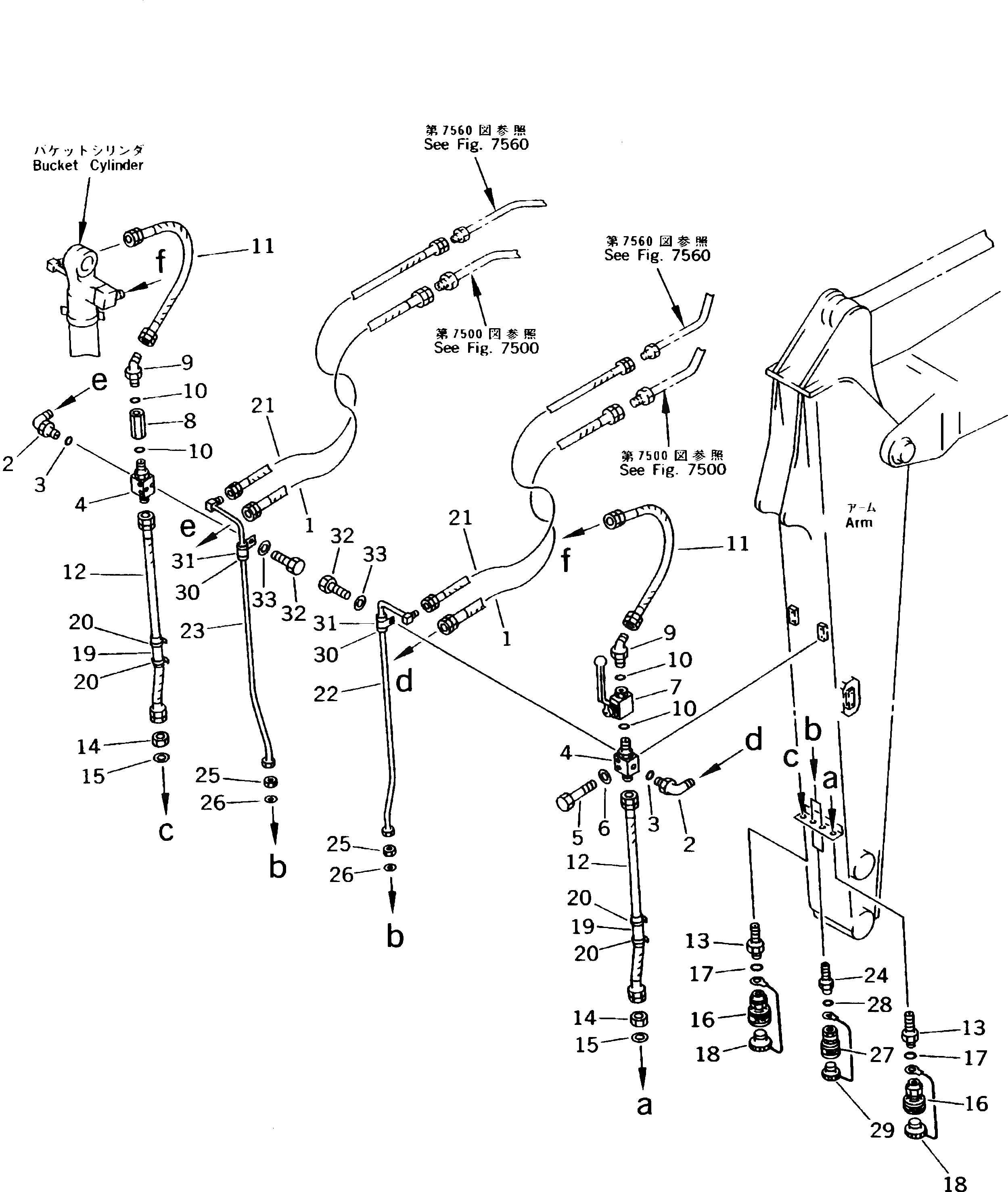

Запчасти Komatsu PW170-5K ГИДРОЛИНИЯ (ГРЕЙФЕРН. ТРУБЫ ЛИНИЯ) (РУКОЯТЬ) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

07096-20510

HOSE,(FOR 1.8M ARM)

|1

07096-20514

HOSE,(FOR 2.2M ARM)

|1

21P-62-K1510

HOSE,(FOR 2.6M ARM)

|1

07096-20516

HOSE,(FOR 2.6M ARM)

2

07235-10522

ELBOW

3

07002-12434

O-RING

4

20G-62-K3590

BLOCK

5

01010-51070

BOLT

6

01643-31032

WASHER

7

20G-60-K1740

VALVE

8

20G-62-K3730

ADAPTOR

9

07236-10522

ELBOW

10

07002-12434

O-RING

11

20G-62-K5250

HOSE

|11

07096-00506

HOSE

12

20G-62-K2010

HOSE

13

20G-62-K3641

UNION

14

01583-12414

NUT

15

01643-32460

WASHER

16

20G-62-K3751

COUPLER

17

20G-62-K3940

O-RING

18

20G-62-K4420

PLUG,DUST

19

20G-68-K3410

RUBBER

20

08034-00823

BAND

21

07086-20308

HOSE,(FOR 1.8M ARM)

|21

07086-20314

HOSE,(FOR 2.2M ARM)

|21

20G-62-K5690

HOSE

|21

07086-20316

HOSE,(FOR 2.6M ARM)

22

20G-62-K3620

TUBE

23

20G-62-K3630

TUBE

24

20G-62-K5210

UNION

25

01583-11811

NUT

26

01643-31845

WASHER

27

20G-62-K3741

COUPLER

28

20G-62-K3930

O-RING

29

20G-62-K4410

PLUG

30

07095-20213

CUSHION

31

04434-51910

CLIP

32

01010-51016

BOLT

33

01643-31032

WASHER
