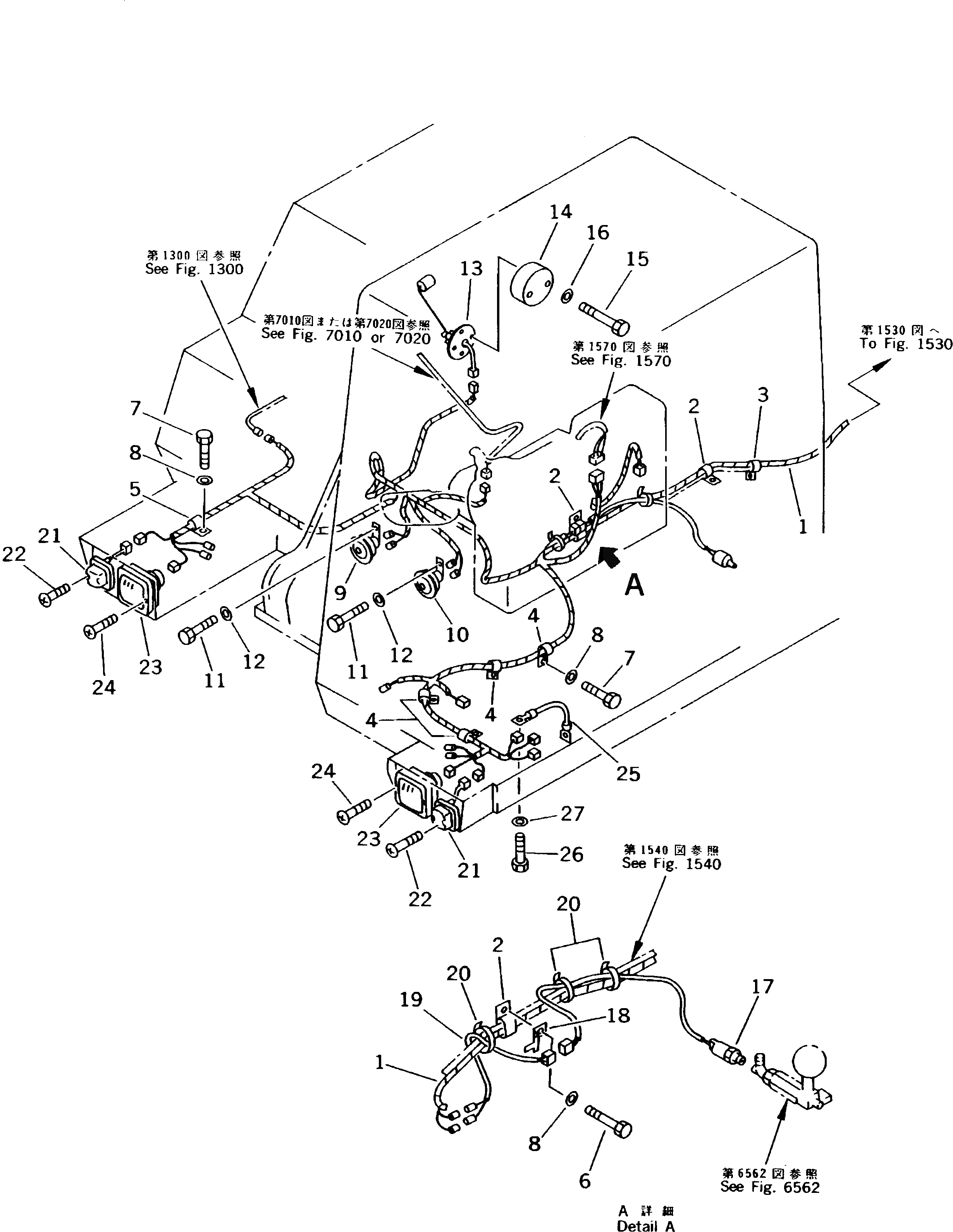

Запчасти Komatsu PW170-5K ЭЛЕКТРИКА (ПЕРЕДН. ОСВЕЩЕНИЕ И ЗВУК. СИГНАЛ. ЛИНИЯ) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

20G-06-K1172

WIRING HARNESS

|1

20G-06-K1171

WIRING HARNESS

|1

203-06-59170

LINK,FUSIBLE

|1

08020-10000

DIODE,BULE

|1

08020-00000

DIODE,WHITE

2

203-06-56390

CLIP

3

20Y-06-15330

CLIP

4

111-04-33180

CLIP

5

08036-00814

CLIP

6

01010-51020

BOLT

7

01010-51016

BOLT

8

01643-31032

WASHER

9

418-06-K1710

HORN

10

20G-06-K1730

HORN,ADDITIONAL

11

01010-50816

BOLT

12

01643-30823

WASHER

13

7861-92-4800

SENSOR,FUEL LEVEL

14

201-06-62310

COVER

15

01010-51070

BOLT

16

01643-31032

WASHER

17

203-06-56121

SWITCH,LOW PPC WARNING

18

08053-01512

CLIP

19

21P-06-21260

WIRING HARNESS

20

08034-00519

BAND

21

20G-06-K1120

INDICATOR

|21

20G-06-K1921

INDICATOR (OP)

|21

20G-06-K1920

INDICATOR (OP)

22

01220-40410

SCREW

23

20G-06-K1130

HEAD LIGHT ASS'Y

|23

20G-06-K1210

BULB¤ 4W

|23

20G-06-K1750

BULB¤ 50W

|23

20G-06-K1780

HEAD LIGHT ASS'Y (OP)

24

01220-40430

SCREW

25

08028-42025

CABLE,FLOOR FRAME EARTH

26

01010-51020

BOLT

27

01643-31032

WASHER
