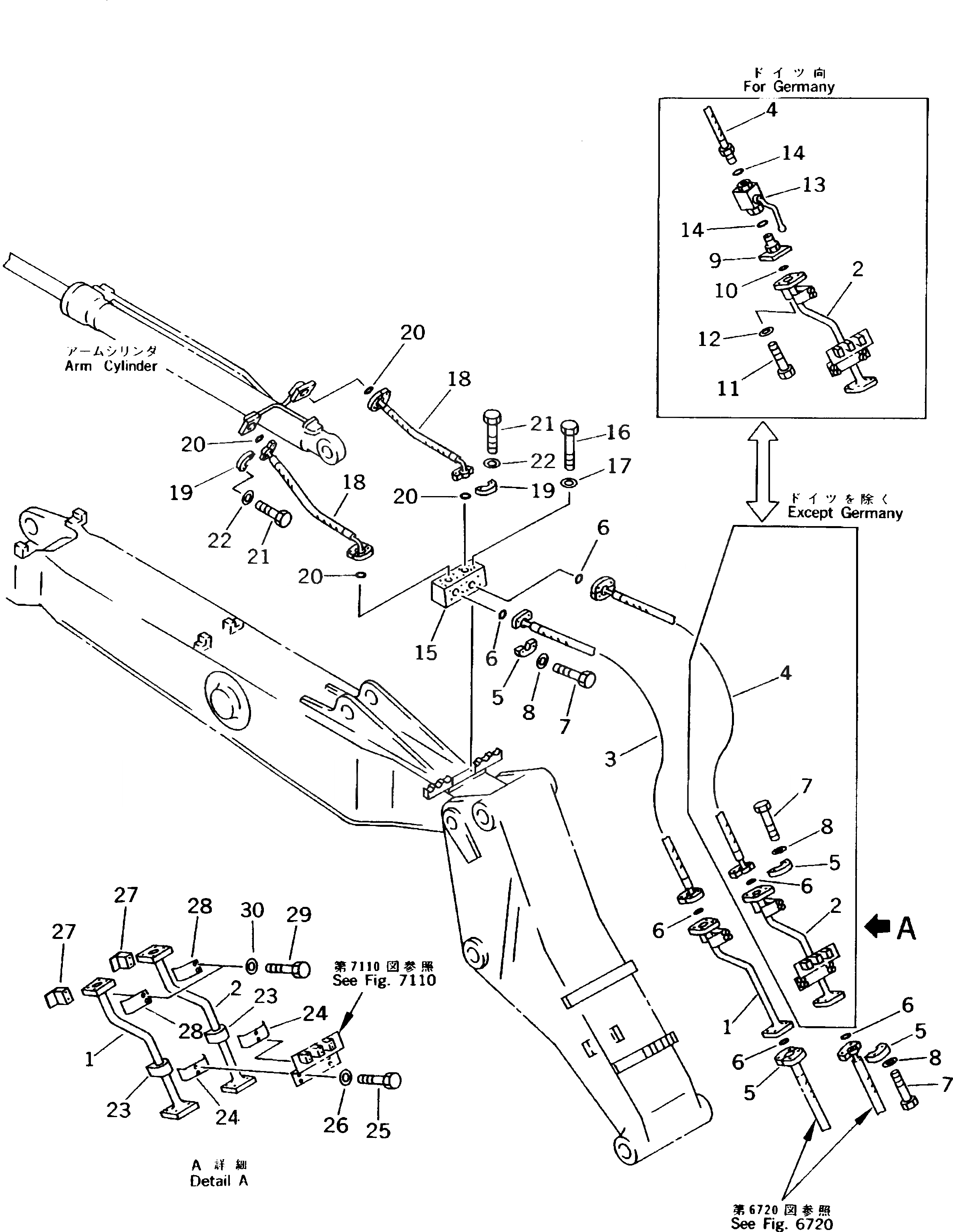

Запчасти Komatsu PW170-5K ГИДРОЛИНИЯ (ЦИЛИНДР РУКОЯТИ) (СТРЕЛА) (ДЛЯ -ЧАСТИ СТРЕЛА) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

20G-62-K1730

TUBE

2

20G-62-K1730

TUBE,(EXCEPT GERMANY)

|2

20G-62-K3520

TUBE,(FOR GERMANY)

3

07099-00617

HOSE

4

07099-00617

HOSE,(EXCEPT GERMANY)

|4

20G-62-K3540

HOSE,(FOR GERMANY)

5

07371-30640

FLANGE,(EXCEPT GERMANY)

|5

07371-30640

FLANGE,(FOR GERMANY)

6

07000-13025

O-RING,(EXCEPT GERMANY)

|6

07000-13025

O-RING,(FOR GERMANY)

7

07372-21035

BOLT,(EXCEPT GERMANY)

|7

07372-21035

BOLT,(FOR GERMANY)

8

01643-51032

WASHER,(EXCEPT GERMANY)

|8

01643-51032

WASHER,(FOR GERMANY)

9

21K-62-34310

FLANGE,(FOR GERMANY)

10

07000-03030

O-RING,(FOR GERMANY)

11

07372-21030

BOLT,(FOR GERMANY)

12

01643-51032

WASHER,(FOR GERMANY)

13

20G-60-K1740

VALVE,(FOR GERMANY)

14

07002-12434

O-RING,(FOR GERMANY)

15

20G-62-K1870

BLOCK

16

01010-51295

BOLT

17

01643-31232

WASHER

18

21P-62-K1530

HOSE

19

07371-30640

FLANGE,SPLIT

20

07000-13025

O-RING

21

07372-21035

BOLT

22

01643-51032

WASHER

23

21K-62-35270

CUSHION

24

203-70-53381

PLATE

25

01010-51030

BOLT

26

01643-31032

WASHER

27

201-973-6740

SEAT

28

201-973-6730

CLAMP

29

01010-51060

BOLT

30

01643-31032

WASHER
