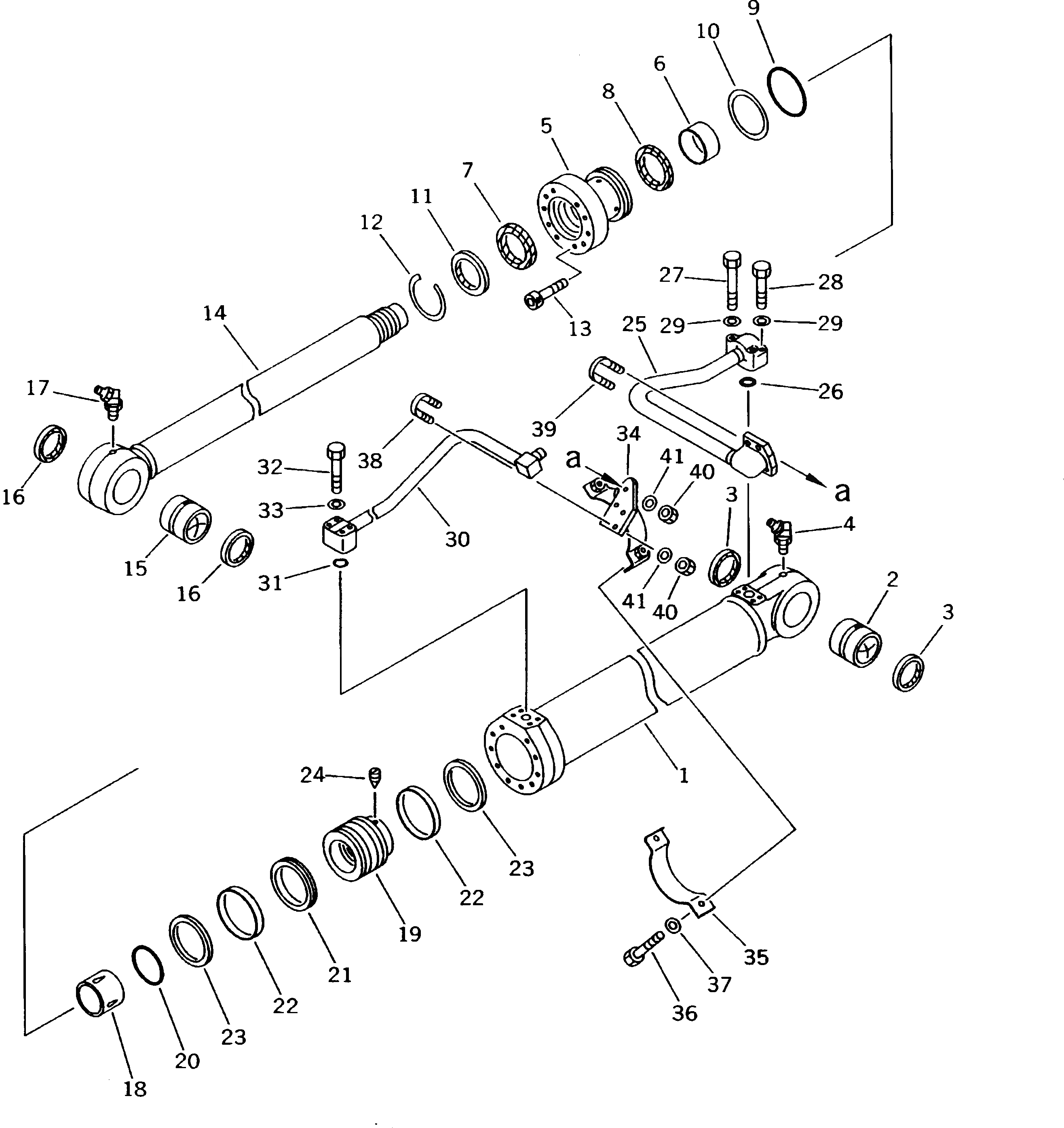

Запчасти Komatsu PW170-5K 1-Я СТРЕЛА ЦИЛИНДР (ДЛЯ 2-СЕКЦИОНН. СТРЕЛЫ) РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

20G-63-K1140

CYLINDER ASS'Y,1ST BOOM

1

20G-63-K1160

CYLINDER

2

707-76-70330

BUSHING

3

07145-00070

SEAL,DUST

4

203-63-K2370

FITTING,GREASE

5

20G-63-K1190

HEAD,CYLINDER

6

707-52-90500

BUSHING

7

707-51-75030

PACKING,ROD

8

707-51-75630

RING,BUFFER

9

21P-63-K1690

O-RING

10

21P-63-K1660

RING,BACK-UP

11

144-63-94170

SEAL,DUST

12

203-63-K2090

RING,SNAP

13

203-63-K2120

BOLT

14

20G-63-K1170

ROD,PISTON

15

707-76-80230

BUSHING

16

07145-00080

SEAL,DUST

17

203-63-K2370

FITTING,GREASE

18

707-52-90500

BUSHING

19

20G-63-K1210

PISTON

20

20G-63-K1240

O-RING

21

707-44-11180

RING,PISTON

22

707-39-11110

RING,WEAR

23

707-44-11911

RING

24

203-63-K2050

SCREW,SET

25

20G-62-K1640

TUBE,L.H.

|25

20G-63-K1650

COLLAR,R.H.

26

07000-13030

O-RING

27

01010-51060

BOLT

28

01010-51045

BOLT

29

01643-51032

WASHER

30

20G-62-K1660

TUBE,L.H.

|30

20G-62-K1670

TUBE,R.H.

31

07000-13025

O-RING

32

01010-50850

BOLT

33

01643-50823

WASHER

34

20G-62-K1680

BRACKET,L.H.

|34

20G-62-K1690

BRACKET,R.H.

35

707-88-97750

BAND

36

01010-51035

BOLT

37

01643-51032

WASHER

38

07283-22738

CLIP

39

07283-22236

CLIP

40

01599-01011

NUT

41

01643-31032

WASHER
