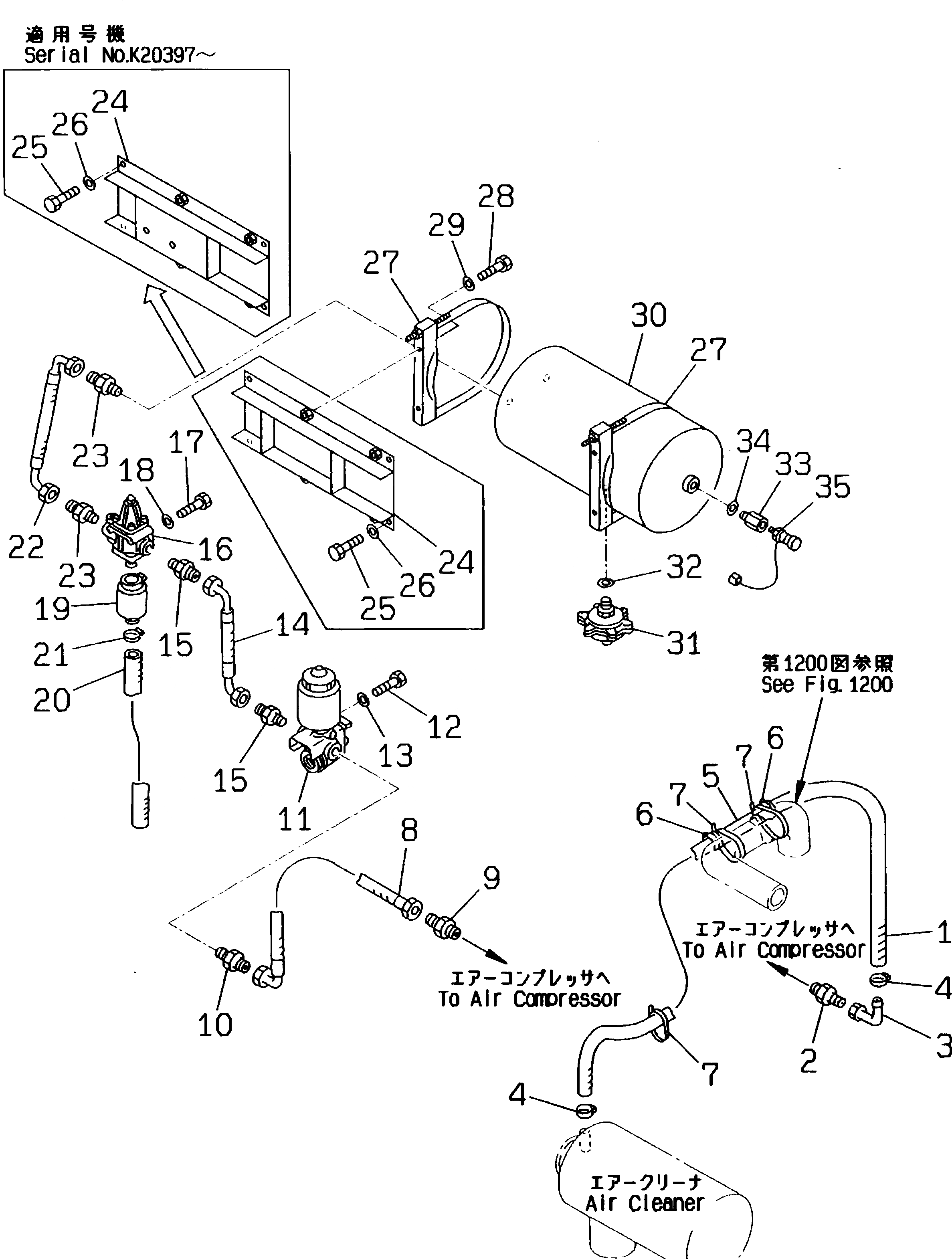

Запчасти Komatsu PW170-5K ВЕРХН. ВОЗДУХОВОД (ВОЗД. ФИЛЬТР. - ВОЗД. БАЛЛОН) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

1

20G-68-K1411

HOSE ASS'Y

2

20G-68-K3580

ADAPTOR

3

20G-68-K4710

ADAPTOR

4

07281-00419

CLAMP

5

20G-68-K3410

RUBBER

6

08034-00414

BAND

7

08034-00536

BAND

8

20G-68-K4530

HOSE

9

20G-68-K3580

ADAPTOR

10

20G-68-K3570

ADAPTOR

11

20G-68-K4510

INJECTOR,ALCOHOL

12

01010-50885

BOLT

13

01643-30823

WASHER

14

20G-68-K4550

HOSE

15

20G-68-K3570

ADAPTOR

16

20G-68-K4520

VALVE,UNLOADER

17

01010-50875

BOLT

18

01643-30823

WASHER

19

20G-68-K4380

SILENCER

20

20G-68-K4610

TUBE

21

07281-00419

CLAMP

22

20G-68-K4540

HOSE

23

20G-68-K3570

ADAPTOR

24

20G-68-K1272

BRACKET

|24

20G-68-K1271

BRACKET

25

01010-51030

BOLT

26

01643-31032

WASHER

27

20G-68-K3120

BRACKET

28

01010-51030

BOLT

29

01643-31032

WASHER

30

20G-68-K3110

TANK,AIR

31

20G-68-K4390

VALVE,AUTOMTIC

32

20G-62-K1380

WASHER

33

20G-68-K4620

ADAPTOR

34

20G-68-K4630

WASHER

35

20G-68-K3631

SWITCH,LOW PRESSURE
