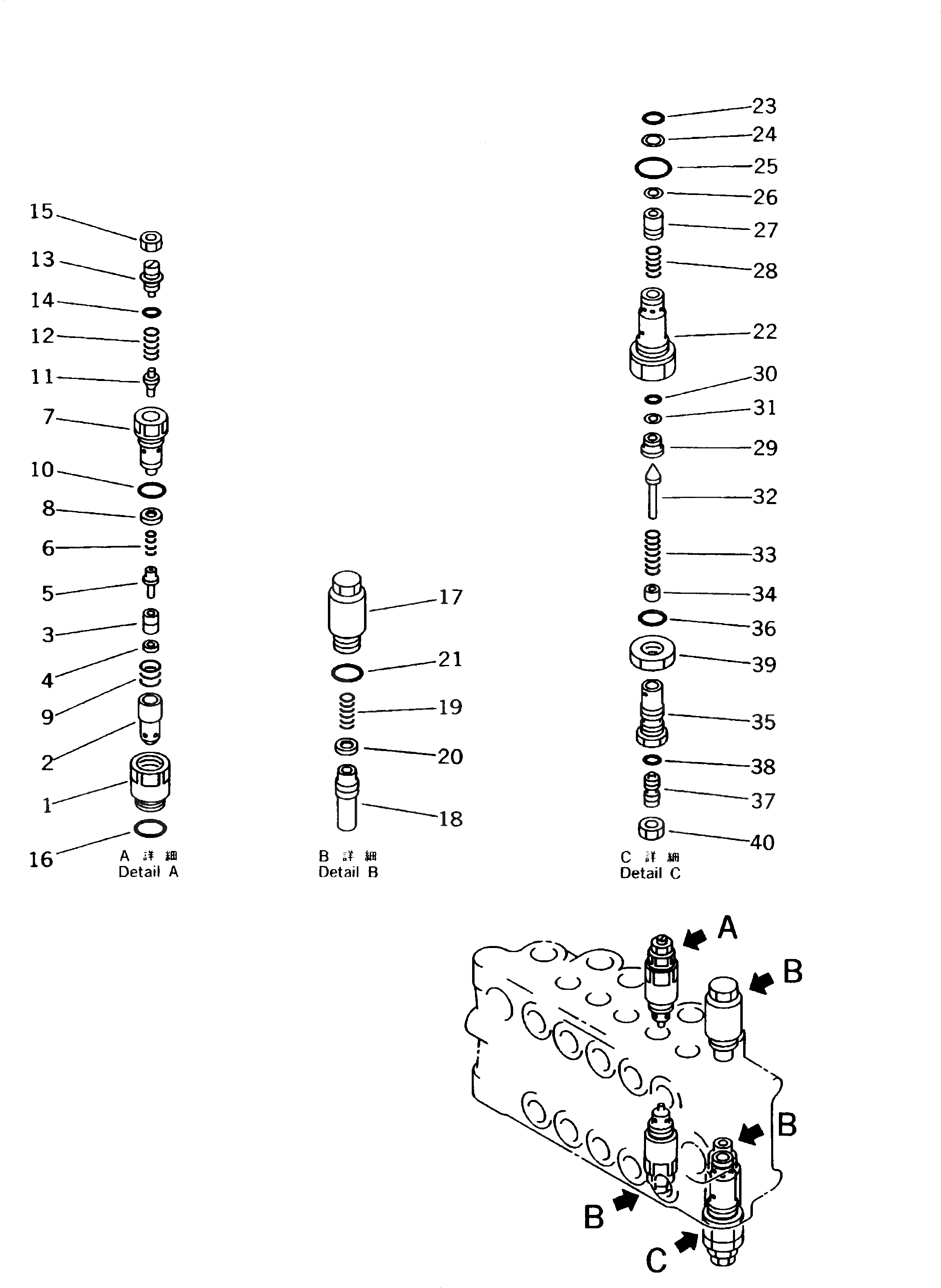

Запчасти Komatsu PW170-5K ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-85-11100

VALVE ASS'Y,R.H.

|1

709-70-74302

VALVE ASS'Y,SUCTION AND SAFETY

1

709-70-71112

SLEEVE

2

SLEEVE

3

POPPET

4

SEAL

5

PISTON

6

709-70-71210

SPRING

7

PLUG

8

SEAL

9

709-70-71220

SPRING

10

07002-02434

O-RING

11

POPPET

12

SPRING

13

SCREW

14

O-RING

15

NUT

16

709-25-11390

O-RING

|17

700-81-81000

VALVE ASS'Y,SUCTION

17

700-80-62310

SLEEVE

18

VALVE

19

700-80-62250

SPRING

20

SEAL

21

07002-03034

O-RING

|22

709-80-52900

RELIEF VALVE ASS'Y,RELIEF

22

SLEEVE

23

700-13-31161

O-RING

24

700-80-51190

RING,BACK-UP

25

07002-03334

O-RING

26

700-80-51350

RING,SNAP

27

VALVE

28

700-80-51390

SPRING

29

700-80-51740

SEAT

30

07000-22012

O-RING

31

07001-02012

RING,BACK-UP

32

700-80-61190

POPPET

33

709-20-51231

SPRING

34

709-90-51260

RETAINER

35

700-80-51360

HOLDER

36

07002-02434

O-RING

37

700-80-51630

SCREW

38

07000-02011

O-RING

39

07239-12410

NUT

40

01582-11411

NUT
