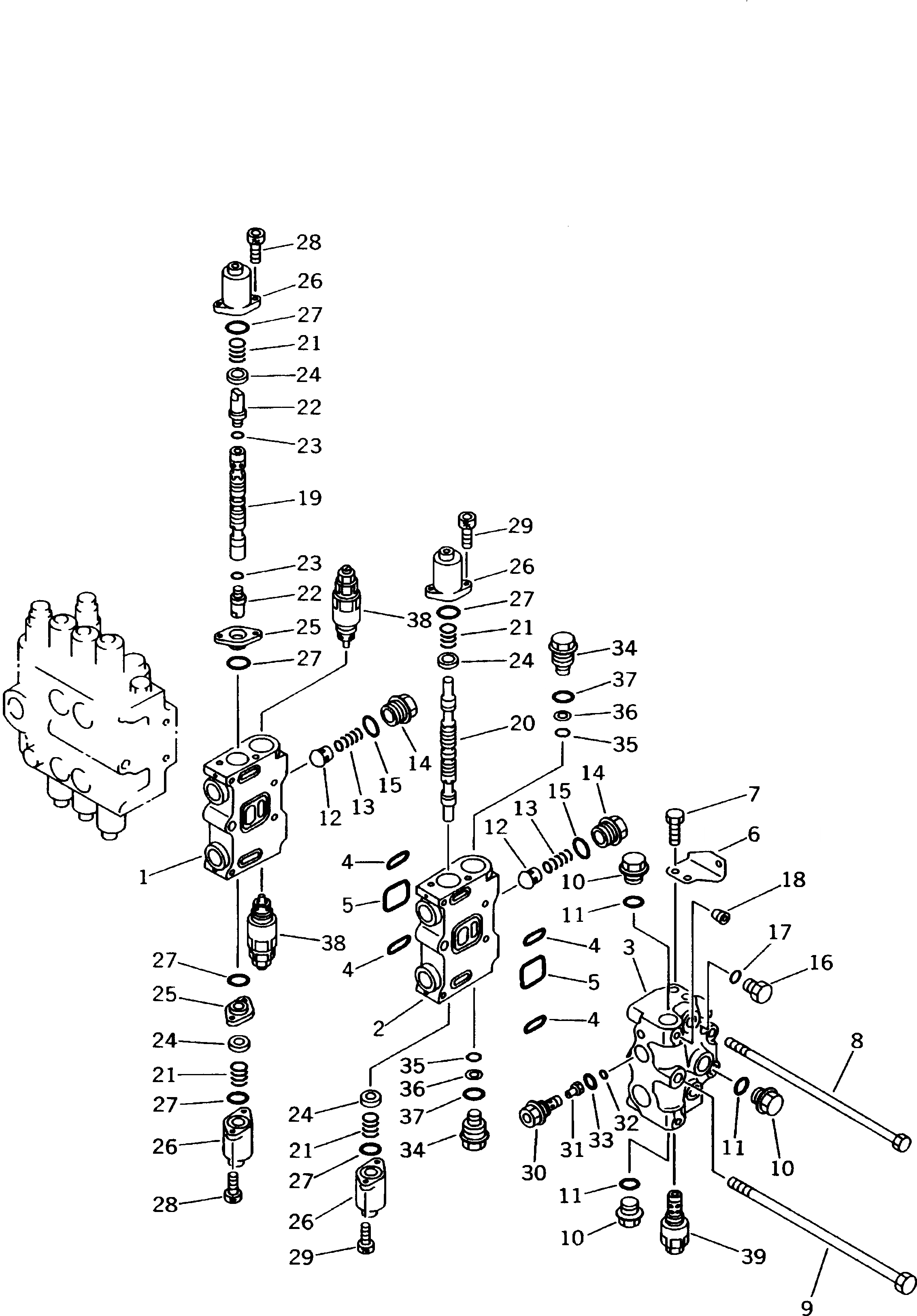

Запчасти Komatsu PW170-5K ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-86-11401

VALVE ASS'Y,L.H.

1

BLOCK,VALVE

2

BLOCK,VALVE

3

COVER,VALVE

4

07000-03038

O-RING

5

07000-13050

O-RING

6

700-84-16420

BRACKET

7

01010-51020

BOLT

8

700-87-11110

BOLT

9

700-87-11120

BOLT

10

709-74-91860

PLUG

11

07002-12434

O-RING

12

700-42-31460

VALVE

13

700-42-31470

SPRING

14

700-84-11320

PLUG

15

07002-13034

O-RING

16

07040-11409

PLUG

17

07002-01423

O-RING

18

07043-70108

PLUG

19

SPOOL,ARM LOW

20

SPOOL,CHASSIS ATTACHMENT

21

700-84-15740

SPRING

22

700-84-13790

JOINT

23

07002-11223

O-RING

24

700-84-13781

RETAINER

25

700-84-13490

PLATE

26

700-84-12510

CASE

27

700-84-11240

O-RING

28

01252-30625

BOLT

29

01252-30616

BOLT

|30

709-70-91300

ORIFICE ASS'Y

30

ORIFICE

31

SENSOR

32

07000-02014

O-RING

33

07002-02434

O-RING

34

709-74-91510

PLUG

35

07000-11009

O-RING

36

07001-01009

RING

37

709-25-11390

O-RING

38

709-70-74402

VALVE ASS'Y,SUCTION AND SAFETY

39

709-70-55400

RELIEF VALVE ASS'Y,RELIEF
