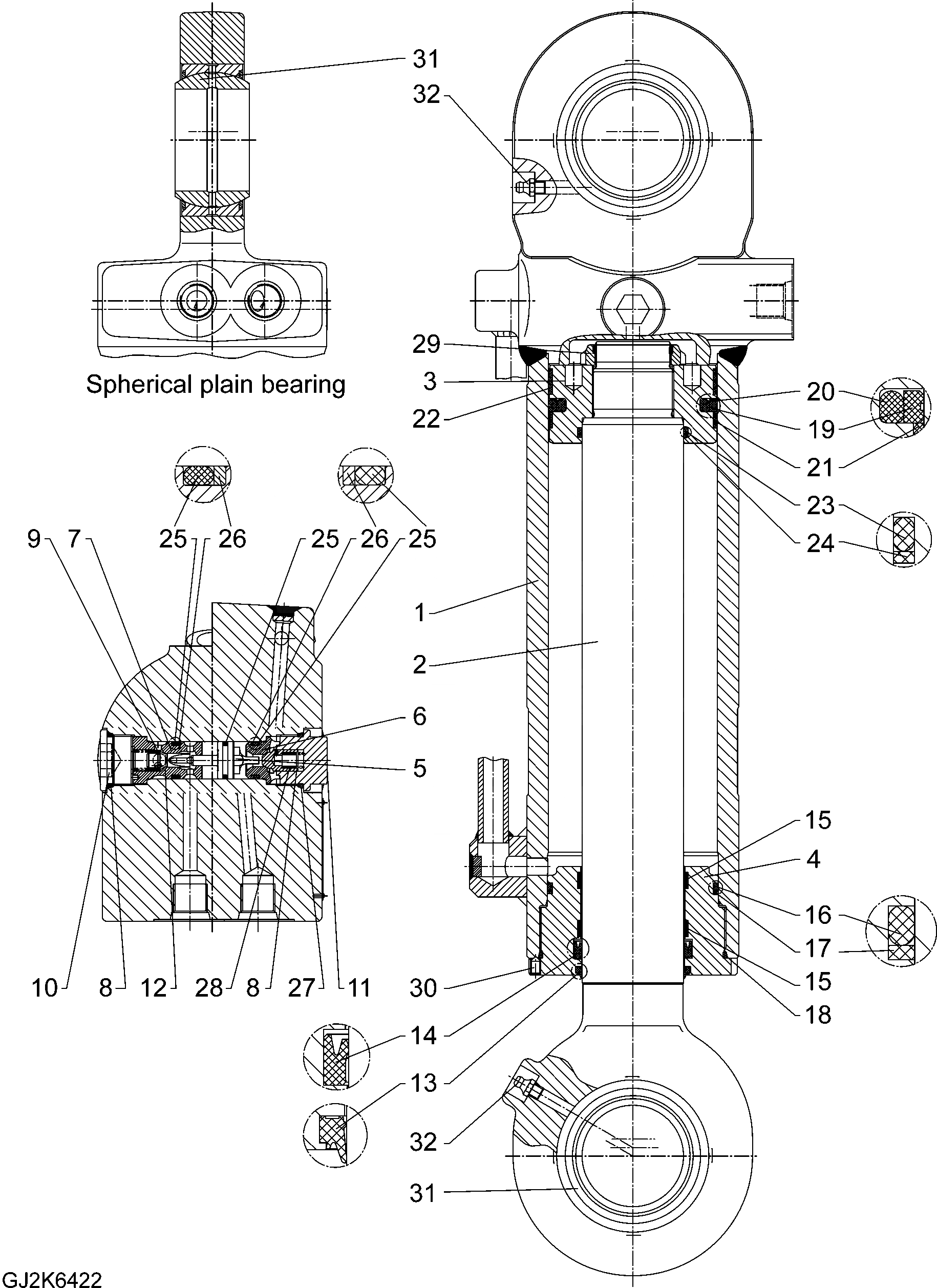

Запчасти Komatsu PW160-8 ЗАДН. ОТВАЛ, ЦИЛИНДР, ВНУТР. ЧАСТИ ЗАДН. ОТВАЛ

|$1

20G-61-31121

Cylinder Assembly

1

20K-62-38140

Cylinder

2

20K-62-38120

Piston Rod

3

20E-62-K6170

Piston

4

20K-62-38130

Guide

5

20K-61-31520

Spool

6

20K-61-31510

Seat

7

20K-61-31490

Seat

8

20K-61-31480

Poppet

9

20K-61-31470

Bolt

10

20K-61-31460

Plug

11

20K-61-31450

Plug

12

20K-61-31260

Spring

13

20K-61-31440

Wiper, (Kit : K06)

14

20K-61-31430

O-Ring, (Kit : K06)

15

20K-61-31420

Ring, (Kit : K06)

16

20E-62-K6580

O-Ring, (Kit : K06)

17

20E-62-K6590

Back-Up Ring, (Kit : K06)

18

20E-62-K6610

O-Ring, (Kit : K06)

19

20E-62-K6530

Ring, (Kit : K06)

20

20E-62-K6540

O-Ring, (Kit : K06)

21

20E-62-K6550

Back-Up Ring, (Kit : K06)

22

20E-62-K6560

Piston Ring, (Kit : K06)

23

20K-61-31330

O-Ring, (Kit : K06)

24

20K-61-31320

Ring, (Kit : K06)

25

20K-61-31310

O-Ring, (Kit : K06)

26

20K-61-31290

Ring, (Kit : K06)

27

20K-61-31280

O-Ring, (Kit : K06)

28

20K-61-31270

Spring

29

20K-61-31250

Nut

30

20K-61-31240

Screw

31

20K-61-31230

Bearing

32

20K-61-31220

Nipple
