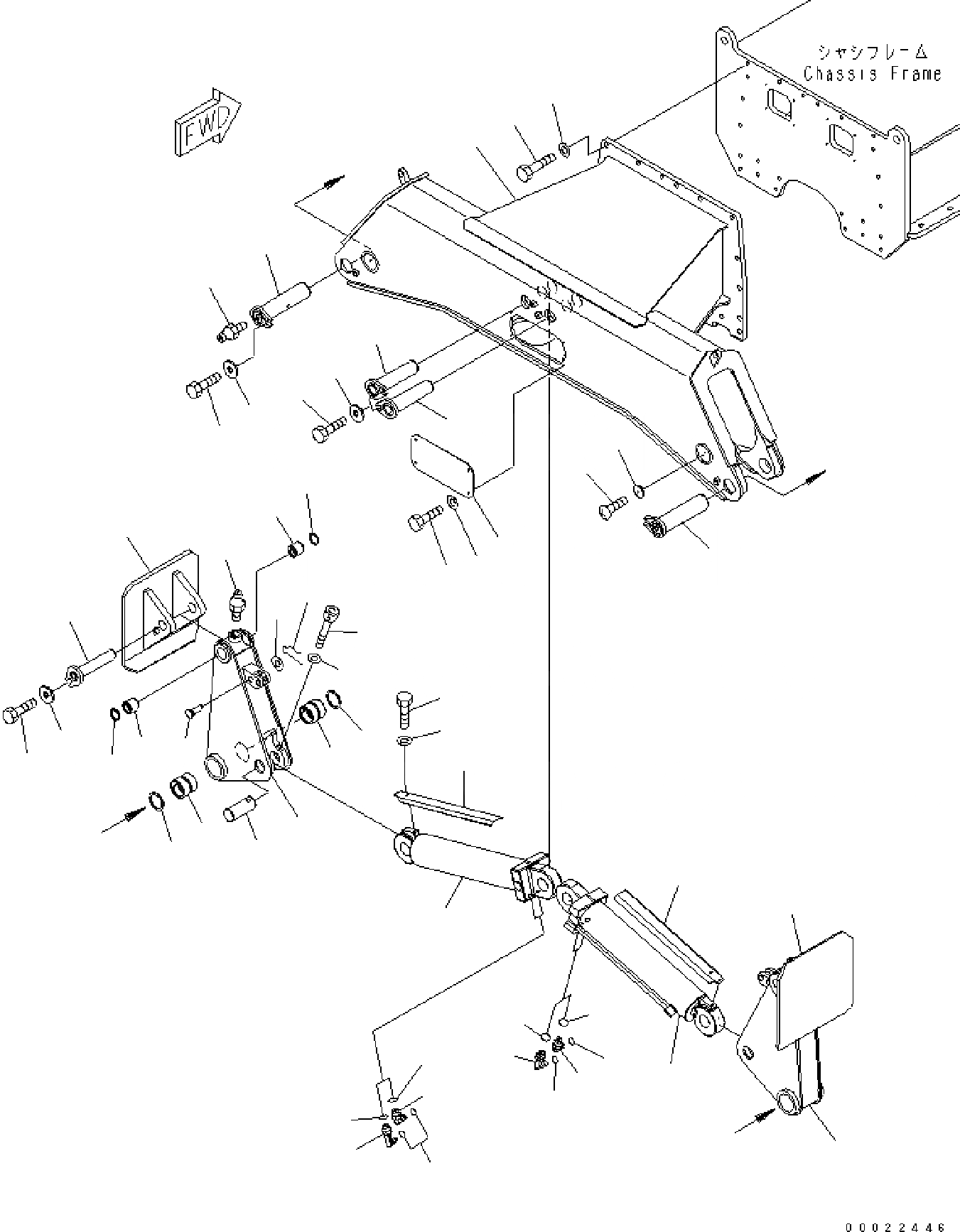

Запчасти Komatsu PW160-7E0 ЗАДН. ОПОРА S ПОДВЕСКА И КОЛЕСА

1

20G-910-3875

FRAME ASSEMBLY

2

20K-910-4210

COVER

3

01010-80825

BOLT

4

01643-30823

WASHER

5

01010-82060

BOLT

6

01643-32060

WASHER

|$7

20G-910-3713

LEG ASSEMBLY

7

OUTRIGGER LEG

8

203-70-56130

BUSHING

9

07145-00070

SEAL

10

20G-47-13180

BUSHING

11

07145-00045

SEAL, DUST

12

07020-00000

FITTING

13

20E-47-K1560

PIN

14

04052-11664

PIN

15

01641-21626

WASHER

16

20G-61-31131

CYLINDER ASSEMBLY

16

20G-61-31130

CYLINDER ASSEMBLY

17

02782-10315

ELBOW

18

02782-10316

ELBOW

19

02896-61009

O-RING

20

07002-62034

O-RING

21

20E-61-K2581

PLATE

22

01010-81020

BOLT

23

01643-31032

WASHER

24

20G-910-3811

FOOT

25

20G-910-4180

FOOT

26

20G-910-3861

PIN

27

20K-910-3841

PIN

28

20K-910-3851

PIN

29

20E-47-K1430

PIN

30

01010-81016

BOLT

31

144-854-1890

WASHER

32

01253-41210

BOLT

33

01641-21223

WASHER

34

07020-00000

FITTING

35

01010-81016

BOLT

36

01010-81016

BOLT

37

144-854-1890

WASHER

38

144-854-1890

WASHER

39

01220-40516

SCREW

40

20G-47-K1690

REFLECTOR
