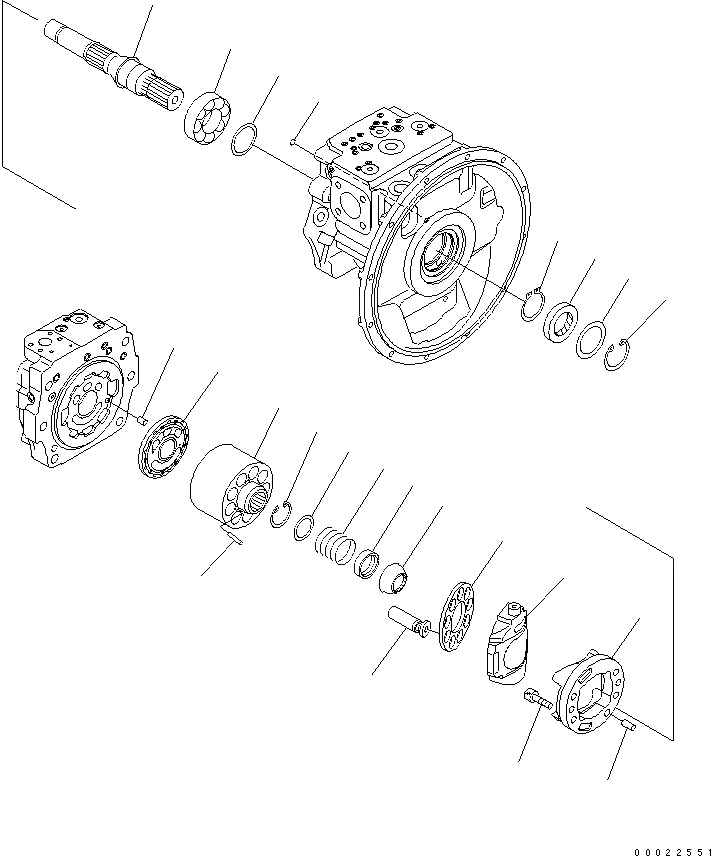

Запчасти Komatsu PW160-7 ОСНОВН. НАСОС (/7) Y ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$1

708-1G-00014

MAIN PUMP ASSEMBLY

|$3

708-1G-01014

PUMP SUB ASSEMBLY

1

708-1G-12110

SHAFT

2

708-2G-12251

BEARING

3

708-2G-05010

WASHER KIT

|$7

WASHER, 3.0MM

|$8

WASHER, 3.1MM

|$9

WASHER, 3.2MM

4

708-1F-12270

RING

5

708-2G-12220

SEAL

6

708-8H-32160

SPACER

7

04065-07825

RING

|$14

708-1G-04130

CYLINDER BLOCK ASSEMBLY

8

BLOCK

9

PLATE

10

708-18-13230

PIN

11

04065-05520

RING

12

708-2G-13131

SEAT

13

708-2G-13152

SPRING

14

708-2G-13141

SEAT

15

708-2G-13510

GUIDE

16

708-2H-23360

PIN

17

708-2G-13341

RETAINER

18

708-2G-13311

PISTON SUB ASSEMBLY

|$26

708-2G-04290

CRADLE SUB ASSEMBLY

19

CRADLE

20

CAM

21

04020-01434

PIN

22

07000-B1009

O-RING

23

01252-61230

BOLT
