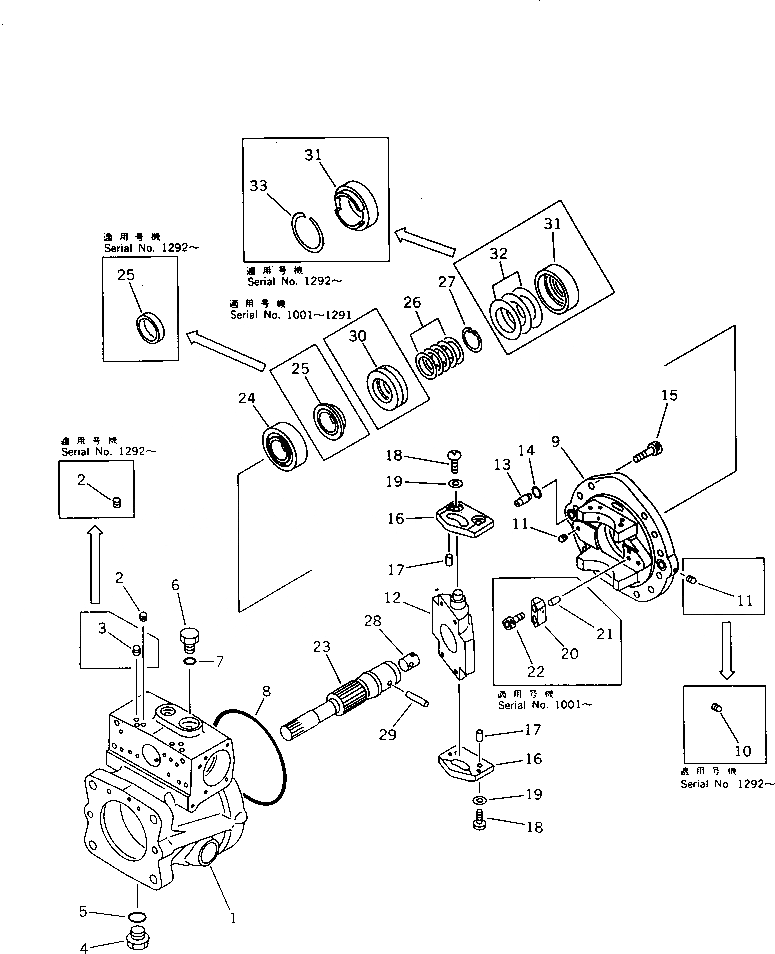

Запчасти Komatsu PW150-1 ГИДР. НАСОС.¤ ЗАДН. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
708-23-01021
PUMP ASS'Y,(HPV55+55)
|1
708-23-01020
PUMP ASS'Y,(HPV55+55)
|1
708-23-10201
PUMP ASS'Y,(HPV55+55)
|1
708-23-10200
PUMP ASS'Y,(HPV55+55)
|1
708-23-11202
.PUMP SUB ASS'Y
|1
708-23-11201
.PUMP SUB ASS'Y
|1
708-23-11200
.PUMP SUB ASS'Y
|1
708-23-00350
..CASE ASS'Y,REAR
1
...CASE,REAR
|1
...CASE,REAR
2
...PLUG
|2
...PLUG
3
...PLUG
4
07044-12412
..PLUG
5
07002-02434
..O-RING
6
720-68-19870
..PLUG
7
07002-01223
..O-RING
8
706-73-42370
..O-RING
|9
708-23-00370
..CRADLE ASS'Y,REAR
|9
708-23-00640
...CRADLE SUB ASS'Y,REAR
9
....CRADLE,REAR
|9
....CRADLE,REAR
10
....PLUG
11
..PLUG
|11
....PLUG
|11
....PLUG
|11
....PLUG
12
708-23-13410
...CAM
13
708-23-12330
..JOINT
|13
708-23-12330
..JOINT
14
07000-12015
..O-RING
|14
07000-12015
..O-RING
15
708-25-12350
..BOLT
16
708-23-12340
..PLATE
17
708-23-12370
..PIN
|17
04020-00616
..PIN
18
708-23-12350
..SCREW
19
01643-30823
..WASHER
20
708-23-12360
..STOPPER
21
04020-00616
..PIN,DOWEL
22
708-25-12380
..BOLT
23
708-23-12720
..SHAFT,REAR
24
708-23-12751
..BEARING
|24
708-23-12750
..BEARING
25
708-23-12670
..COLLAR
|25
708-23-12780
..RETAINER
26
708-23-05011
..WASHER KIT
26
708-23-05010
..WASHER KIT
|26
...WASHER¤ 2.60MM
|26
...WASHER¤ 2.70MM
|26
...WASHER¤ 2.80MM
|26
...WASHER¤ 2.50MM
|26
...WASHER¤ 2.90MM
27
708-23-12840
..RING,SNAP
28
708-23-12930
..COUPLING
29
708-23-12940
..PIN
30
06000-51109
..BEARING
31
708-23-12650
..RETAINER
|31
708-23-12950
..RETAINER
32
708-23-05070
..SHIM KIT
|32
...SHIM
|32
...SHIM
|32
...SHIM
33
708-23-12660
..RING
Выбрано товаров: 64
