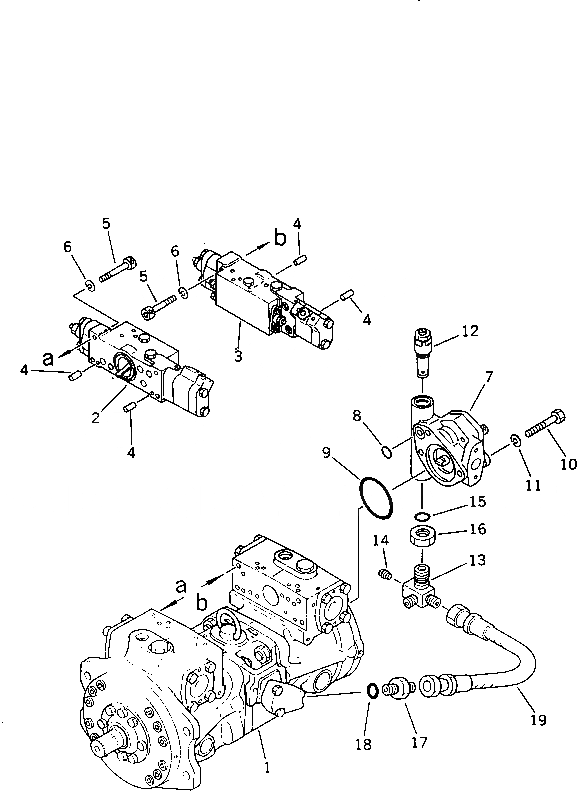

Запчасти Komatsu PW150-1 ГИДР. НАСОС.¤ КОМПОНЕНТЫ (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|1
708-23-01021
PUMP ASS'Y,(HPV55+55)
|1
708-23-01020
PUMP ASS'Y,(HPV55+55)
|1
708-23-10201
PUMP ASS'Y,(HPV55+55)
|1
708-23-10200
PUMP ASS'Y,(HPV55+55)
1
708-23-11202
PUMP SUB ASS'Y
|1
708-23-11201
PUMP SUB ASS'Y
|1
708-23-11200
PUMP SUB ASS'Y
2
708-23-07840
SERVO VALVE ASS'Y,FRONT
|2
708-23-15801
SERVO VALVE ASS'Y,FRONT
|2
708-23-15800
SERVO VALVE ASS'Y,FRONT
3
708-23-07940
SERVO VALVE ASS'Y,REAR
|3
708-23-16801
SERVO VALVE ASS'Y,REAR
|3
708-23-16800
SERVO VALVE ASS'Y,REAR
4
04020-00616
PIN,DOWEL
5
708-25-19130
BOLT
6
01602-20825
WASHER,SPRING
7
704-24-26401
PUMP ASS'Y,(BAR20)
|7
704-24-26400
PUMP ASS'Y,(BAR20)
8
07000-02018
O-RING
9
07000-02075
O-RING
10
01010-51085
BOLT
11
01602-01030
WASHER,SPRING
12
708-23-14801
VALVE ASS'Y
|12
708-23-14800
VALVE ASS'Y
13
708-23-19110
ELBOW
14
07042-30108
PLUG
15
07002-02434
O-RING
16
07239-12410
NUT
17
07230-20315
UNION
18
07002-02034
O-RING
19
07102-20303
HOSE
Выбрано товаров: 31
