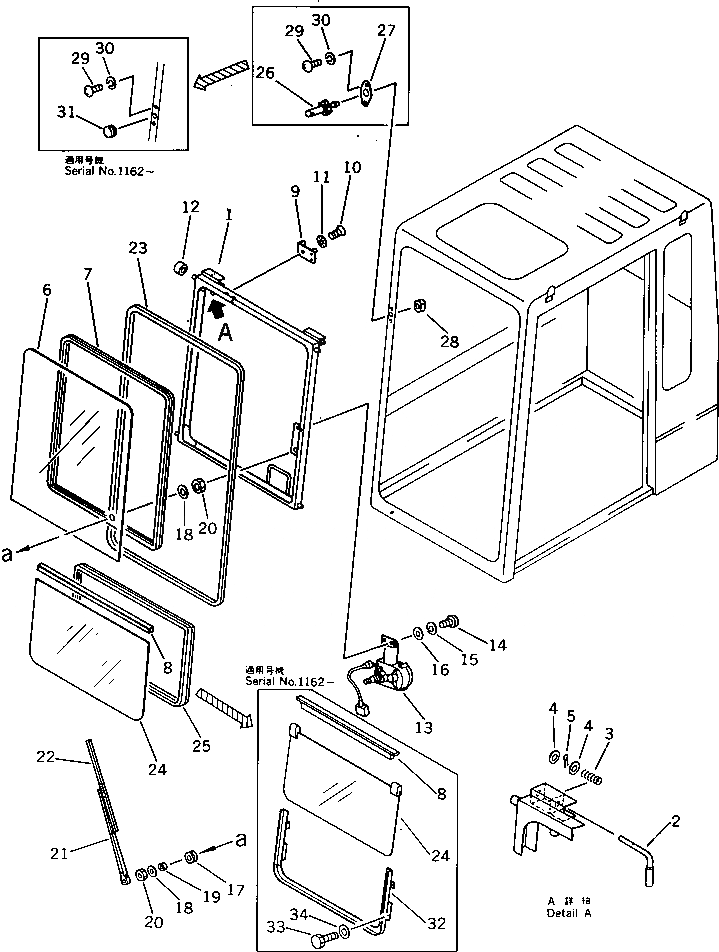

Запчасти Komatsu PW150-1 КАБИНА (/) ОСНОВНАЯ РАМА¤ ШАССИ И КАБИНА

|1

20G-54-00023

OPERATOR'S CAB ASS'Y

|1

20G-54-00022

OPERATOR'S CAB ASS'Y

|1

20G-54-00021

OPERATOR'S CAB ASS'Y

|1

20G-54-00020

OPERATOR'S CAB ASS'Y

|1

205-54-00261

FRONT WINDOW ASS'Y

|1

20G-54-00031

FRONT WINDOW ASS'Y

1

205-54-71132

WINDOW,FRONT

|1

205-54-43471

WINDOW,FRONT

2

205-54-72650

PIN

|2

203-54-43650

PIN

3

205-54-66330

SPRING

4

01641-21016

WASHER

5

04050-13018

PIN,COTTER

6

205-54-71211

GLASS

|6

203-54-43560

GLASS

7

205-54-71520

STRIP,WEATHER

|7

203-54-43510

STRIP,WEATHER

8

205-54-71621

SEAL

|8

203-54-43530

SEAL

9

205-54-72570

STRIKER

|9

566-54-24511

STRIKER

10

01224-40820

SCREW

11

205-54-72750

WASHER,LOCK

12

205-54-72590

ROLLER

13

203-06-41720

WIPER MOTOR ASS'Y

14

01220-40516

SCREW

15

01601-20513

WASHER,SPRING

16

01641-20508

WASHER

17

205-06-62230

GROMMET

18

205-06-62270

WASHER

19

205-06-62240

COLLAR

20

205-06-62250

NUT

21

205-06-71420

ARM

21A

ND857199-0100

PIN KIT

22

205-06-62570

BLADE

23

205-54-71510

TRIM

|23

203-54-43520

SEAL

24

205-54-76310

GLASS ASS'Y

|24

203-54-43620

GLASS ASS'Y

25

203-54-43570

STRIP,STRIP

26

205-06-61220

NOZZLE ASS'Y

27

205-06-71590

BRACKET

28

205-06-71610

NUT

29

01220-40412

SCREW

30

01601-20410

WASHER,SPRING

31

09415-01008

CAP

32

205-54-72621

BRACKET

33

01010-50616

BOLT

34

01643-30623

WASHER
