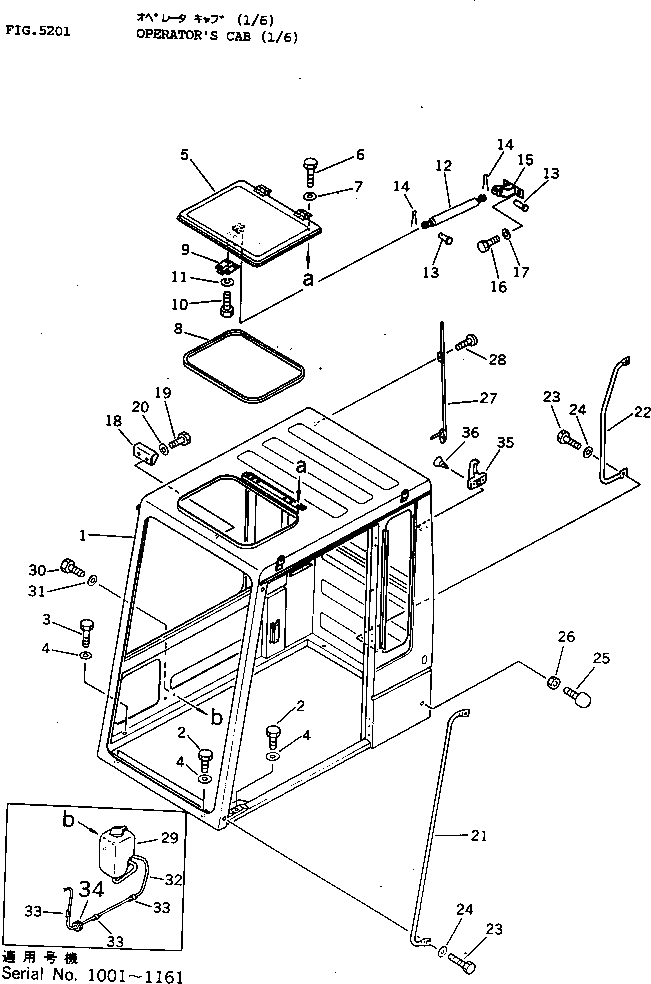

Запчасти Komatsu PW150-1 КАБИНА (/) ОСНОВНАЯ РАМА¤ ШАССИ И КАБИНА

|1

20G-54-00023

OPERATOR'S CAB ASS'Y

|1

20G-54-00022

OPERATOR'S CAB ASS'Y

|1

20G-54-00021

OPERATOR'S CAB ASS'Y

|1

20G-54-00020

OPERATOR'S CAB ASS'Y

1

205-54-77311

CAB

|1

20G-54-12170

CAB

2

01010-51245

BOLT

3

01010-51265

BOLT

4

01643-31232

WASHER

5

205-54-71142

COVER

|5

203-54-43410

COVER

6

01010-50612

BOLT

7

01643-30623

WASHER

8

205-54-72470

LOCK ASS'Y

|8

203-54-43460

TRIM

9

205-54-66190

LOCK ASS'Y

10

01010-50616

BOLT

11

01643-30623

WASHER

12

205-54-63650

GAS SPRING ASS'Y

13

04205-10825

PIN

14

04050-12012

PIN,COTTER

15

205-54-72511

BRACKET

|15

203-54-43640

BRACKET

16

01010-50616

BOLT

|16

01010-50816

BOLT

17

01643-30623

WASHER

|17

01643-30823

WASHER

18

205-54-72520

BRACKET

|18

203-54-43490

BRACKET

19

01010-50616

BOLT

20

01643-30623

WASHER

21

20G-54-12160

GRIP

22

205-54-72541

GRIP

|22

203-54-43431

GRIP

|22

203-54-43430

GRIP

23

01010-51025

BOLT

24

01643-31032

WASHER

25

09453-00002

STOPPER

26

01580-11210

NUT

27

205-06-62350

ANTENNA ASS'Y

28

01220-40420

SCREW

29

206-06-15230

TANK

30

01010-50612

BOLT

31

01643-30623

WASHER

32

205-06-71470

HOSE

33

205-54-72710

CLIP

34

201-54-22890

GROMMET

35

205-54-51250

HANGER

36

01370-00412

SCREW

|36

01381-10420

SCREW
