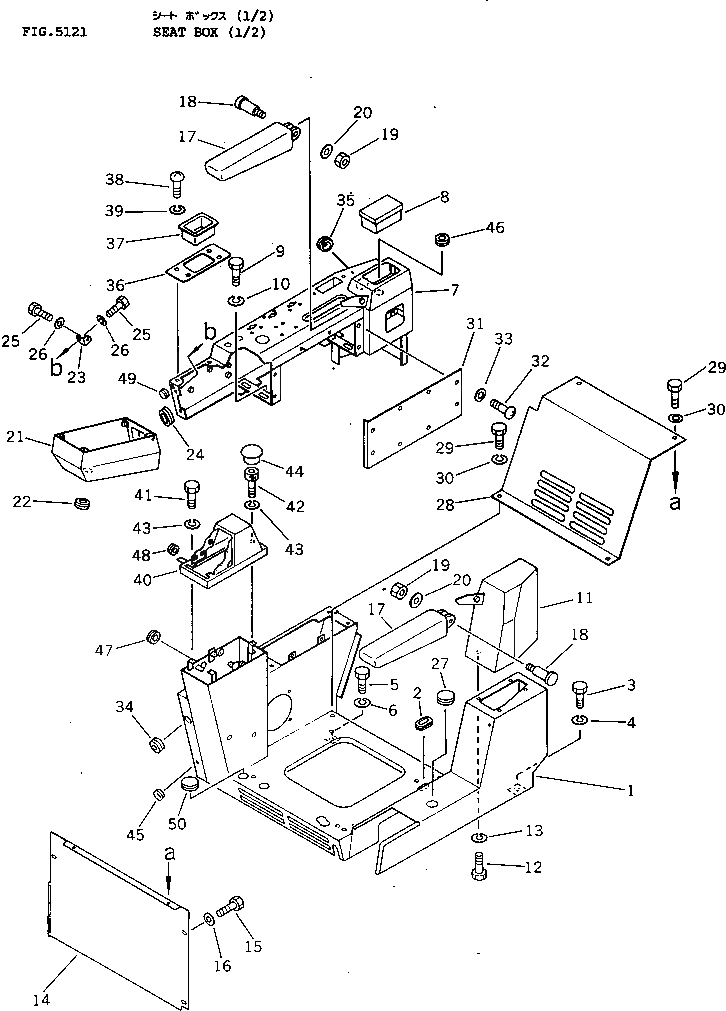

Запчасти Komatsu PW150-1 СИДЕНЬЕ КОРПУС (/) ОСНОВНАЯ РАМА¤ ШАССИ И КАБИНА

1

20G-54-13113

BOX

2

144-06-12150

GROMMET

3

01010-51025

BOLT

4

01602-21030

WASHER,SPRING

5

01010-51225

BOLT

6

01602-21236

WASHER,SPRING

7

20G-54-13123

BOX,R.H.

8

20G-54-13270

COVER,FUSE

9

01010-50820

BOLT

10

01602-20825

WASHER,SPRING

11

20G-54-13132

COVER,L.H.

12

01010-51025

BOLT

13

01602-21030

WASHER,SPRING

14

20G-54-13262

PLATE

15

01010-50820

BOLT

16

01643-30823

WASHER

17

20G-54-13171

REST,ARM

18

20G-54-13181

PIN

19

01580-01008

NUT

20

01643-31032

WASHER

21

20G-54-13311

COVER

22

08037-02512

GROMMET

23

20G-54-13321

PLATE

24

176-911-4160

GROMMET

|24

176-911-4160

GROMMET

25

01010-50612

BOLT

26

01602-20619

WASHER,SPRING

27

09415-03614

CAP

28

20G-54-13163

PLATE

29

01010-50816

BOLT

30

01602-20823

WASHER

31

20G-54-13331

PLATE

32

01220-40816

SCREW

33

01642-20810

WASHER

34

08037-02512

GROMMET

35

08037-03614

GROMMET

36

20G-54-13410

COVER

37

20G-54-13420

ASHTRAY

38

01220-40616

SCREW

39

01602-20619

WASHER,SPRING

40

20G-54-13361

COVER,R.H.

41

01010-50616

BOLT

42

01252-40612

BOLT

43

01602-20619

WASHER,SPRING

44

7861-21-1190

CAP

45

09415-00506

CAP

46

08037-02512

GROMMET

47

08037-01610

GROMMET

48

08037-01008

GROMMET

49

09415-01008

CAP

50

09415-02515

CAP
