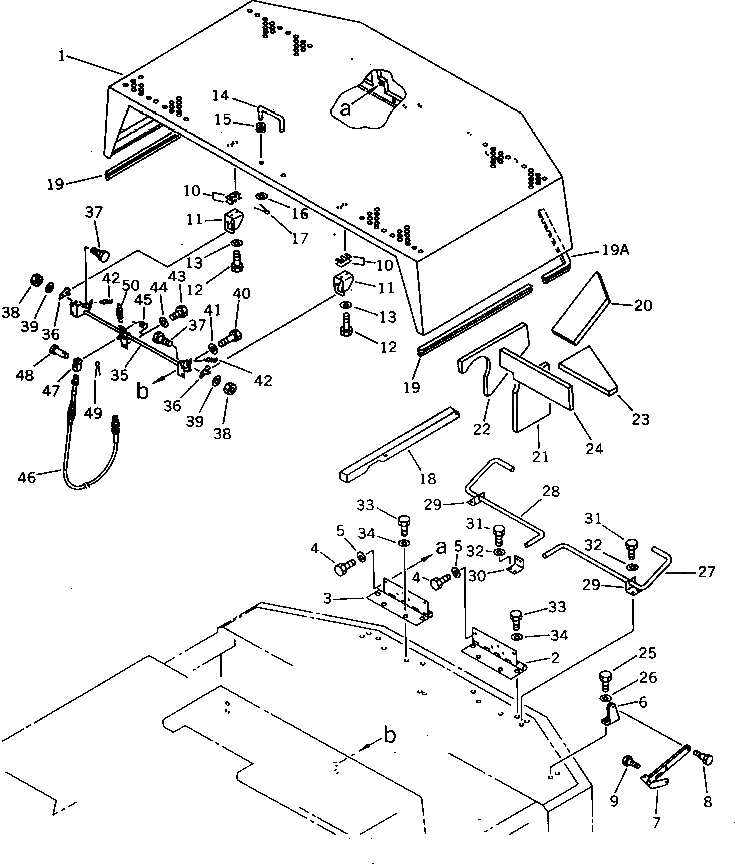

Запчасти Komatsu PW150-1 MACHINERY ОБСТАНОВКА (/)(№-7) ОСНОВНАЯ РАМА¤ ШАССИ И КАБИНА

|1

20G-54-00010

HOOD ASS'Y

1

HOOD

2

203-54-44950

HINGE,L.H.

3

203-54-44960

HINGE,R.H.

4

01010-51020

BOLT

5

01643-31032

WASHER

6

20G-54-11910

BRACKET

7

20R-54-21430

STAY

8

20R-54-21440

BOLT

9

20R-54-21450

BOLT

10

203-54-44940

PLATE

11

203-54-42350

BRACKET

12

01010-51025

BOLT

13

01643-31032

WASHER

14

20G-54-11590

BAR

15

03037-01008

GROMMET

16

01643-31032

WASHER

17

04050-12020

PIN,COTTER

18

20G-54-11530

SHEET

19

20G-54-11680

TRIM

19A

20G-54-11690

TRIM

20

20G-54-11710

SHEET

21

20G-54-11730

SHEET

22

20G-54-11740

SHEET

23

20G-54-11860

SHEET

24

20G-54-11870

SHEET

25

01010-51025

BOLT

26

01643-31032

WASHER

27

21K-54-26250

BAR

|27

203-54-42250

BAR

28

21K-54-26260

BAR

|28

203-54-42260

BAR

29

203-54-42270

PLATE

30

203-54-42280

PLATE

31

01010-51025

BOLT

32

01543-31032

WASHER

33

01010-51020

BOLT

34

01643-31032

WASHER

35

20G-54-11771

LEVER

36

203-54-42320

LEVER

37

20T-54-26310

BOLT

38

01580-11210

NUT

39

01643-31232

WASHER

40

01010-51040

BOLT

41

01643-31032

WASHER

42

203-54-42340

SPRING

43

01010-51020

BOLT

44

01643-31032

WASHER

45

09467-00002

SPRING

46

20G-54-11790

CABLE

47

04210-20500

YOKE

48

04205-10514

PIN

49

04050-11210

PIN,COTTER

50

145-43-36550

SPRING
