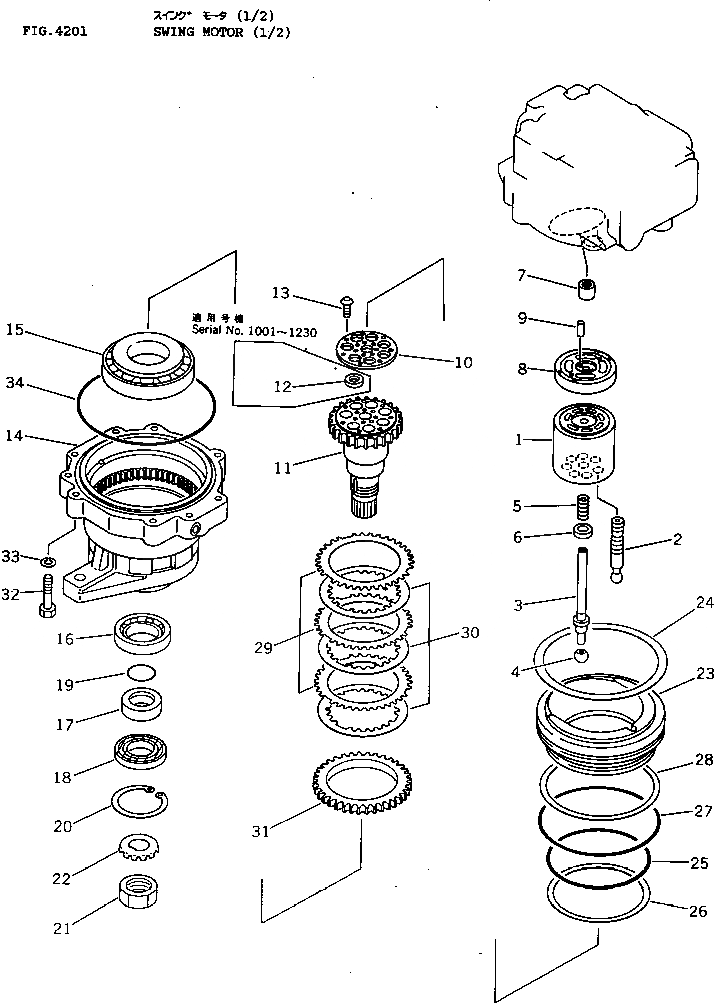

Запчасти Komatsu PW150-1 МОТОР ПОВОРОТА (/) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯ

|1

706-75-11502

SWING MOTOR ASS'Y

|1

706-75-11501

SWING MOTOR ASS'Y

|1

706-75-11500

SWING MOTOR ASS'Y

1

706-75-41091

BLOCK,CYLINDER

2

706-73-41163

PISTON ASS'Y

3

706-75-42080

SHAFT,CENTER

4

706-75-41220

BALL,CENTER

5

706-75-41110

SPRING

6

706-75-41130

RING,CENTER

7

706-75-40010

BEARING

8

706-75-42840

PLATE,VALVE

9

04020-00820

PIN,DOWEL

10

706-75-42260

RETAINER

|10

706-75-41263

RETAINER

11

708-75-42960

SHAFT,DRIVE

|11

706-75-42960

SHAFT,DRIVE

12

706-75-41251

HOLDER

13

706-75-42270

SCREW

|13

706-75-41271

SCREW

14

706-75-42051

CASE,BRAKE

|14

706-75-42050

CASE,BRAKE

15

706-75-42880

BEARING

16

706-75-40890

BEARING

17

706-75-42910

RING

18

706-76-40920

SEAL,OIL

19

07000-03040

O-RING

20

04065-09030

RING,SNAP

21

01530-03912

NUT

22

706-75-40940

WASHER,LOCK

23

706-75-9148

PISTON,BRAKE

|23

706-75-91480

PISTON,BRAKE

24

706-75-91431

SPRING

|24

706-75-91430

SPRING

25

07000-15155

O-RING

26

07001-05155

RING,BACK-UP

27

07000-15175

O-RING

28

07001-05175

RING,BACK-UP

29

706-75-91340

PLATE

30

706-75-91350

DISC

31

706-75-91330

PLATE

32

01010-51455

BOLT

|32

01010-51450

BOLT

33

01602-21442

WASHER,SPRING

34

706-75-42370

O-RING
