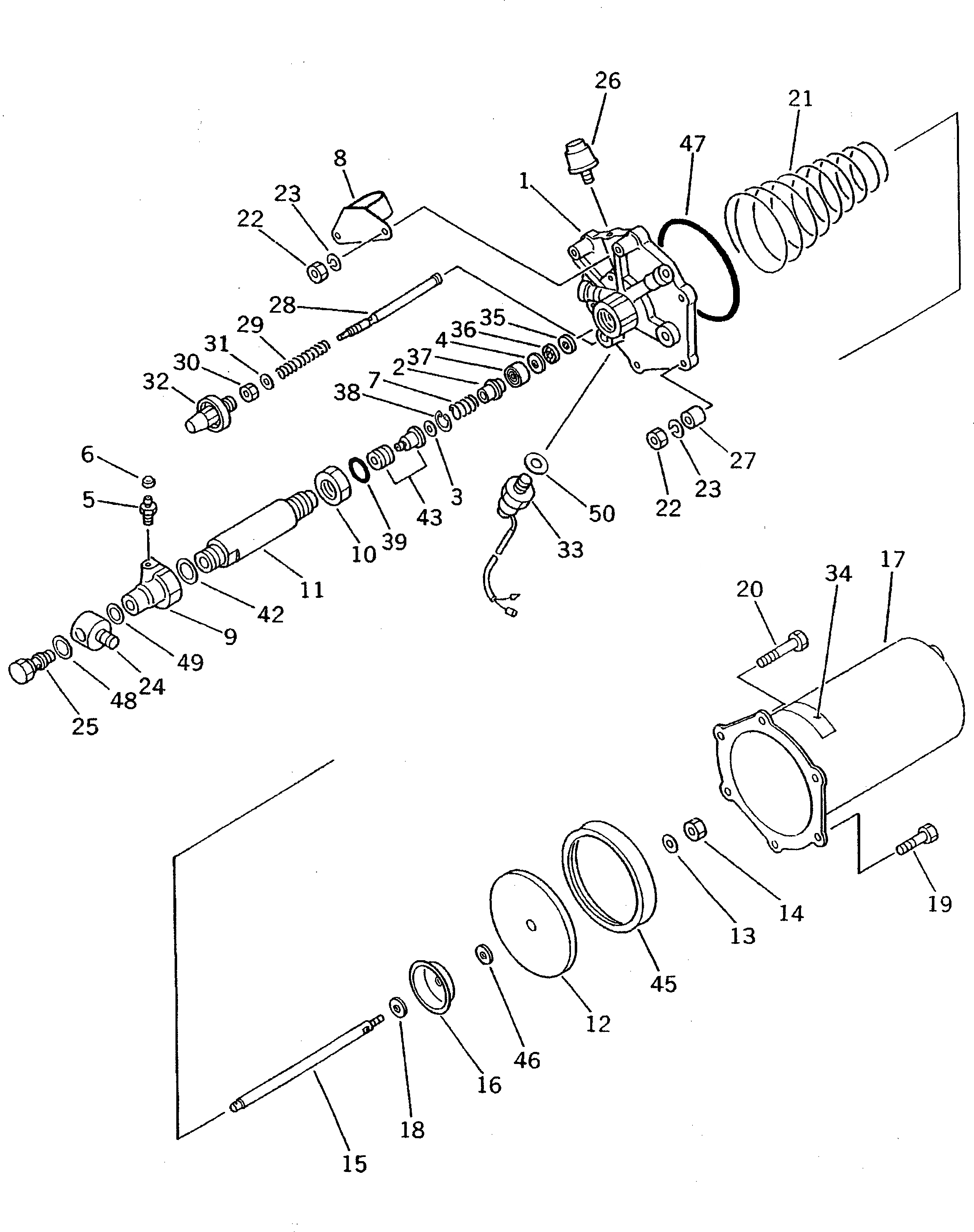

Запчасти Komatsu PW150-1 ВОЗД. МАЧТАER МОСТ¤ КОЛЕСА И СИСТЕМАУПРАВЛЕНИЯ ПОВОРОТОМ

|1

20G-68-11270

AIR MASTER ASS'Y

1

JK234-10155

END PLATE ASS'Y

2

JK234-21104

RETAINER

3

JK234-21205

WASHER

4

JK234-21401

WASHER

5

JK1192-0001

PLUG

6

JK1271-0022

PROTECTOR

7

JK1412-0156

SPRING

8

JK1345-0017

BRACKET

9

JK231-24805

CAP

10

JK1110-0435

NUT

11

JK234-25211

CYLINDER

12

JK234-26702

PLATE

13

JK1130-0646

WASHER

14

JK1110-0006

NUT

15

JK234-28510

ROD

16

JK234-29106

RETAINER

17

JK234-12094

SHELL ASS'Y

18

JK234-37000

PLATE

19

JK0031-1060

BOLT

20

JK0021-1055

BOLT

21

JK1414-0016

SPRING

22

JK0141-1008

NUT

23

JK0303-1025

WASHER

24

JK1205-0037

CONNECTOR

25

JK1206-0073

BOLT

26

JK234-12100

COVER

27

JK1264-0042

COLLAR

28

JK234-13507

ROD

29

JK1420-0030

SPRING

30

JK1113-0183

NUT

31

JK1132-0166

WASHER

32

JK234-29801

COVER

33

JK234-18910

SWITCH

34

JK1392-0182

PLATE,CAUTION

35

20D-68-12110

REPAIR KIT

|35

SEAL,OIL

36

SEAL,OIL

37

PACKING

38

RING,SNAP

39

O-RING

40

VALVE ASS'Y,(NOT SHOWN)(FOR PW100-1)

41

RING,(NOT SHOWN)(FOR PW100-1)

42

GASKET

43

PISTON ASS'Y

44

FELT,(NOT SHOWN)(FOR PW100-1)

45

PACKING

46

GASKET

47

O-RING

48

GASKET

49

GASKET

50

SHIM
