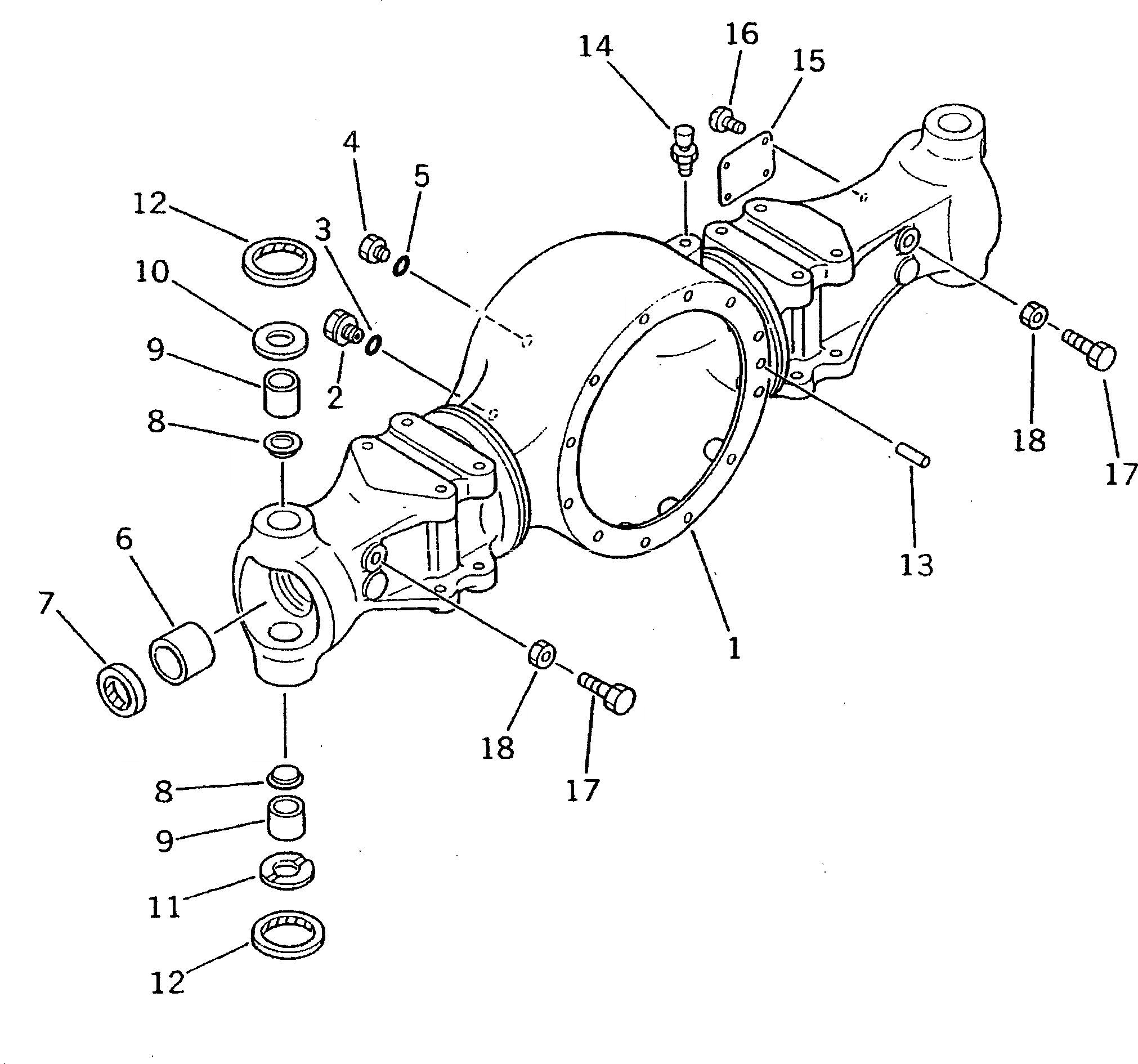

Запчасти Komatsu PW150-1 ПЕРЕДНИЙ МОСТ (КОЖУХ МОСТА) МОСТ¤ КОЛЕСА И СИСТЕМАУПРАВЛЕНИЯ ПОВОРОТОМ

|1

20G-22-20004

FRONT AXLE ASS'Y

|1

20G-22-20003

FRONT AXLE ASS'Y

|1

20G-22-20002

FRONT AXLE ASS'Y

|1

20G-22-20101

FRONT AXLE ASS'Y,(FOR NON ASBESTOS)

|1

20G-22-20100

FRONT AXLE ASS'Y,(FOR NON ASBESTOS)

1

20G-22-23102

HOUSING,FRONT

|1

20G-22-23101

HOUSING,FRONT

2

07044-12412

PLUG

3

07002-02434

O-RING

4

176-76-67150

PLUG

|4

07040-12414

PLUG

5

07002-02434

O-RING

6

20G-22-12570

BUSHING

7

20G-22-12590

SEAL,OIL

8

22X-23-23780

PLUG

9

22X-22-13450

BUSHING

10

22X-23-23470

WASHER

11

22X-23-23480

WASHER

12

22X-23-23790

SEAL

13

04020-01434

PIN,DOWEL

14

07030-01030

BREATHER

15

815-02-10110

PLATE¤ NAME

|15

22X-22-13171

PLATE¤ NAME,(LIMITED SUPPLY)

16

04418-03060

SCREW

17

20G-22-23160

BOLT,STOPPER

|17

20G-22-23151

BOLT,STOPPER

|17

20G-22-23160

BOLT,STOPPER (FOR NON ASBESTOS)

|17

20G-22-23151

BOLT,STOPPER (FOR NON ASBESTOS)

18

20G-22-23250

SPACER¤ 23MM

|18

20G-22-23260

SPACER¤ 26MM

|18

20G-22-23220

SPACER¤ 29MM

|18

20G-22-23230

SPACER¤ 32MM

|18

20G-22-23170

SPACER¤ 26MM

|18

20G-22-23180

SPACER¤ 29MM

|18

20G-22-23190

SPACER¤ 32MM

|18

01580-02016

NUT

|18

20G-22-23250

SPACER¤ 23MM,(FOR NON ASBESTOS)

|18

20G-22-23260

SPACER¤ 26MM,(FOR NON ASBESTOS)

|18

20G-22-23220

SPACER¤ 29MM,(FOR NON ASBESTOS)

|18

20G-22-23230

SPACER¤ 32MM,(FOR NON ASBESTOS)

|18

20G-22-23170

SPACER¤ 26MM,(FOR NON ASBESTOS)

|18

20G-22-23180

SPACER¤ 29MM,(FOR NON ASBESTOS)

|18

20G-22-23190

SPACER¤ 32MM,(FOR NON ASBESTOS)

|18

01580-02016

NUT,(FOR NON ASBESTOS)
