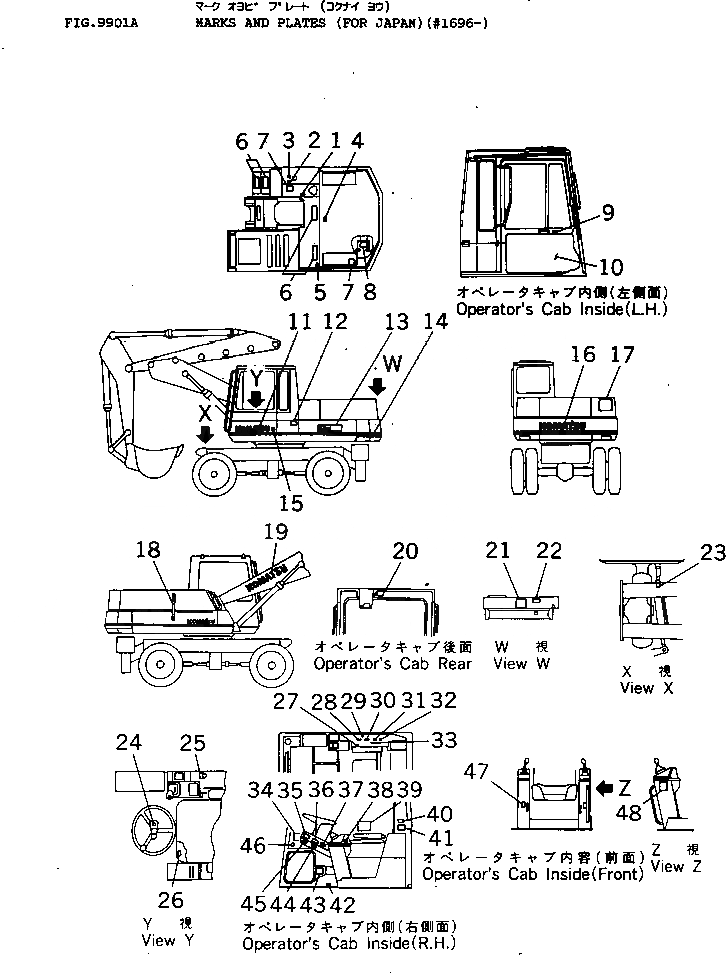

Запчасти Komatsu PW150-1 МАРКИРОВКА (ДЛЯ ЯПОН.)(№9-) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09653-00110

PLATE¤ SAFETY

2

09652-01121

PLATE¤ CAUTION

3

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK CAP

4

09667-00100

PLATE¤ SAFETY,ENGINE COVER

5

09152-00100

PLATE¤ SAFETY,AIR RESERVOIR

6

154-54-23260

SEAT,NONSKID

7

125-54-33451

SHEET,NONSKID

8

09641-00161

PLATE¤ INSTRUCTION,AIR CLEANER

9

205-00-71340

PLATE¤ OPERATING,DOOR LOCK

10

20G-54-12220

PAD,DOOR

11

09690-C0315

PLATE¤ MARK,KOMATSU

12

09602-01643

PLATE¤ NAME,PW150

|12

205-00-71540

SCREW

13

20G-00-11112

PLATE,PW150

14

142-54-16170

STRIPE,LINE

15

205-00-63770

PLATE,RUBBER¤ GUARD

16

09690-C0710

PLATE¤ MARK,KOMATSU

17

09133-00100

PLATE¤ SAFETY,KEEP OUT OF TURNING AREA

18

20G-00-11261

PLATE,FUEL LEVEL GAUGE

19

09690-B0560

PLATE¤ MARK,KOMATSU

20

205-00-63230

PLATE¤ CAUTION,AUTOMATIC LOCK

21

205-00-65150

PLATE¤ CAUTION,RADIATOR LEVEL

22

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

23

208-54-22990

PLATE¤ CAUTION

24

20G-06-12380

PLATE¤ OPERATING

25

09683-01060

PLATE¤ OPERATING,STARTING SWITCH

26

203-00-41180

PLATE¤ OPERATING,SYMBOL¤ HOOD OPEN

27

20G-00-11830

PLATE¤ OPERATING

28

09685-00002

PLATE¤ OPERATING,WORK EQUIPMENT

29

20G-00-11850

PLATE¤ OPERATING,SUSPENSION LOCK

30

20G-00-11870

PLATE¤ OPERATING,SYMBOL¤ SERVICE BRAKE

31

20G-00-11860

PLATE¤ OPERATING,SYMBOL¤PARKING BRAKE

32

20G-00-11280

PLATE,SWING BRAKE

33

362-54-17320

PLATE¤ OPERATING,SYMBOL¤ FUEL CONTROL LEVER

34

20G-00-11220

PLATE¤ OPERATING

35

205-00-63540

PLATE¤ CAUTION,CYLINDER AIR VENT VALVE

36

20G-00-11250

PLATE¤ CAUTION

37

09173-00100

PLATE¤ SAFETY,INSPECTION

38

20G-00-11460

PLATE,OPERATING

39

20G-00-11490

PLATE,CAUTION

40

09131-00100

PLATE¤ SAFETY,SWING LOCK LEVER

41

20G-00-11470

PLATE¤ CAUTION,BRAKE LOCK

42

09685-00002

PLATE¤ OPERATING,SWING LOCK LEVER

43

203-06-16120

PLATE¤ CAUTION,WASHER TANK

44

09651-00100

PLATE¤ SAFETY,BEFORE OPERATING

45

205-00-63250

PLATE¤ CAUTION,COLD WEATHER

46

205-00-52192

PLATE¤ CAUTION,WIPER MOTOR CONNECTOR

47

09685-00002

PLATE¤ OPERATING,LOCK SWITCH

48

20G-00-11241

PLATE¤ DATA
