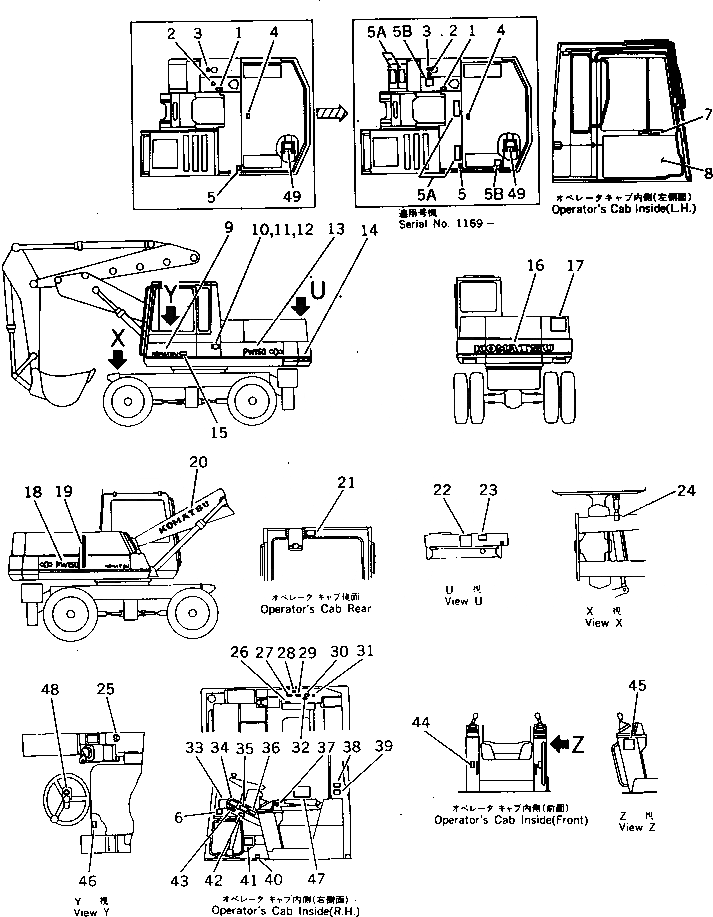

Запчасти Komatsu PW150-1 МАРКИРОВКА (ДЛЯ ЯПОН.)(№-9) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

09653-00110

PLATE¤ SAFETY

|1

09669-00003

PLATE¤ CAUTION

2

09652-01121

PLATE¤ CAUTION

|2

09669-00002

PLATE¤ CAUTION

3

09653-00100

PLATE¤ SAFETY,HYDRAULIC TANK CAP

4

09667-00100

PLATE¤ SAFETY,ENGINE COVER

5

09152-00100

PLATE¤ SAFETY,AIR RESERVOIR

5A

154-54-23260

SEAT,NONSKID

5B

125-54-33451

SHEET,NONSKID

6

205-00-52192

PLATE¤ CAUTION,WIPER MOTOR CONNECTOR

7

205-00-71340

PLATE¤ OPERATING,DOOR LOCK

8

20G-54-12220

PAD,DOOR

|8

20G-54-12212

PAD,DOOR

9

09690-50500

PLATE¤ MARK,KOMATSU

10

09602-01643

PLATE¤ NAME,PW150

11

205-00-71540

SCREW

|11

01220-60408

SCREW

12

01601-20410

WASHER,SPRING

13

20G-00-11111

PLATE,PW150

14

142-54-16170

STRIPE,LINE

15

205-00-63770

PLATE,RUBBER¤ GUARD

16

203-00-41131

PLATE¤ MARK,KOMATSU

17

09133-00100

PLATE¤ SAFETY,KEEP OUT OF TURNING AREA

18

20G-00-11121

PLATE,PW150

19

20G-00-11261

PLATE,FUEL LEVEL GAUGE

20

09690-41250

PLATE¤ MARK,KOMATSU

21

205-00-63230

PLATE¤ CAUTION,AUTOMATIC LOCK

22

205-00-65150

PLATE¤ CAUTION,RADIATOR LEVEL

|22

09650-01103

PLATE¤ INSTRUCTION,RADIATOR LEVEL

23

09668-00100

PLATE¤ SAFETY,RADIATOR CAP

24

208-54-22990

PLATE¤ CAUTION

25

09683-01060

PLATE¤ OPERATING,STARTING SWITCH

26

20G-00-11830

PLATE¤ OPERATING

27

09685-00002

PLATE¤ OPERATING,WORK EQUIPMENT

28

20G-00-11850

PLATE¤ OPERATING,SUSPENSION LOCK

29

20G-00-11870

PLATE¤ OPERATING,SYMBOL¤ SERVICE BRAKE

30

20G-00-11860

PLATE¤ OPERATING,SYMBOL¤PARKING BRAKE

31

20G-00-11280

PLATE,SWING BRAKE

32

362-54-17320

PLATE¤ OPERATING,SYMBOL¤ FUEL CONTROL LEVER

33

20G-00-11220

PLATE¤ OPERATING

34

205-00-63540

PLATE¤ CAUTION,CYLINDER AIR VENT VALVE

35

20G-00-11250

PLATE¤ CAUTION

36

09173-00100

PLATE¤ SAFETY,INSPECTION

37

20G-00-11460

PLATE,OPERATING

38

09131-00100

PLATE¤ SAFETY,SWING LOCK LEVER

39

20G-00-11470

PLATE¤ CAUTION,BRAKE LOCK

40

09685-00002

PLATE¤ OPERATING,SWING LOCK LEVER

41

203-06-16120

PLATE¤ CAUTION,WASHER TANK

42

09651-00100

PLATE¤ SAFETY,BEFORE OPERATING

43

205-00-63250

PLATE¤ CAUTION,COLD WEATHER

44

09685-00002

PLATE¤ OPERATING,LOCK SWITCH

45

20G-00-11241

PLATE¤ DATA

|45

20G-00-11240

PLATE¤ DATA

46

203-00-41180

PLATE¤ OPERATING,SYMBOL¤ HOOD OPEN

47

20G-00-11490

PLATE,CAUTION

48

20G-06-12380

PLATE¤ OPERATING

49

09641-00161

PLATE¤ INSTRUCTION,AIR CLEANER
