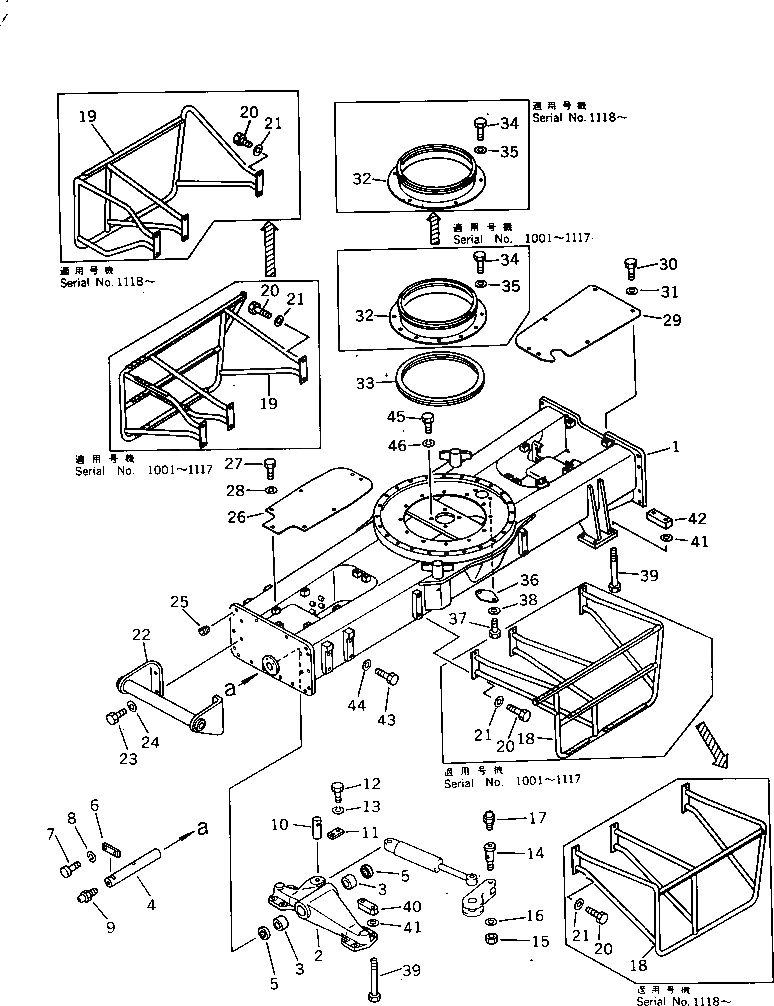

Запчасти Komatsu PW150-1 ШАССИ (КОМПОНЕНТЫ (ОБСЛУЖИВ-Е)) (ДЛЯ ЯПОН.)(№-.) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

1

20G-47-19110

FRAME

|2

20G-47-00011

BRACKET ASS'Y

|2

20G-47-00010

BRACKET ASS'Y

2

BRACKET

|2

BRACKET

3

20G-47-12130

BUSHING

4

20G-47-12120

PIN

5

07145-00075

SEAL,DUST

6

04082-00514

LOCK

7

01010-51435

BOLT

8

01602-21442

WASHER,SPRING

9

07020-00000

FITTING,GREASE

10

20G-47-12140

PIN

11

04082-00212

LOCK

12

01010-51225

BOLT

13

01602-21236

WASHER,SPRING

14

20G-47-12151

PIN

|14

20G-47-12150

PIN

15

01598-02425

NUT

|15

07165-13336

NUT

16

01643-32460

WASHER

|16

01643-33380

WASHER

17

07020-00000

FITTING,GREASE

18

20D-47-41180

STEP

|18

20G-47-11332

STEP

19

20D-47-41190

STEP

|19

20G-47-11391

STEP

20

01010-51230

BOLT

21

01643-31232

WASHER

22

20G-47-11350

BRACKET

23

01010-52045

BOLT

24

01643-32060

WASHER

25

07049-02025

PLUG

26

20G-47-11361

COVER

27

01010-51025

BOLT

28

01643-31032

WASHER

29

20G-47-11371

COVER

30

01010-51025

BOLT

31

01643-31032

WASHER

32

20G-47-11411

COVER

|32

20G-47-11410

COVER

33

21K-30-22130

SEAL

|33

20G-47-11381

SEAL

34

01010-51225

BOLT

|34

01010-51225

BOLT

35

01643-31232

WASHER

|35

01643-31232

WASHER

36

205-30-67650

COVER

37

01010-51220

BOLT

38

01643-31232

WASHER

39

20G-47-11210

BOLT

40

20G-47-11220

SEAT

41

01643-32060

WASHER

42

20G-47-11230

SEAT

43

01010-52490

BOLT

44

01643-32460

WASHER

45

01010-51230

BOLT

46

01602-21236

WASHER,SPRING
