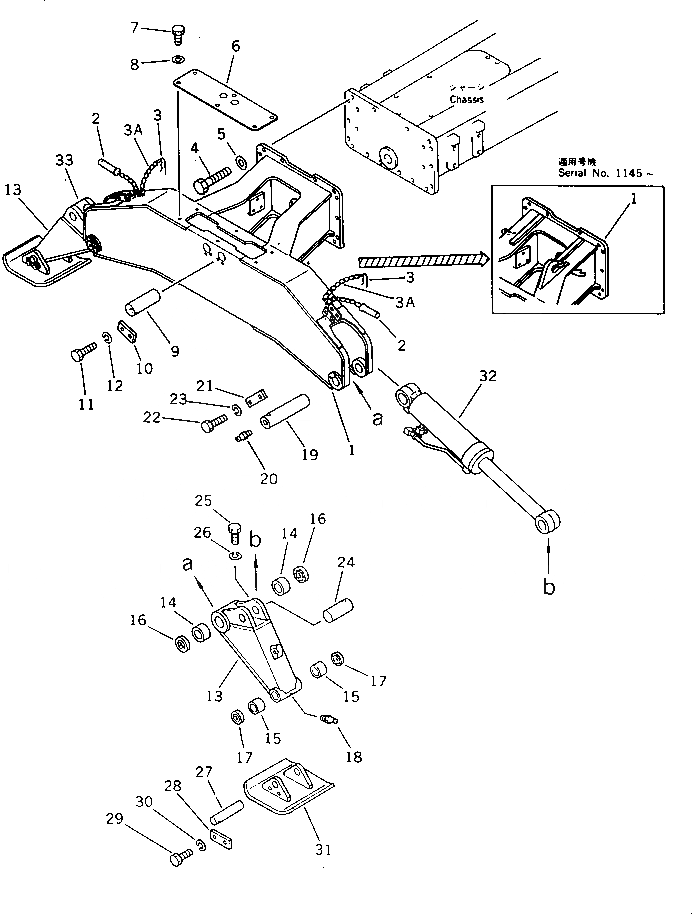

Запчасти Komatsu PW150-1 ПЕРЕДН. ОПОРА ОПЦИОННЫЕ КОМПОНЕНТЫ

1

20G-911-1111

FRAME

|1

20G-911-1110

FRAME

2

430-43-26520

PIN (WELDED)

3

04052-01664

PIN,SNAP (WELDED)

3A

130-75-17160

CHAIN (WELDED)

4

01010-52455

BOLT

|4

01010-52050

BOLT

5

01643-32460

WASHER

|5

01643-32060

WASHER

6

20G-47-13191

COVER

7

01010-51020

BOLT

8

01643-31032

WASHER

9

20G-47-13140

PIN

10

04082-00514

LOCK

11

01010-51435

BOLT

12

01602-21442

WASHER,SPRING

|13

20G-47-00040

FRAME ASS'Y

13

FRAME

14

21K-70-11210

BUSHING

15

20G-47-13180

BUSHING

16

07145-00070

SEAL,DUST

17

07145-00045

SEAL,DUST

18

07020-00900

FITTING,GREASE

19

20G-47-13161

PIN

20

07020-00000

FITTING,GREASE

21

04082-00514

LOCK

22

01010-51435

BOLT

23

01602-21442

WASHER,SPRING

24

20G-47-13150

PIN

25

01011-51220

BOLT

26

01602-21236

WASHER,SPRING

27

20G-47-13170

PIN

28

04082-00212

LOCK

29

01010-51225

BOLT

30

01602-21236

WASHER,SPRING

31

20G-47-19390

BRACKET

32

20G-63-12101

CYLINDER ASS'Y,L.H.

|32

20G-63-12100

CYLINDER ASS'Y,L.H.

33

20G-63-12201

CYLINDER ASS'Y,R.H.

|33

20G-63-12200

CYLINDER ASS'Y,R.H.
