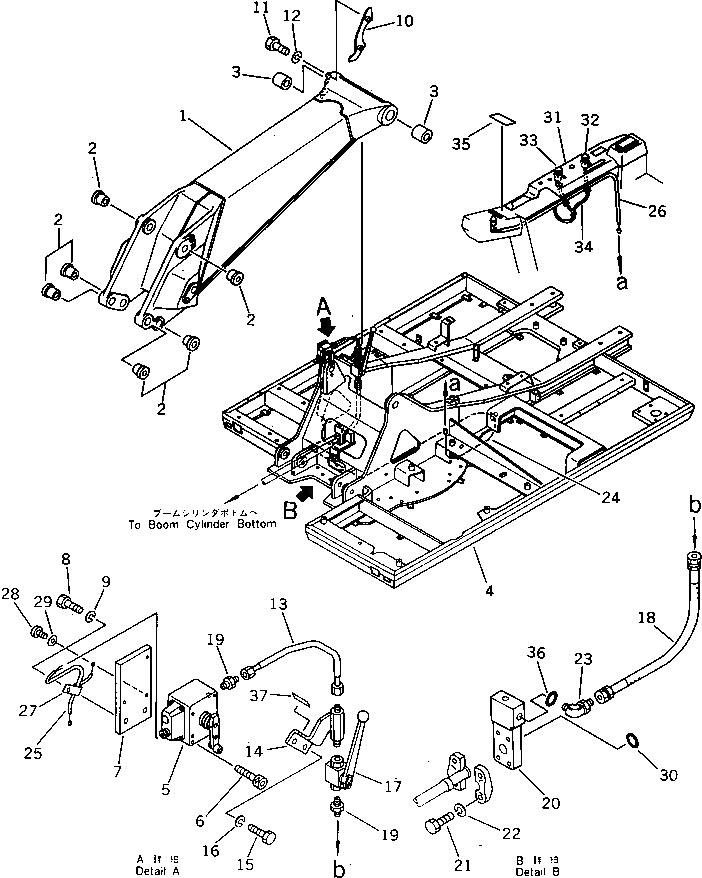

Запчасти Komatsu PW150-1 ПЕРЕГРУЗК. WARNING DIVICE ОПЦИОННЫЕ КОМПОНЕНТЫ

|1

20G-70-00012

BOOM ASS'Y

1

BOOM,FOOT

2

20G-70-11270

BUSHING

3

20G-70-11380

BUSHING

4

20G-46-19110

FRAME

5

205-62-69240

SWITCH

6

01252-40616

BOLT

7

20G-62-19150

BRACKET

8

01010-51240

BOLT

9

01602-21236

WASHER,SPRING

10

20G-62-19160

CAM

11

01010-51025

BOLT

12

01602-21030

WASHER,SPRING

13

20G-62-19120

TUBE

14

20G-62-19130

NIPPLE

15

01010-51020

BOLT

16

01602-21030

WASHER,SPRING

17

205-62-69250

VALVE

18

07096-00207

HOSE

19

07238-10210

CONNECTOR

20

20G-62-19140

FLANGE

21

01010-50850

BOLT

22

01602-20825

WASHER,SPRING

23

07235-10210

ELBOW

24

20G-06-19610

HARNESS,WIRING

25

20G-06-19620

HARNESS,WIRING

26

20G-06-19650

HARNESS,WIRING

27

08036-10610

CLIP

28

01220-30610

SCREW

29

01641-20608

WASHER

30

07000-13025

O-RING

31

20G-54-19410

BOX,R.H.

32

20G-06-19810

LAMP

33

20G-06-19380

LAMP

34

20G-06-14510

HARNESS,WIRING

35

20G-06-19660

PLATE

36

07002-11423

O-RING

37

20G-00-12330

PLATE
