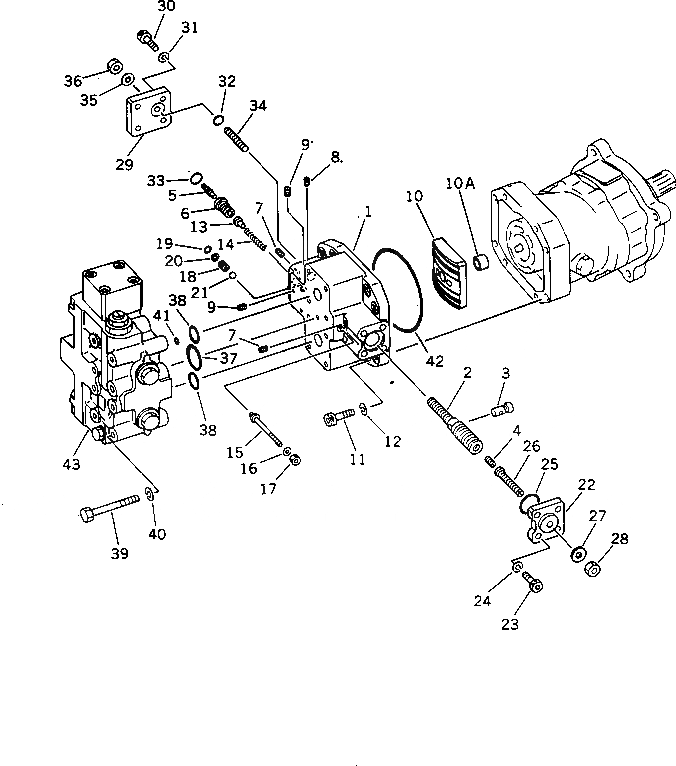

Запчасти Komatsu PW150-1 МОТОР ХОДА (/) ХОД И ТРАНСМИССИЯ

|1

706-86-00201

TRAVEL MOTOR ASS'Y,(KMV105DT)

|1

706-86-40103

MOTOR ASS'Y

|1

706-86-40102

MOTOR ASS'Y

|1

706-86-40101

MOTOR ASS'Y

|1

706-86-00020

END COVER ASS'Y

|1

706-86-00120

END COVER ASS'Y

1

COVER,END

|1

COVER,END

2

PISTON

|2

PISTON

3

PIN

|3

PIN

4

SCREW

|4

SCREW

5

SPOOL

6

SLEEVE

|6

SLEEVE

7

PLUG

8

706-86-51180

PLUG

9

706-86-51170

PLUG

10

706-86-41841

VALVE PLATE

10A

706-86-41070

BUSHING

11

706-86-51210

BOLT

12

01602-21236

WASHER,SPRING

13

706-86-50121

SEAT,SPRING

|13

706-86-50120

SEAT,SPRING

14

706-86-50130

SPRING

15

706-86-50140

SCREW

16

706-86-50150

WASHER,SEAL

17

01580-10605

NUT

18

706-86-51160

PLUG

19

07000-11008

O-RING

20

07001-01008

RING,BACK-UP

21

04260-00793

BALL

22

706-86-51080

COVER

23

706-86-50170

BOLT

24

01602-21236

WASHER,SPRING

25

07000-13032

O-RING

26

706-86-50070

SCREW

27

706-86-50050

WASHER,SEAL

28

01580-11210

NUT

29

706-86-51060

COVER

30

706-86-50170

BOLT

31

01602-21236

WASHER,SPRING

32

07000-13025

O-RING

33

07000-13022

O-RING

34

706-86-50040

SCREW

35

706-86-50050

WASHER,SEAL

36

01580-11210

NUT

37

07000-03045

O-RING

38

07000-13032

O-RING

39

01011-51225

BOLT

40

01602-21236

WASHER,SPRING

41

07000-12010

O-RING

42

708-25-12340

O-RING

|42

706-86-41370

O-RING

43

706-76-71301

BRAKE VALVE ASS'Y
