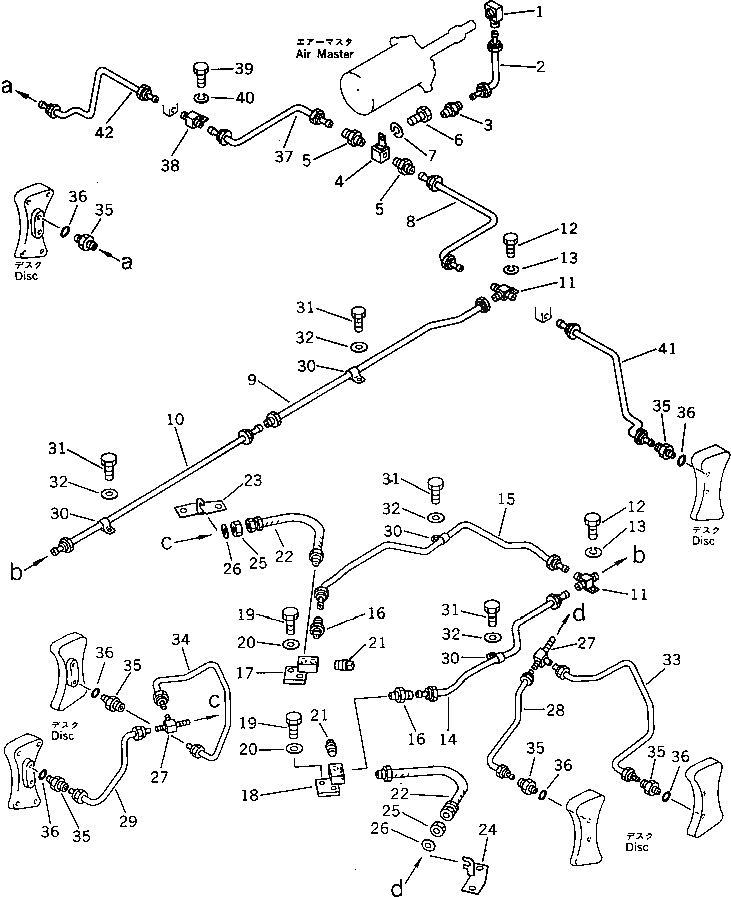

Запчасти Komatsu PW150-1 НИЖН. ВОЗДУХОВОД (/) (ВОЗД. МАЧТАER - ТОРМОЗ.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

1

20D-68-12980

CONNECTOR

2

20G-68-12561

TUBE

3

07213-51013

CONNECTOR

4

20G-68-12591

BLOCK

5

07213-50710

CONNECTOR

6

01010-51020

BOLT

7

01602-21030

WASHER,SPRING

8

20G-68-12571

TUBE

9

20G-68-12660

TUBE

10

20G-68-12611

TUBE

11

20G-68-12670

TEE

12

01010-50820

BOLT

13

01602-20825

WASHER,SPRING

14

20G-68-12631

TUBE

15

20G-68-12621

TUBE

16

07213-50710

CONNECTOR

17

20G-68-12880

BLOCK

18

20G-68-12870

BLOCK

19

01010-51020

BOLT

20

01643-31032

WASHER

21

07042-00108

PLUG

22

20G-68-12710

HOSE

23

20G-68-12740

BRACKET,R.H.

24

20G-68-12751

BRACKET,L.H.

|24

20G-68-12750

BRACKET,L.H.

25

01583-11408

NUT

26

01641-21423

WASHER

27

20G-68-12970

TEE

28

20G-68-12980

TUBE,L.H.

29

20G-68-12990

TUBE,R.H.

30

20D-68-12930

CLIP

31

01010-51020

BOLT

32

01643-31032

WASHER

33

20G-68-12733

TUBE,L.H.

|33

20G-68-12732

TUBE,L.H.

34

20G-68-12722

TUBE,R.H.

35

20G-68-12941

NIPPLE

36

20G-68-12950

O-RING

37

20G-68-12581

TUBE

38

20G-68-12891

NIPPLE

39

01010-50820

BOLT

40

01602-20825

WASHER,SPRING

41

20G-68-12791

TUBE,L.H.

42

20G-68-12781

TUBE,R.H.
