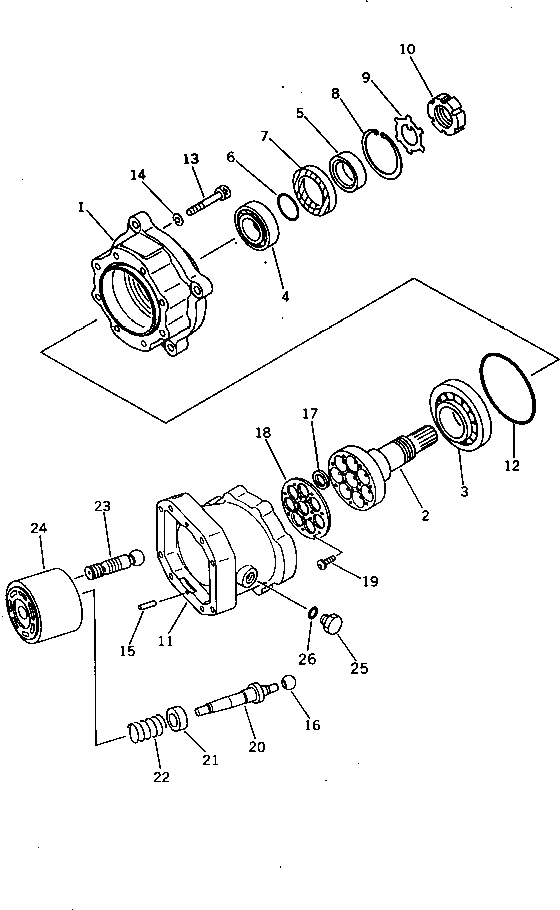

Запчасти Komatsu PW150-1 МОТОР ХОДА (/) ХОД И ТРАНСМИССИЯ

|1

706-86-00201

TRAVEL MOTOR ASS'Y,(KMV105DT)

|1

706-86-40103

MOTOR ASS'Y

|1

706-86-40102

MOTOR ASS'Y

|1

706-86-40101

MOTOR ASS'Y

1

706-76-40941

COVER,FRONT

2

706-86-41860

SHAFT,DRIVE

3

706-76-40350

BEARING

4

706-76-40890

BEARING

5

706-76-40910

RING

6

07000-03045

O-RING

7

706-76-40920

SEAL,OIL

8

04065-09030

RING,SNAP

9

01658-24523

WASHER

10

01530-04512

NUT,LOCK

11

706-86-41811

CASE,PUMP

12

07000-02140

O-RING

13

706-76-40330

BOLT

14

01602-21236

WASHER,SPRING

15

04020-00820

PIN,DOWEL

16

706-76-41220

BALL,CENTER

17

706-76-40251

HOLDER

18

706-76-40263

RETAINER

19

706-75-41271

SCREW

20

706-86-41080

SHAFT,CENTER

21

706-86-41130

RING,CENTER

22

706-86-40110

SPRING

23

706-76-40163

PISTON ASS'Y

24

706-86-41090

BLOCK,CYLINDER

25

07040-12012

PLUG

26

07002-02034

O-RING
