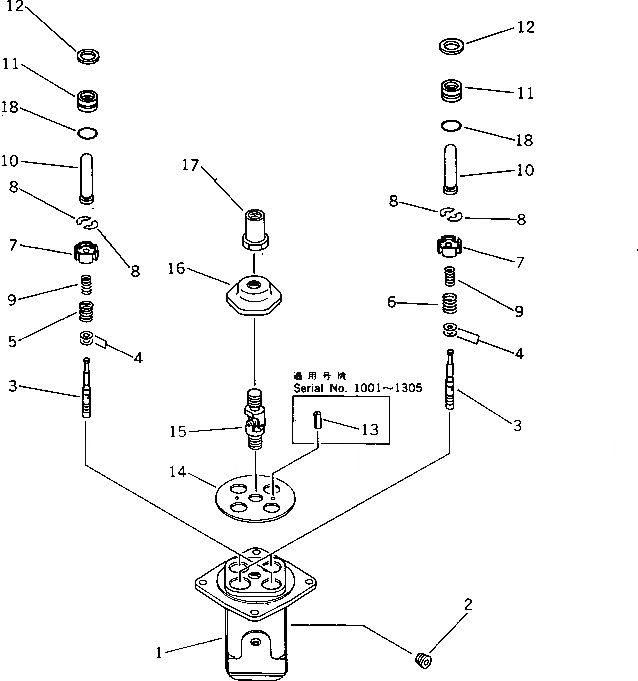

Запчасти Komatsu PW150-1 ПРОПОРЦИОНАЛЬН. PRESSURE УПРАВЛЯЮЩ. КЛАПАН УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

702-16-51001

VALVE ASS'Y

|1

702-16-51000

VALVE ASS'Y

1

BODY

2

07043-50312

PLUG

3

VALVE

4

702-16-51140

SHIM¤ 0.30MM

5

702-16-51180

SPRING

6

702-16-51190

SPRING

7

702-16-51161

RETAINER

|7

702-16-51160

RETAINER

8

702-16-51170

COLLAR

9

702-16-51150

SPRING

10

702-16-51210

PISTON

11

702-16-51220

COLLAR

12

702-16-51270

SEAL

13

04025-00312

PIN

14

702-16-51231

PLATE

|14

702-16-51230

PLATE

15

702-16-51240

JOINT

16

702-16-51250

DISK

17

702-16-51260

NUT

18

07000-02020

O-RING
